Component Parts Location

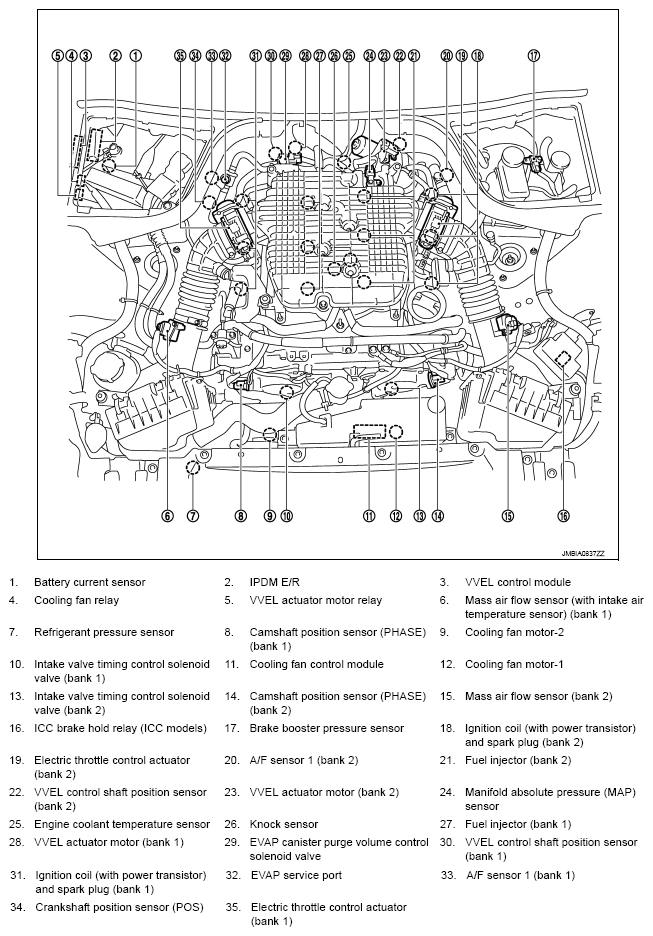

Fig 1: Automatic Speed Control Device Component Parts Location (1 Of 20)

G09465221

Courtesy of NISSAN NORTH AMERICA, INC.

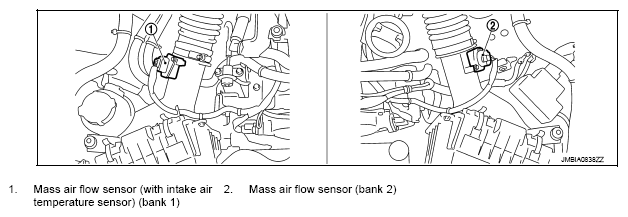

Fig 2: Automatic Speed Control Device Component Parts Location (2 Of 20)

G09465222

Courtesy of NISSAN NORTH AMERICA, INC.

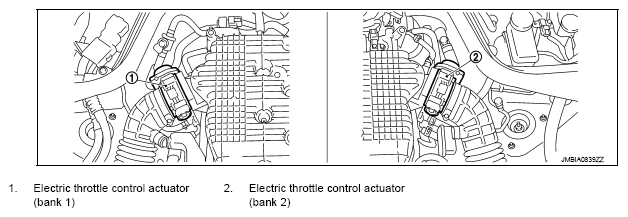

Fig 3: Automatic Speed Control Device Component Parts Location (3 Of 20)

G09465223

Courtesy of NISSAN NORTH AMERICA, INC.

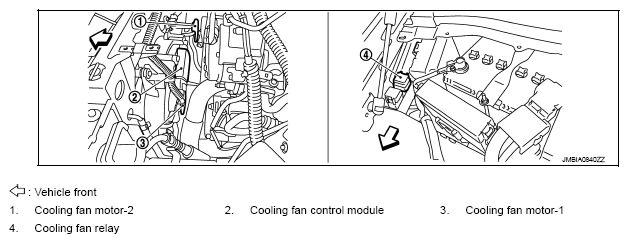

Fig 4: Automatic Speed Control Device Component Parts Location (4 Of 20)

G09465224

Courtesy of NISSAN NORTH AMERICA, INC.

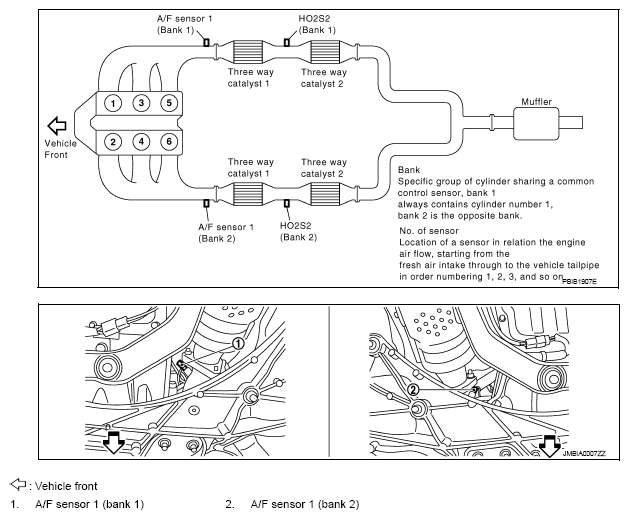

Fig 5: Automatic Speed Control Device Component Parts Location (5 Of 20)

G09465225

Courtesy of NISSAN NORTH AMERICA, INC.

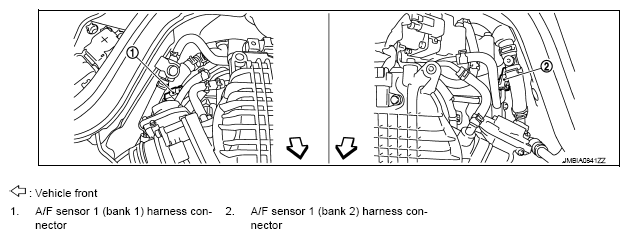

Fig 6: Automatic Speed Control Device Component Parts Location (6 Of 20)

G09465226

Courtesy of NISSAN NORTH AMERICA, INC.

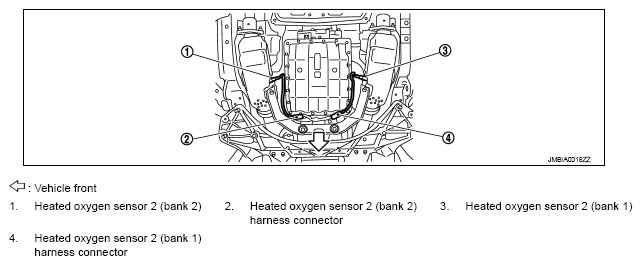

Fig 7: Automatic Speed Control Device Component Parts Location (7 Of 20)

G09465227

Courtesy of NISSAN NORTH AMERICA, INC.

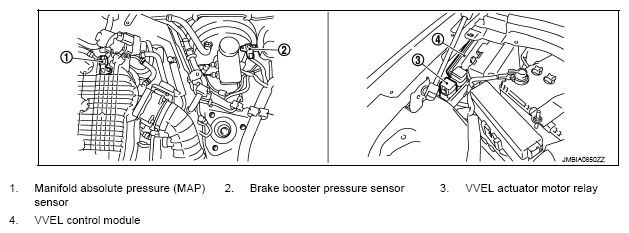

Fig 8: Automatic Speed Control Device Component Parts Location (8 Of 20)

G09465228

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Speed Control Device Component Parts Location (9 Of 20)

G09465229

Courtesy of NISSAN NORTH AMERICA, INC.

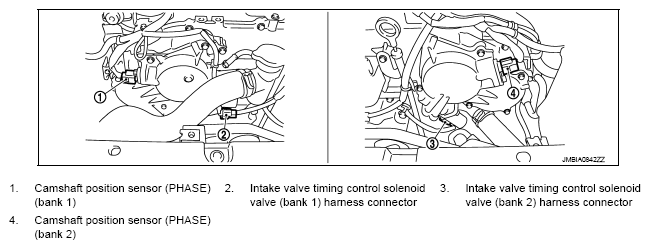

Fig 10: Automatic Speed Control Device Component Parts Location (10 Of 20)

G09465230

Courtesy of NISSAN NORTH AMERICA, INC.

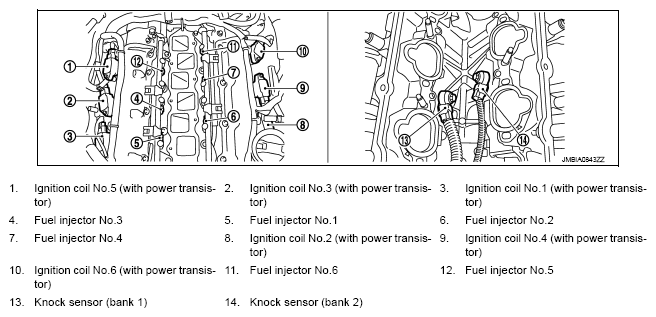

Fig 11: Automatic Speed Control Device Component Parts Location (11 Of 20)

G09465231

Courtesy of NISSAN NORTH AMERICA, INC.

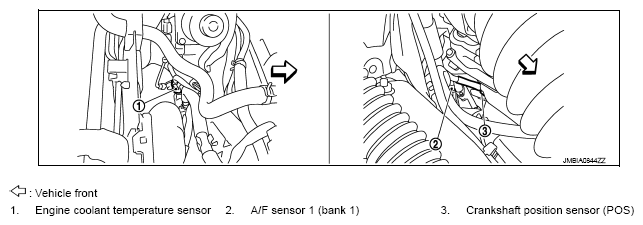

Fig 12: Automatic Speed Control Device Component Parts Location (12 Of 20)

G09465232

Courtesy of NISSAN NORTH AMERICA, INC.

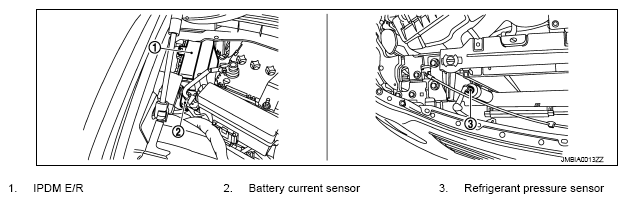

Fig 13: Automatic Speed Control Device Component Parts Location (13 Of 20)

G09465233

Courtesy of NISSAN NORTH AMERICA, INC.

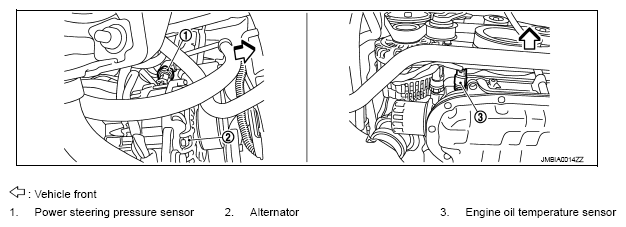

Fig 14: Automatic Speed Control Device Component Parts Location (14 Of 20)

G09465234

Courtesy of NISSAN NORTH AMERICA, INC.

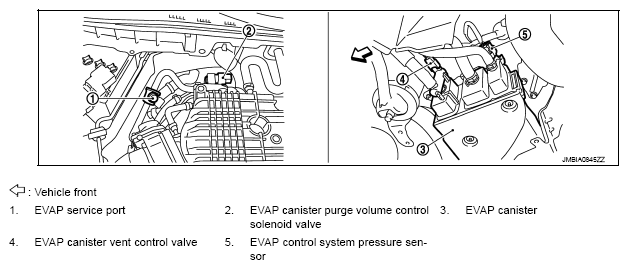

Fig 15: Automatic Speed Control Device Component Parts Location (15 Of 20)

G09465235

Courtesy of NISSAN NORTH AMERICA, INC.

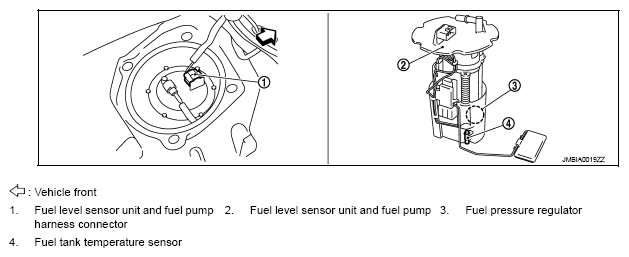

Fig 16: Automatic Speed Control Device Component Parts Location (16 Of 20)

G09465236

Courtesy of NISSAN NORTH AMERICA, INC.

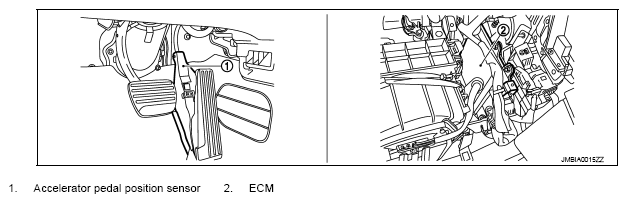

Fig 17: Automatic Speed Control Device Component Parts Location (17 Of 20)

G09465237

Courtesy of NISSAN NORTH AMERICA, INC.

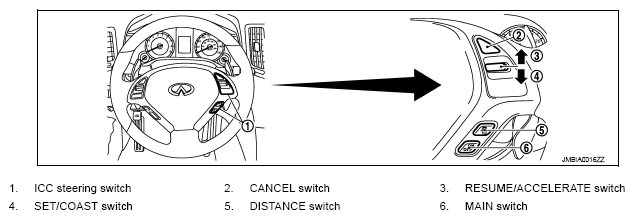

Fig 18: Automatic Speed Control Device Component Parts Location (18 Of 20)

G09465238

Courtesy of NISSAN NORTH AMERICA, INC.

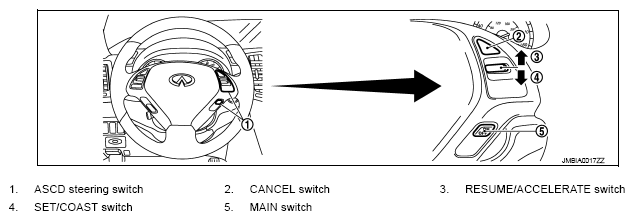

Fig 19: Automatic Speed Control Device Component Parts Location (19 Of 20)

G09465239

Courtesy of NISSAN NORTH AMERICA, INC.

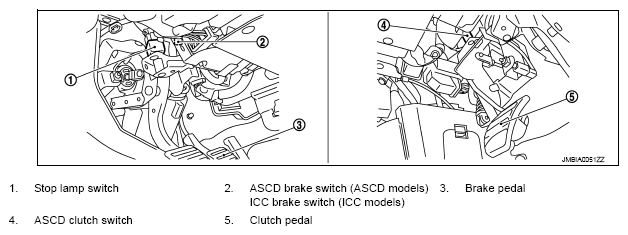

Fig 20: Automatic Speed Control Device Component Parts Location (20 Of 20)

G09465240

Courtesy of NISSAN NORTH AMERICA, INC.
