Component Parts Location

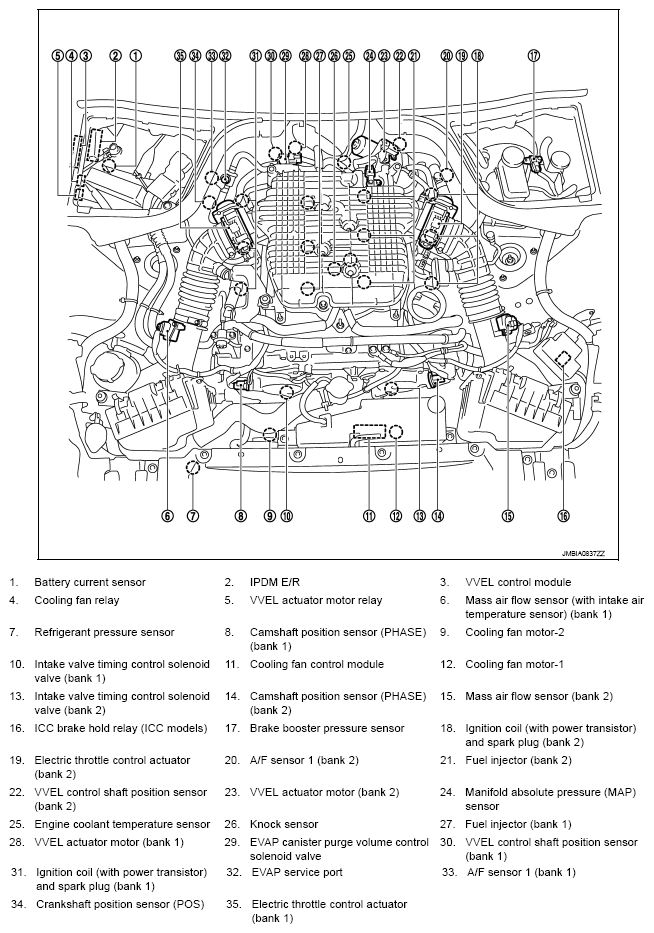

Fig 1: Cooling Fan Control Component Parts Location (1 Of 20)

G09465242

Courtesy of NISSAN NORTH AMERICA, INC.

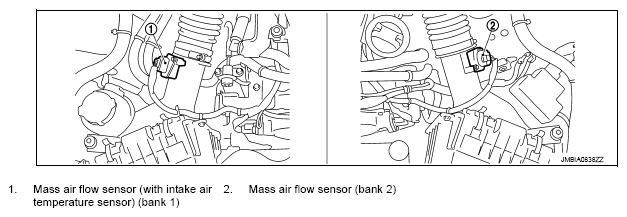

Fig 2: Cooling Fan Control Component Parts Location (2 Of 20)

G09465243

Courtesy of NISSAN NORTH AMERICA, INC.

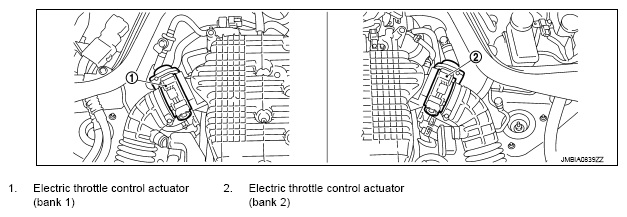

Fig 3: Cooling Fan Control Component Parts Location (3 Of 20)

G09465244

Courtesy of NISSAN NORTH AMERICA, INC.

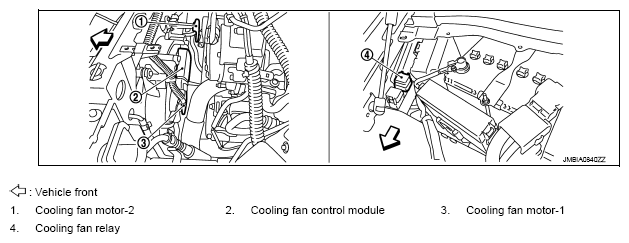

Fig 4: Cooling Fan Control Component Parts Location (4 Of 20)

G09465245

Courtesy of NISSAN NORTH AMERICA, INC.

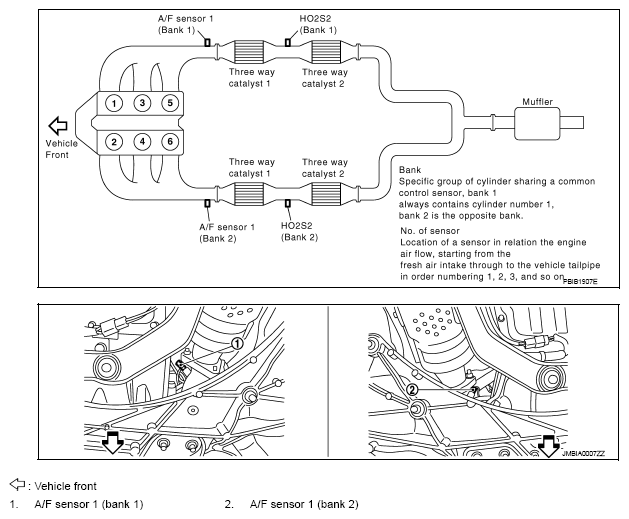

Fig 5: Cooling Fan Control Component Parts Location (5 Of 20)

G09465246

Courtesy of NISSAN NORTH AMERICA, INC.

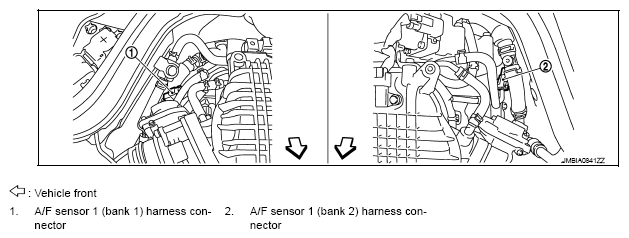

Fig 6: Cooling Fan Control Component Parts Location (6 Of 20)

G09465247

Courtesy of NISSAN NORTH AMERICA, INC.

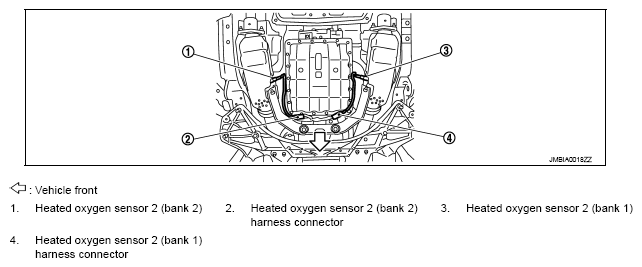

Fig 7: Cooling Fan Control Component Parts Location (7 Of 20)

G09465248

Courtesy of NISSAN NORTH AMERICA, INC.

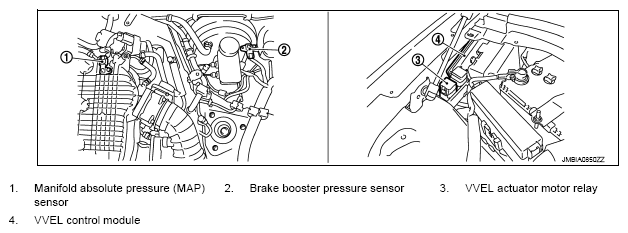

Fig 8: Cooling Fan Control Component Parts Location (8 Of 20)

G09465249

Courtesy of NISSAN NORTH AMERICA, INC.

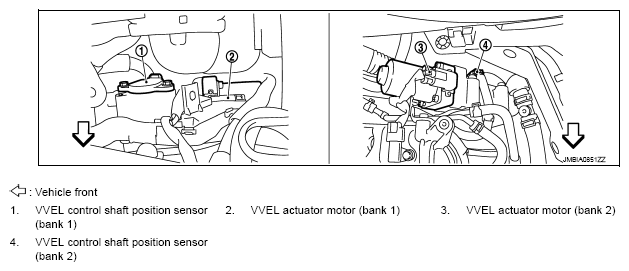

Fig 9: Cooling Fan Control Component Parts Location (9 Of 20)

G09465250

Courtesy of NISSAN NORTH AMERICA, INC.

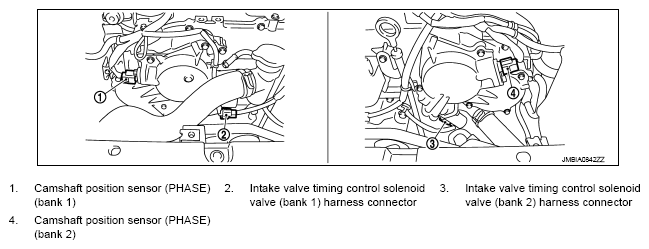

Fig 10: Cooling Fan Control Component Parts Location (10 Of 20)

G09465251

Courtesy of NISSAN NORTH AMERICA, INC.

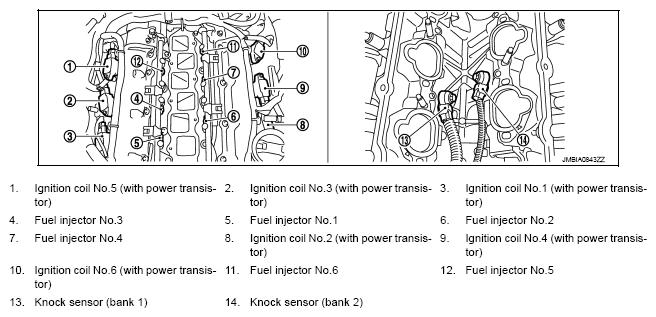

Fig 11: Cooling Fan Control Component Parts Location (11 Of 20)

G09465252

Courtesy of NISSAN NORTH AMERICA, INC.

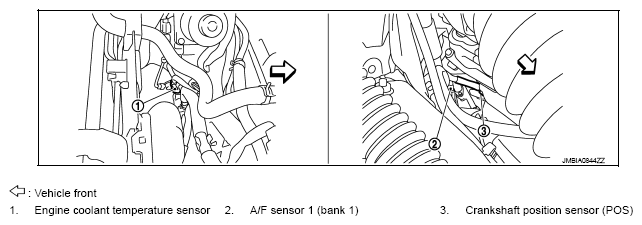

Fig 12: Cooling Fan Control Component Parts Location (12 Of 20)

G09465253

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control Component Parts Location (13 Of 20)

G09465254

Courtesy of NISSAN NORTH AMERICA, INC.

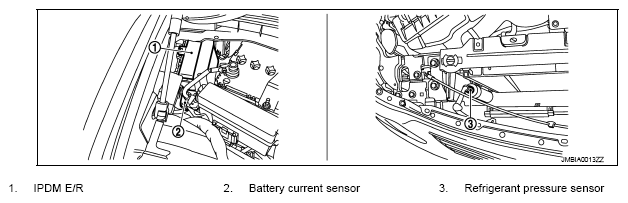

Fig 14: Cooling Fan Control Component Parts Location (14 Of 20)

G09465255

Courtesy of NISSAN NORTH AMERICA, INC.

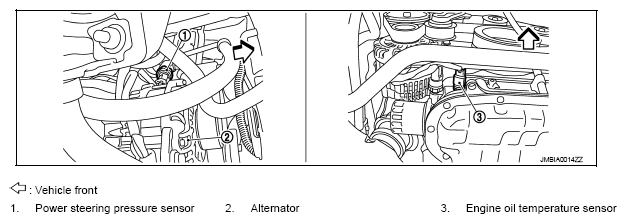

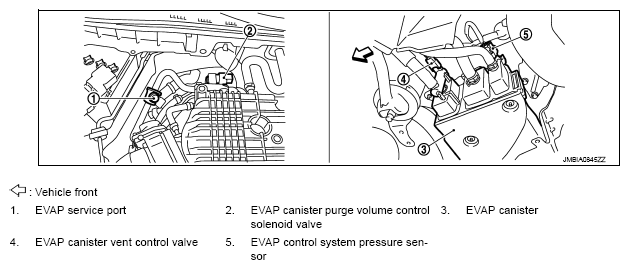

Fig 15: Cooling Fan Control Component Parts Location (15 Of 20)

G09465256

Courtesy of NISSAN NORTH AMERICA, INC.

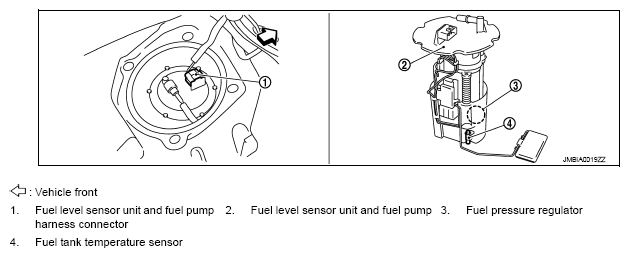

Fig 16: Cooling Fan Control Component Parts Location (16 Of 20)

G09465257

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Cooling Fan Control Component Parts Location (17 Of 20)

G09465258

Courtesy of NISSAN NORTH AMERICA, INC.

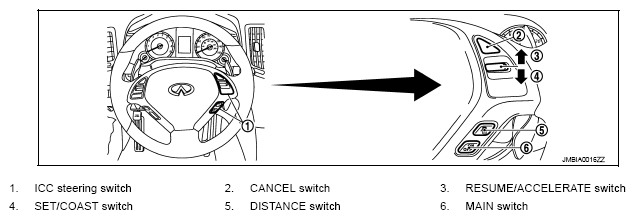

Fig 18: Cooling Fan Control Component Parts Location (18 Of 20)

G09465259

Courtesy of NISSAN NORTH AMERICA, INC.

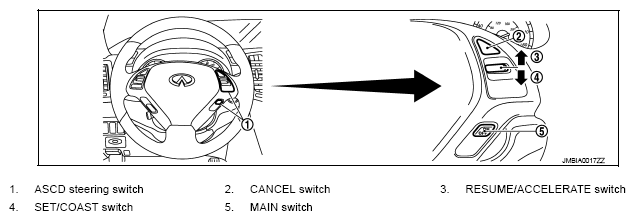

Fig 19: Cooling Fan Control Component Parts Location (19 Of 20)

G09465260

Courtesy of NISSAN NORTH AMERICA, INC.

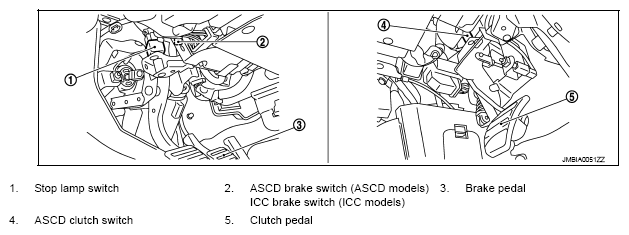

Fig 20: Cooling Fan Control Component Parts Location (20 Of 20)

G09465261

Courtesy of NISSAN NORTH AMERICA, INC.
