Component Parts Location

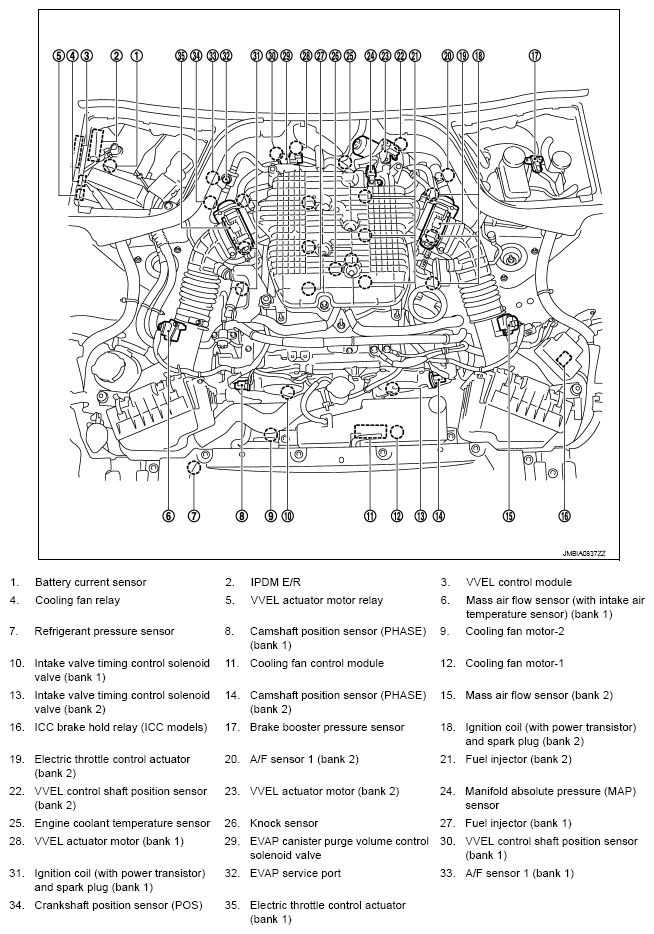

Fig 1: Engine Control System Component Parts Location (1 Of 20)

G09465135

Courtesy of NISSAN NORTH AMERICA, INC.

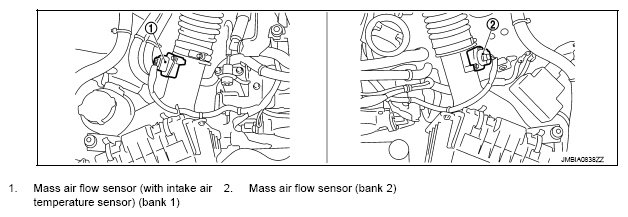

Fig 2: Engine Control System Component Parts Location (2 Of 20)

G09465136

Courtesy of NISSAN NORTH AMERICA, INC.

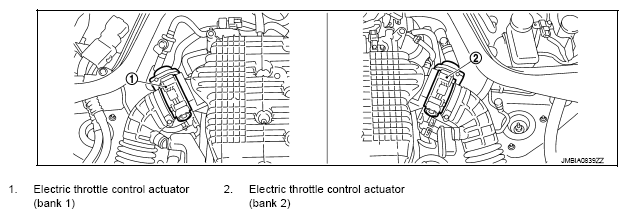

Fig 3: Engine Control System Component Parts Location (3 Of 20)

G09465137

Courtesy of NISSAN NORTH AMERICA, INC.

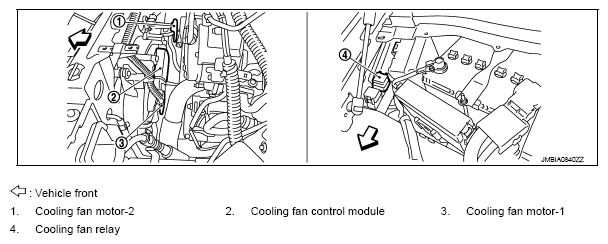

Fig 4: Engine Control System Component Parts Location (4 Of 20)

G09465138

Courtesy of NISSAN NORTH AMERICA, INC.

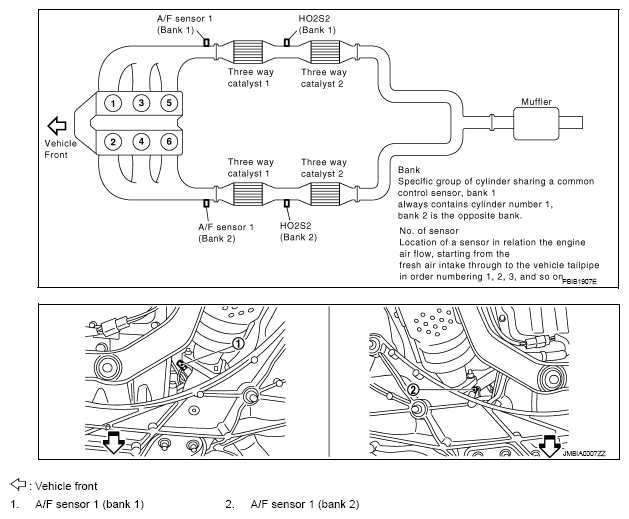

Fig 5: Engine Control System Component Parts Location (5 Of 20)

G09465139

Courtesy of NISSAN NORTH AMERICA, INC.

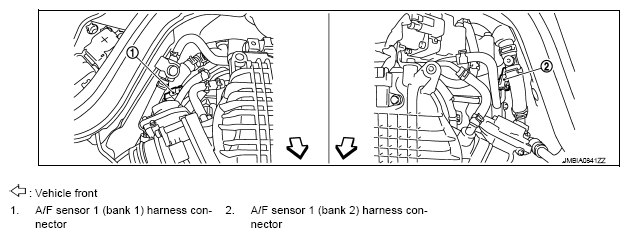

Fig 6: Engine Control System Component Parts Location (6 Of 20)

G09465140

Courtesy of NISSAN NORTH AMERICA, INC.

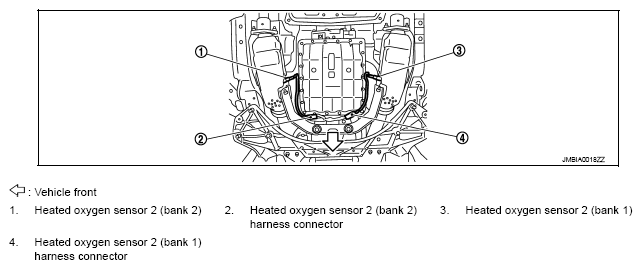

Fig 7: Engine Control System Component Parts Location (7 Of 20)

G09465141

Courtesy of NISSAN NORTH AMERICA, INC.

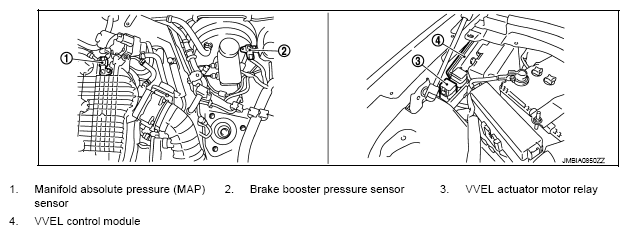

Fig 8: Engine Control System Component Parts Location (8 Of 20)

G09465142

Courtesy of NISSAN NORTH AMERICA, INC.

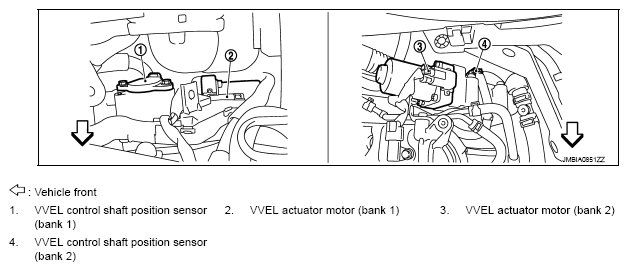

Fig 9: Engine Control System Component Parts Location (9 Of 20)

G09465143

Courtesy of NISSAN NORTH AMERICA, INC.

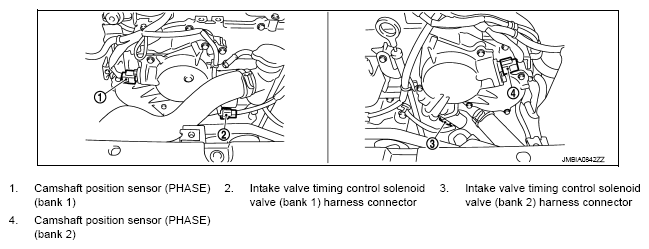

Fig 10: Engine Control System Component Parts Location (10 Of 20)

G09465144

Courtesy of NISSAN NORTH AMERICA, INC.

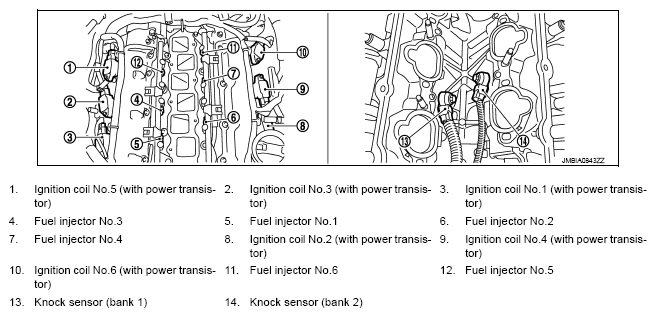

Fig 11: Engine Control System Component Parts Location (11 Of 20)

G09465145

Courtesy of NISSAN NORTH AMERICA, INC.

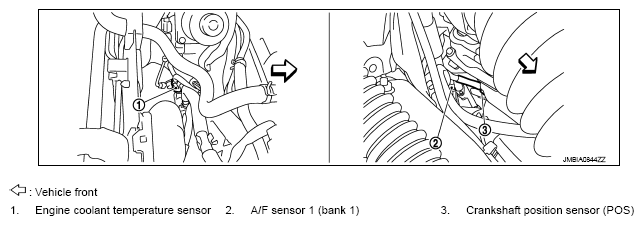

Fig 12: Engine Control System Component Parts Location (12 Of 20)

G09465146

Courtesy of NISSAN NORTH AMERICA, INC.

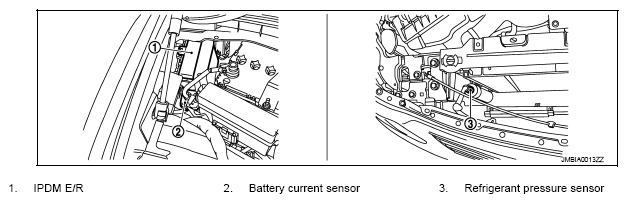

Fig 13: Engine Control System Component Parts Location (13 Of 20)

G09465147

Courtesy of NISSAN NORTH AMERICA, INC.

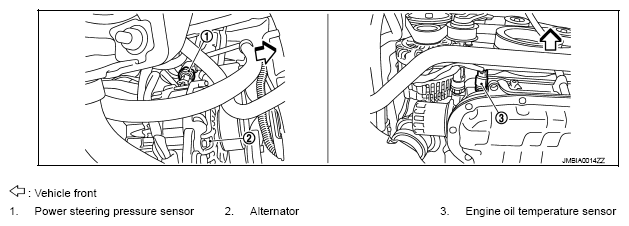

Fig 14: Engine Control System Component Parts Location (14 Of 20)

G09465148

Courtesy of NISSAN NORTH AMERICA, INC.

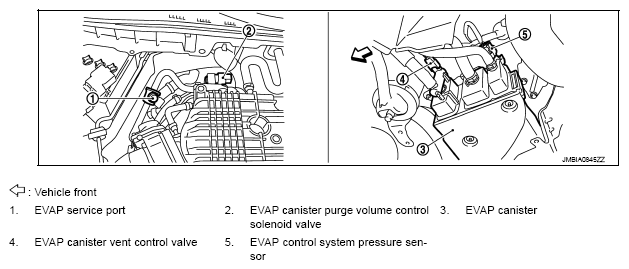

Fig 15: Engine Control System Component Parts Location (15 Of 20)

G09465149

Courtesy of NISSAN NORTH AMERICA, INC.

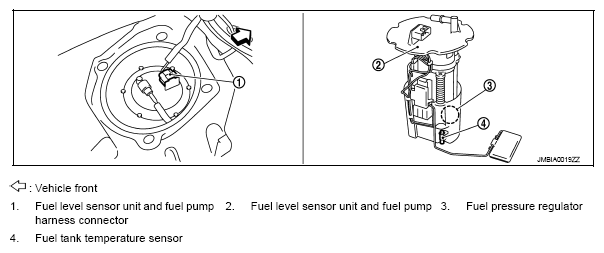

Fig 16: Engine Control System Component Parts Location (16 Of 20)

G09465150

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Engine Control System Component Parts Location (17 Of 20)

G09465151

Courtesy of NISSAN NORTH AMERICA, INC.

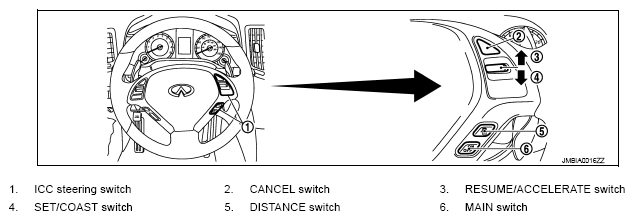

Fig 18: Engine Control System Component Parts Location (18 Of 20)

G09465152

Courtesy of NISSAN NORTH AMERICA, INC.

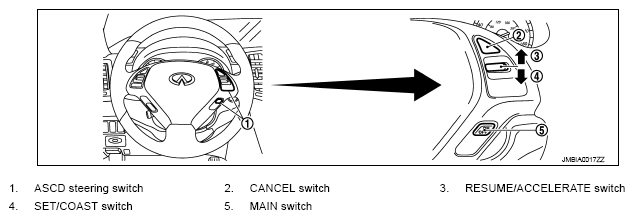

Fig 19: Engine Control System Component Parts Location (19 Of 20)

G09465153

Courtesy of NISSAN NORTH AMERICA, INC.

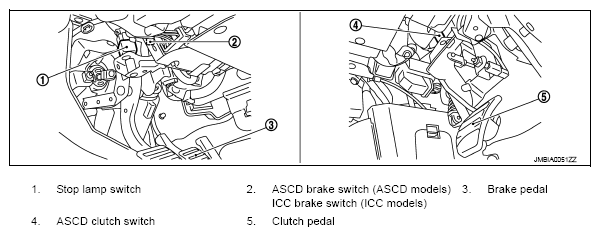

Fig 20: Engine Control System Component Parts Location (20 Of 20)

G09465154

Courtesy of NISSAN NORTH AMERICA, INC.
