Component Parts Location

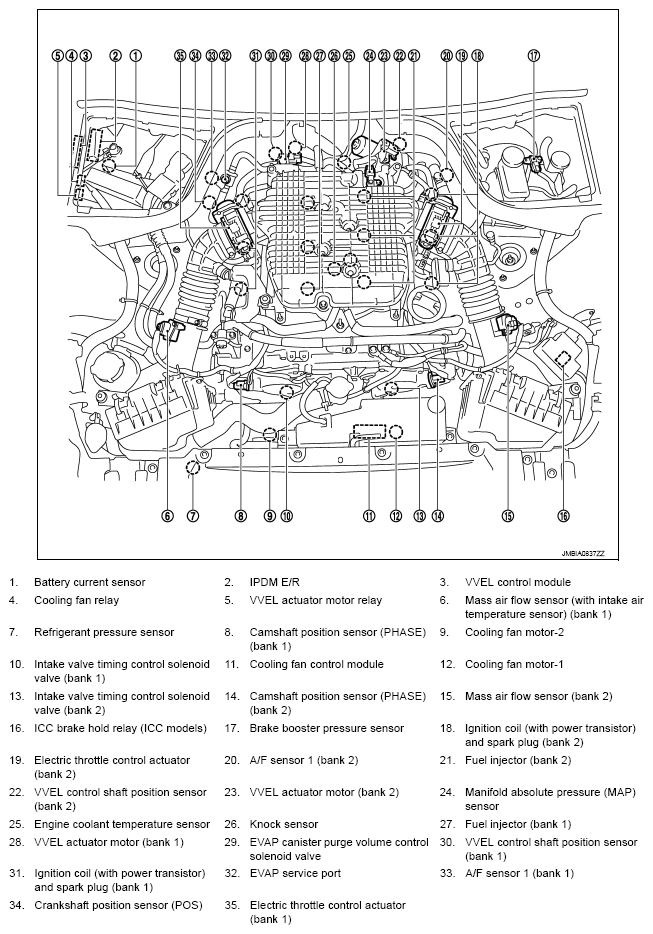

Fig 1: Intake Valve Timing Control System Component Parts Location (1 Of 20)

G09465309

Courtesy of NISSAN NORTH AMERICA, INC.

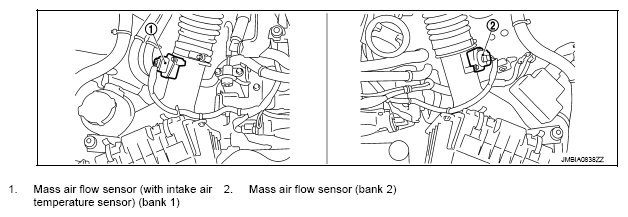

Fig 2: Intake Valve Timing Control System Component Parts Location (2 Of 20)

G09465310

Courtesy of NISSAN NORTH AMERICA, INC.

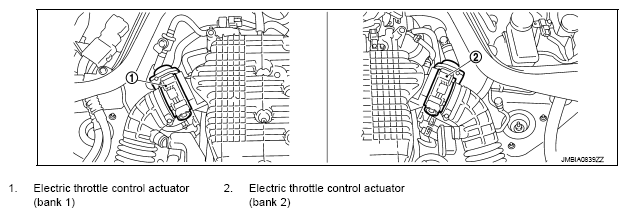

Fig 3: Intake Valve Timing Control System Component Parts Location (3 Of 20)

G09465311

Courtesy of NISSAN NORTH AMERICA, INC.

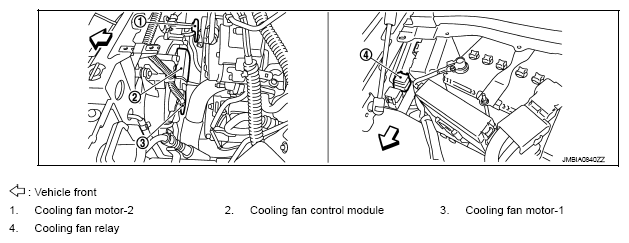

Fig 4: Intake Valve Timing Control System Component Parts Location (4 Of 20)

G09465312

Courtesy of NISSAN NORTH AMERICA, INC.

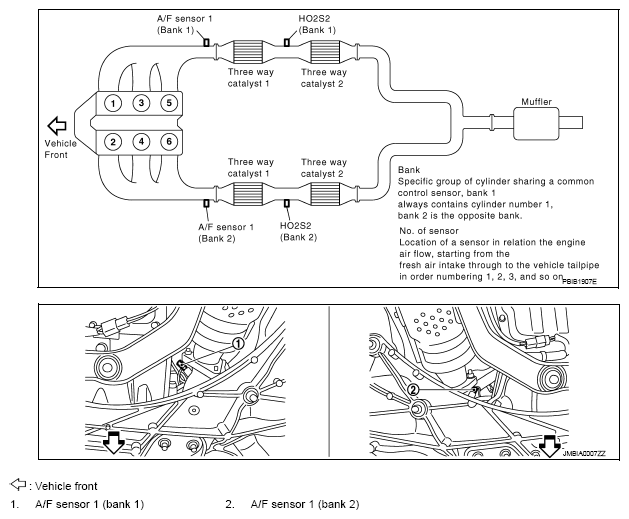

Fig 5: Intake Valve Timing Control System Component Parts Location (5 Of 20)

G09465313

Courtesy of NISSAN NORTH AMERICA, INC.

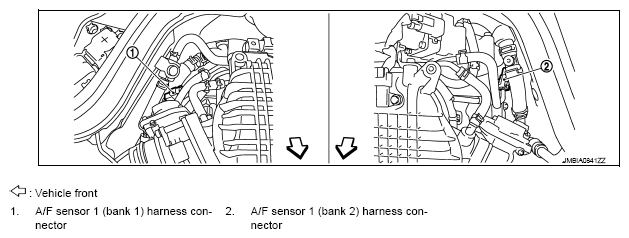

Fig 6: Intake Valve Timing Control System Component Parts Location (6 Of 20)

G09465314

Courtesy of NISSAN NORTH AMERICA, INC.

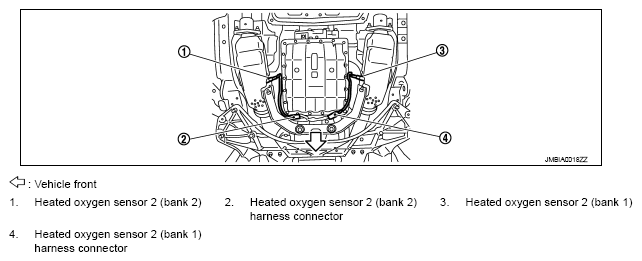

Fig 7: Intake Valve Timing Control System Component Parts Location (7 Of 20)

G09465315

Courtesy of NISSAN NORTH AMERICA, INC.

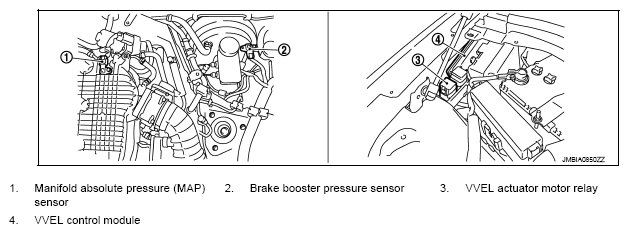

Fig 8: Intake Valve Timing Control System Component Parts Location (8 Of 20)

G09465316

Courtesy of NISSAN NORTH AMERICA, INC.

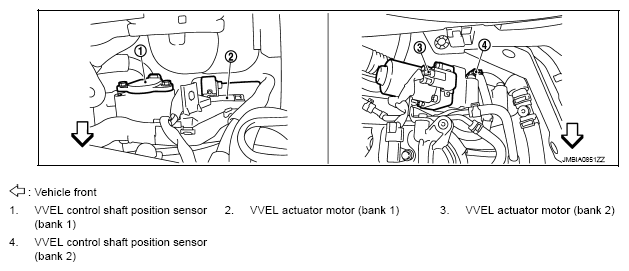

Fig 9: Intake Valve Timing Control System Component Parts Location (9 Of 20)

G09465317

Courtesy of NISSAN NORTH AMERICA, INC.

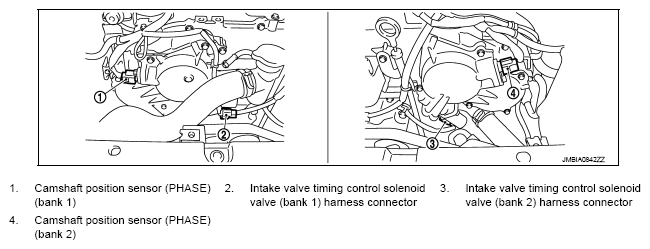

Fig 10: Intake Valve Timing Control System Component Parts Location (10 Of 20)

G09465318

Courtesy of NISSAN NORTH AMERICA, INC.

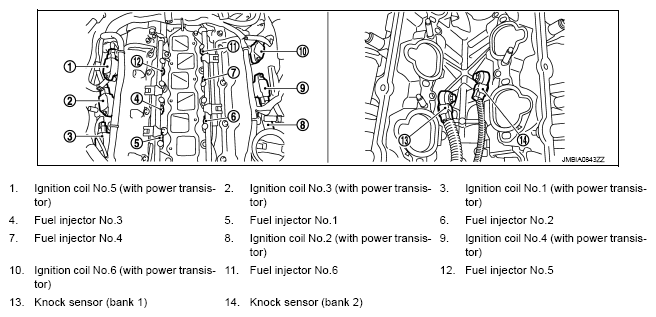

Fig 11: Intake Valve Timing Control System Component Parts Location (11 Of 20)

G09465319

Courtesy of NISSAN NORTH AMERICA, INC.

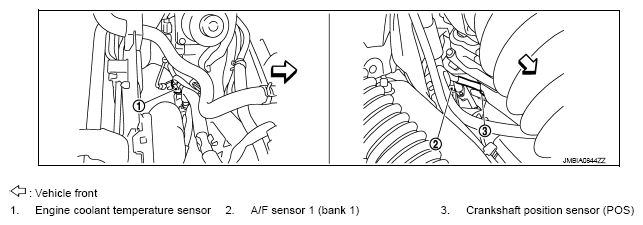

Fig 12: Intake Valve Timing Control System Component Parts Location (12 Of 20)

G09465320

Courtesy of NISSAN NORTH AMERICA, INC.

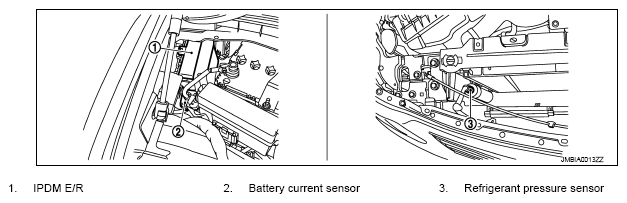

Fig 13: Intake Valve Timing Control System Component Parts Location (13 Of 20)

G09465321

Courtesy of NISSAN NORTH AMERICA, INC.

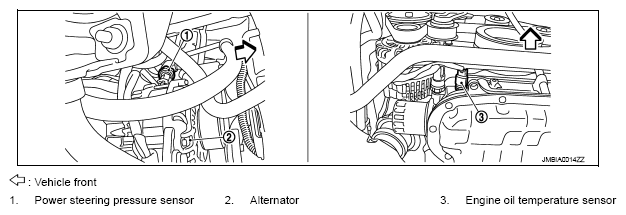

Fig 14: Intake Valve Timing Control System Component Parts Location (14 Of 20)

G09465322

Courtesy of NISSAN NORTH AMERICA, INC.

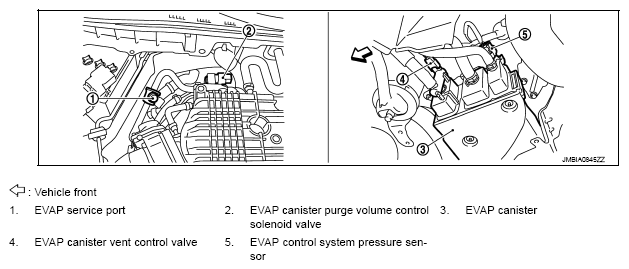

Fig 15: Intake Valve Timing Control System Component Parts Location (15 Of 20)

G09465323

Courtesy of NISSAN NORTH AMERICA, INC.

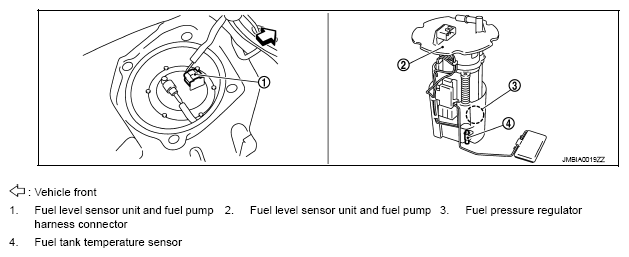

Fig 16: Intake Valve Timing Control System Component Parts Location (16 Of 20)

G09465324

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Intake Valve Timing Control System Component Parts Location (17 Of 20)

G09465325

Courtesy of NISSAN NORTH AMERICA, INC.

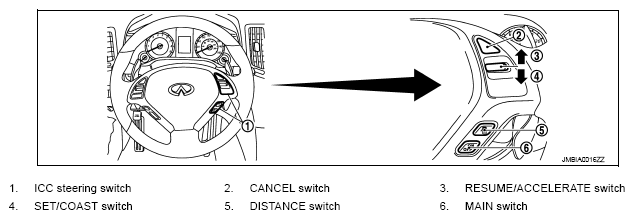

Fig 18: Intake Valve Timing Control System Component Parts Location (18 Of 20)

G09465326

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intake Valve Timing Control System Component Parts Location (19 Of 20)

G09465327

Courtesy of NISSAN NORTH AMERICA, INC.

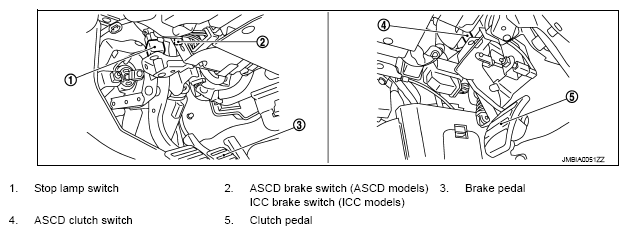

Fig 20: Intake Valve Timing Control System Component Parts Location (20 Of 20)

G09465328

Courtesy of NISSAN NORTH AMERICA, INC.
