Component Parts Location

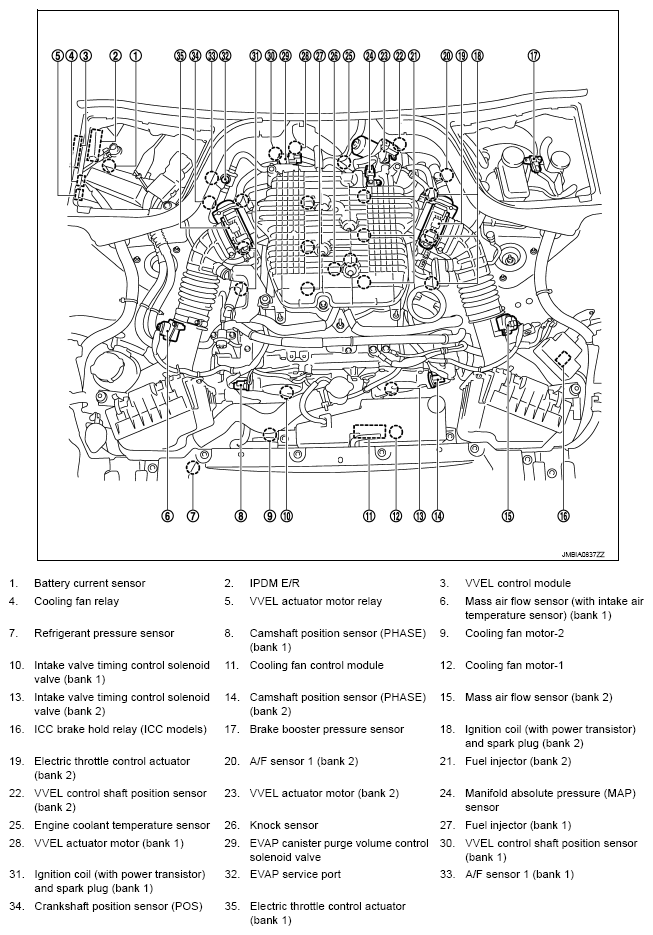

Fig 1: VVEL System Component Parts Location (1 Of 20)

G09465331

Courtesy of NISSAN NORTH AMERICA, INC.

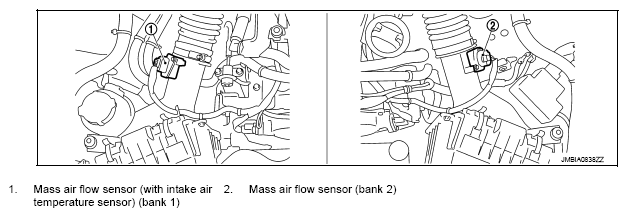

Fig 2: VVEL System Component Parts Location (2 Of 20)

G09465332

Courtesy of NISSAN NORTH AMERICA, INC.

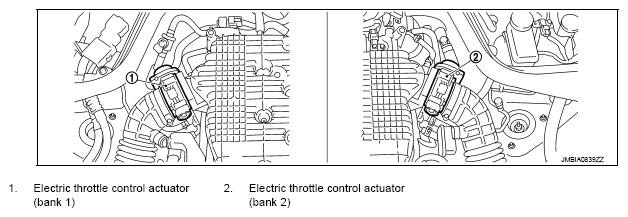

Fig 3: VVEL System Component Parts Location (3 Of 20)

G09465333

Courtesy of NISSAN NORTH AMERICA, INC.

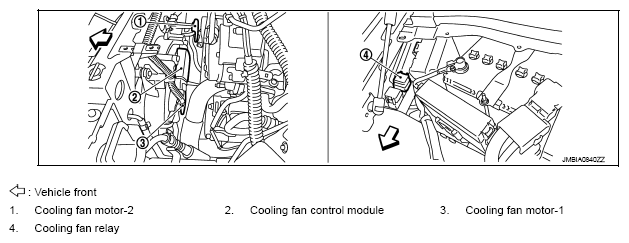

Fig 4: VVEL System Component Parts Location (4 Of 20)

G09465334

Courtesy of NISSAN NORTH AMERICA, INC.

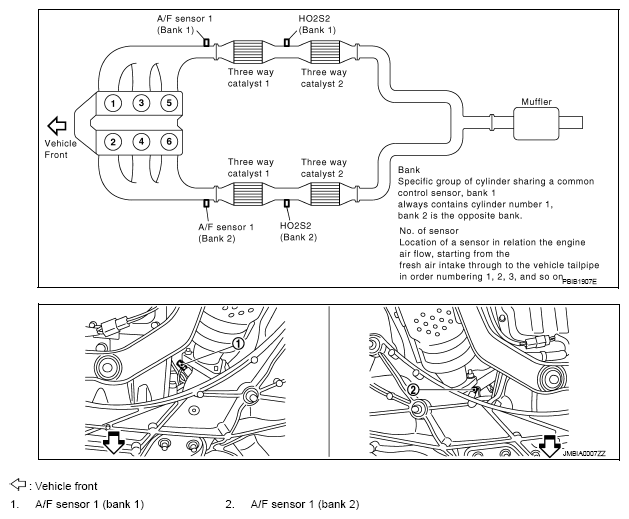

Fig 5: VVEL System Component Parts Location (5 Of 20)

G09465335

Courtesy of NISSAN NORTH AMERICA, INC.

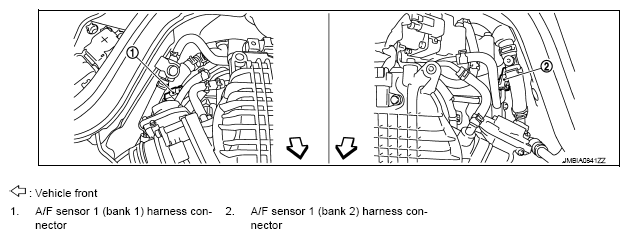

Fig 6: VVEL System Component Parts Location (6 Of 20)

G09465336

Courtesy of NISSAN NORTH AMERICA, INC.

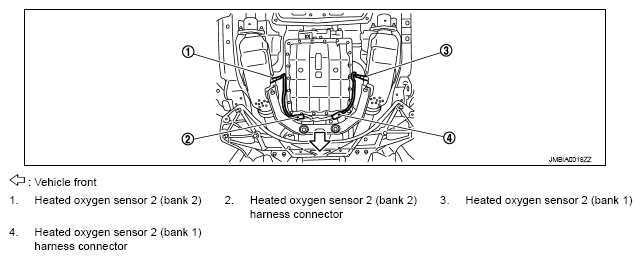

Fig 7: VVEL System Component Parts Location (7 Of 20)

G09465337

Courtesy of NISSAN NORTH AMERICA, INC.

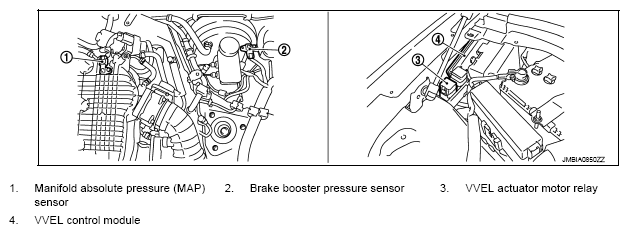

Fig 8: VVEL System Component Parts Location (8 Of 20)

G09465338

Courtesy of NISSAN NORTH AMERICA, INC.

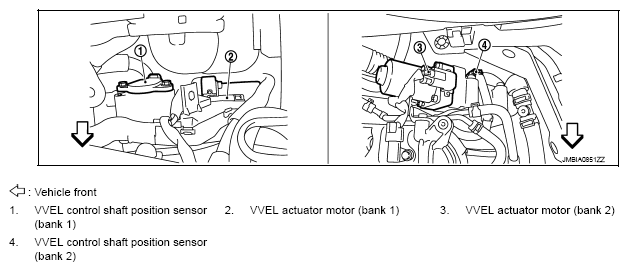

Fig 9: VVEL System Component Parts Location (9 Of 20)

G09465339

Courtesy of NISSAN NORTH AMERICA, INC.

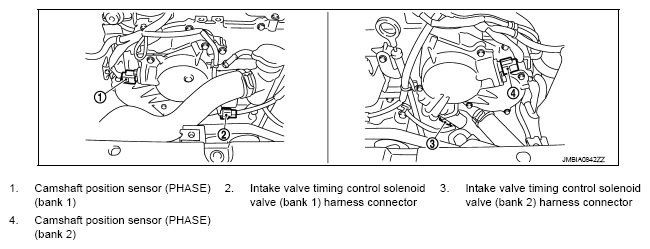

Fig 10: VVEL System Component Parts Location (10 Of 20)

G09465340

Courtesy of NISSAN NORTH AMERICA, INC.

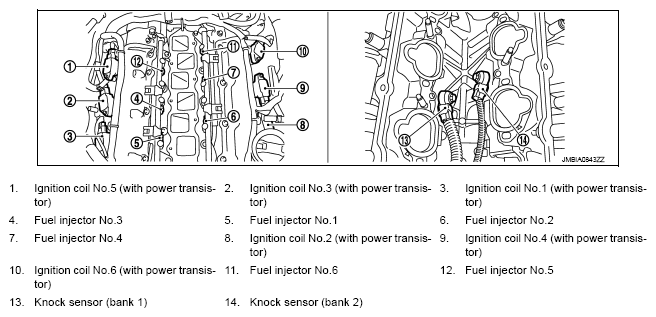

Fig 11: VVEL System Component Parts Location (11 Of 20)

G09465341

Courtesy of NISSAN NORTH AMERICA, INC.

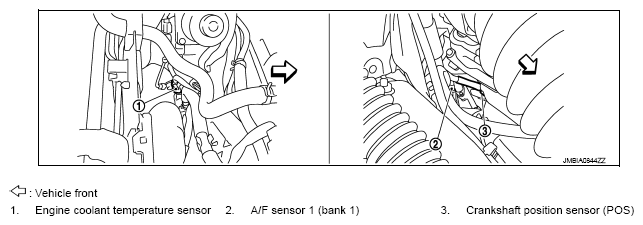

Fig 12: VVEL System Component Parts Location (12 Of 20)

G09465342

Courtesy of NISSAN NORTH AMERICA, INC.

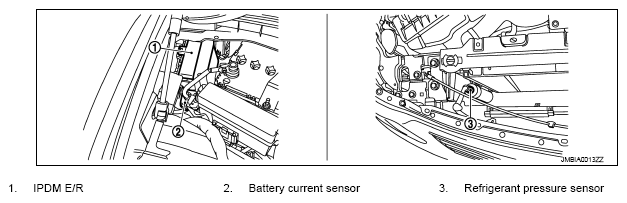

Fig 13: VVEL System Component Parts Location (13 Of 20)

G09465343

Courtesy of NISSAN NORTH AMERICA, INC.

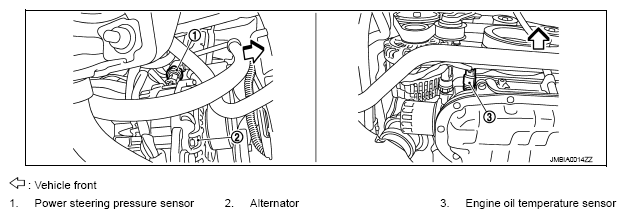

Fig 14: VVEL System Component Parts Location (14 Of 20)

G09465344

Courtesy of NISSAN NORTH AMERICA, INC.

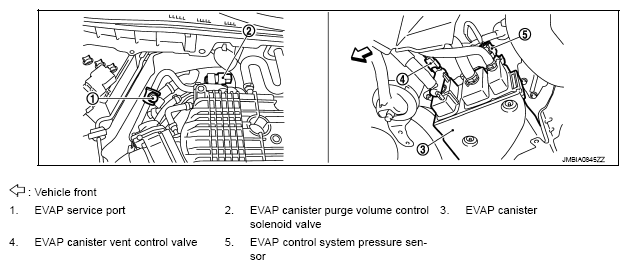

Fig 15: VVEL System Component Parts Location (15 Of 20)

G09465345

Courtesy of NISSAN NORTH AMERICA, INC.

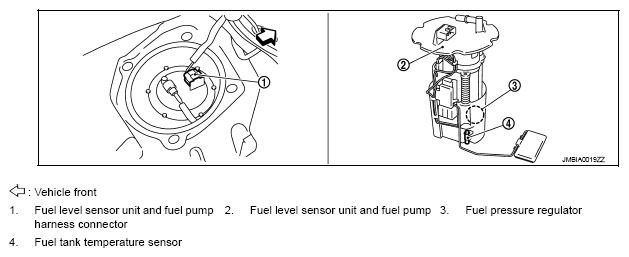

Fig 16: VVEL System Component Parts Location (16 Of 20)

G09465346

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: VVEL System Component Parts Location (17 Of 20)

G09465347

Courtesy of NISSAN NORTH AMERICA, INC.

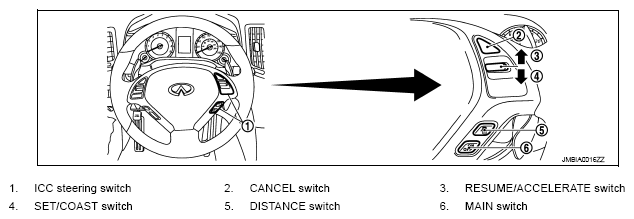

Fig 18: VVEL System Component Parts Location (18 Of 20)

G09465348

Courtesy of NISSAN NORTH AMERICA, INC.

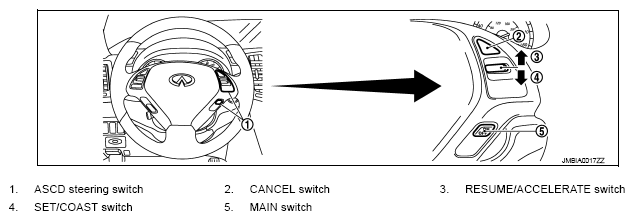

Fig 19: VVEL System Component Parts Location (19 Of 20)

G09465349

Courtesy of NISSAN NORTH AMERICA, INC.

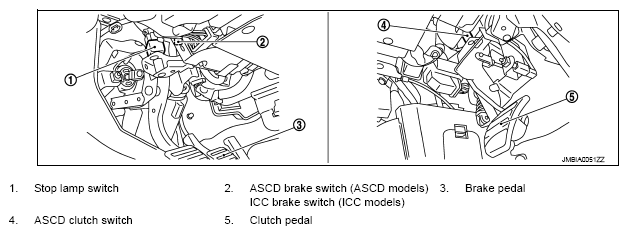

Fig 20: VVEL System Component Parts Location (20 Of 20)

G09465350

Courtesy of NISSAN NORTH AMERICA, INC.
