Engine Control System Connector End Views

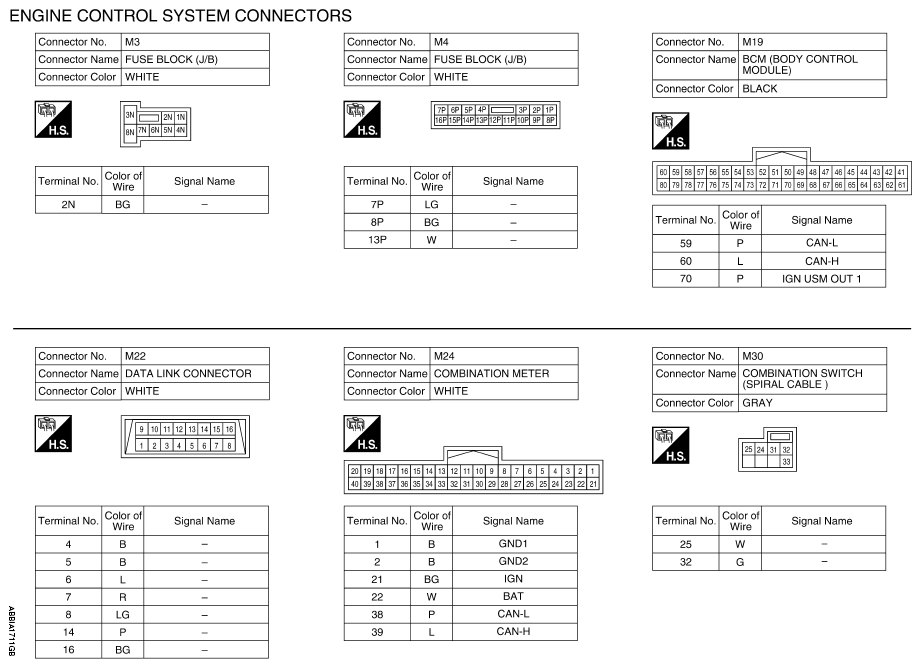

Fig 1: Engine Control System Connector End View (1 Of 23)
G09404519Courtesy of NISSAN NORTH AMERICA, INC.

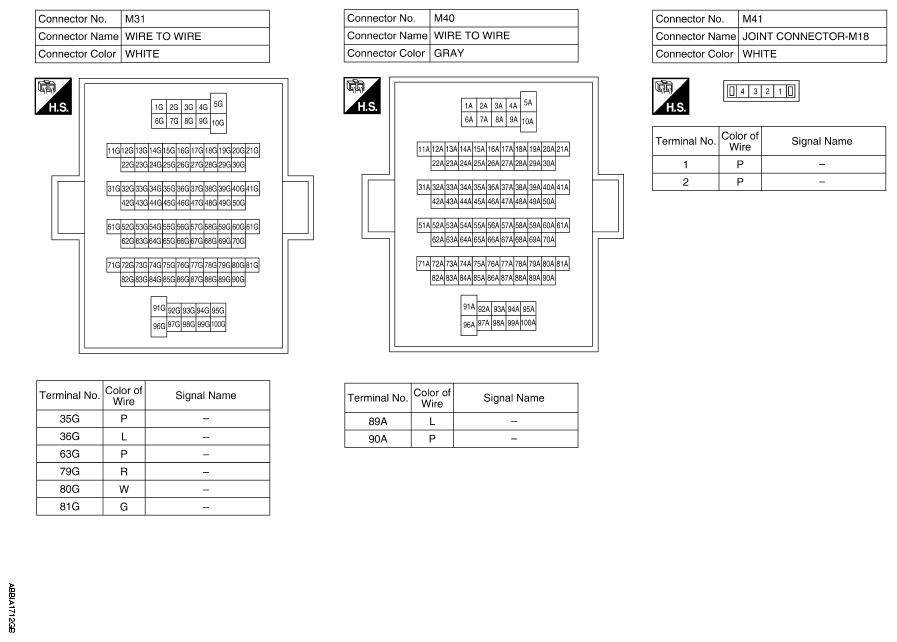

Fig 2: Engine Control System Connector End View (2 Of 23)
G09404520Courtesy of NISSAN NORTH AMERICA, INC.

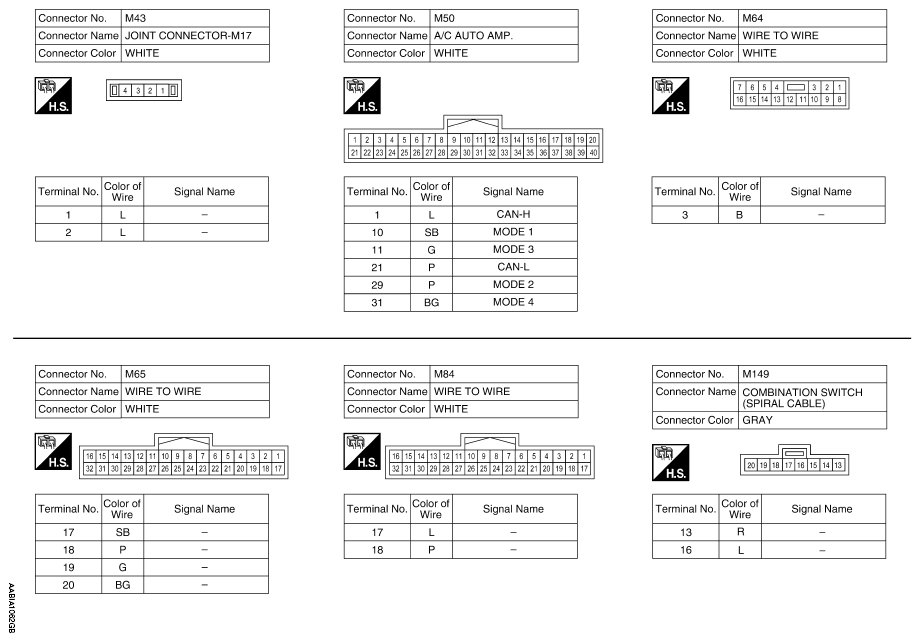

Fig 3: Engine Control System Connector End View (3 Of 23)
G09404521Courtesy of NISSAN NORTH AMERICA, INC.

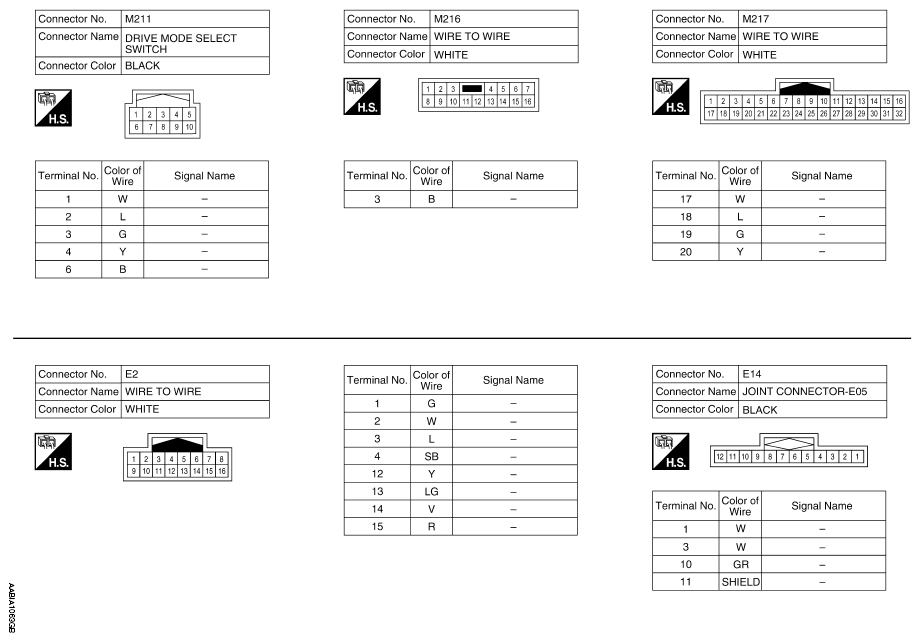

Fig 4: Engine Control System Connector End View (4 Of 23)
G09404522Courtesy of NISSAN NORTH AMERICA, INC.

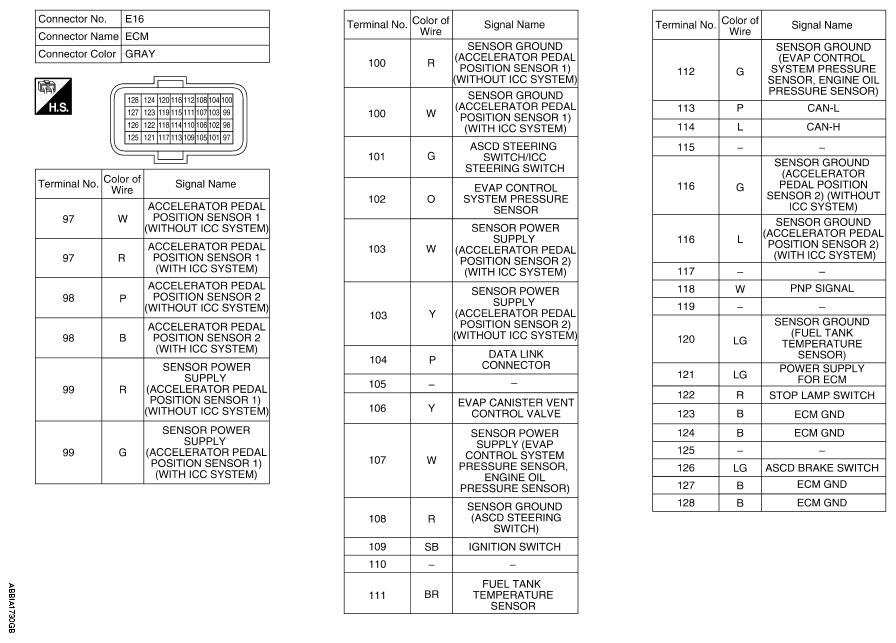

Fig 5: Engine Control System Connector End View (5 Of 23)
G09404523Courtesy of NISSAN NORTH AMERICA, INC.

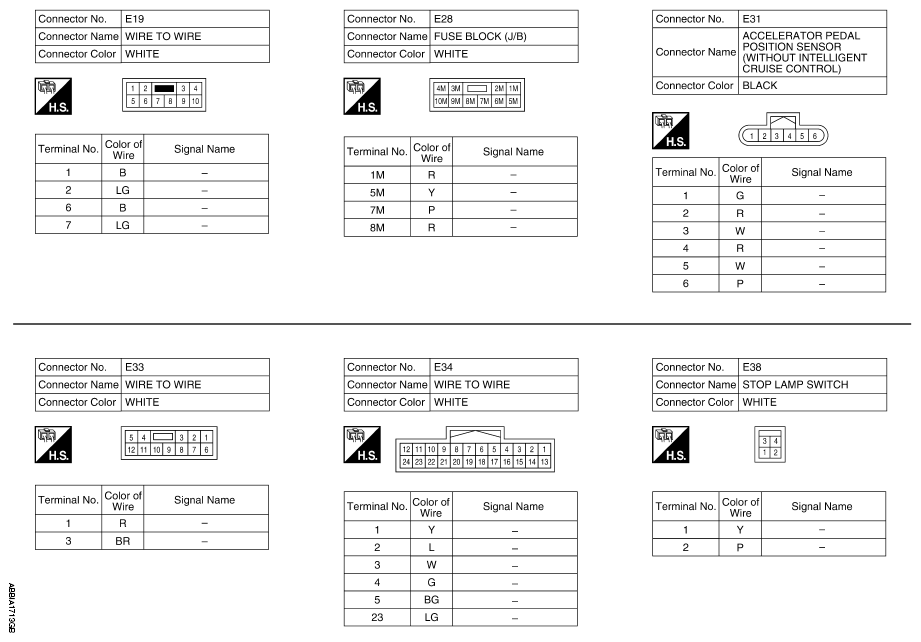

Fig 6: Engine Control System Connector End View (6 Of 23)
G09404524Courtesy of NISSAN NORTH AMERICA, INC.

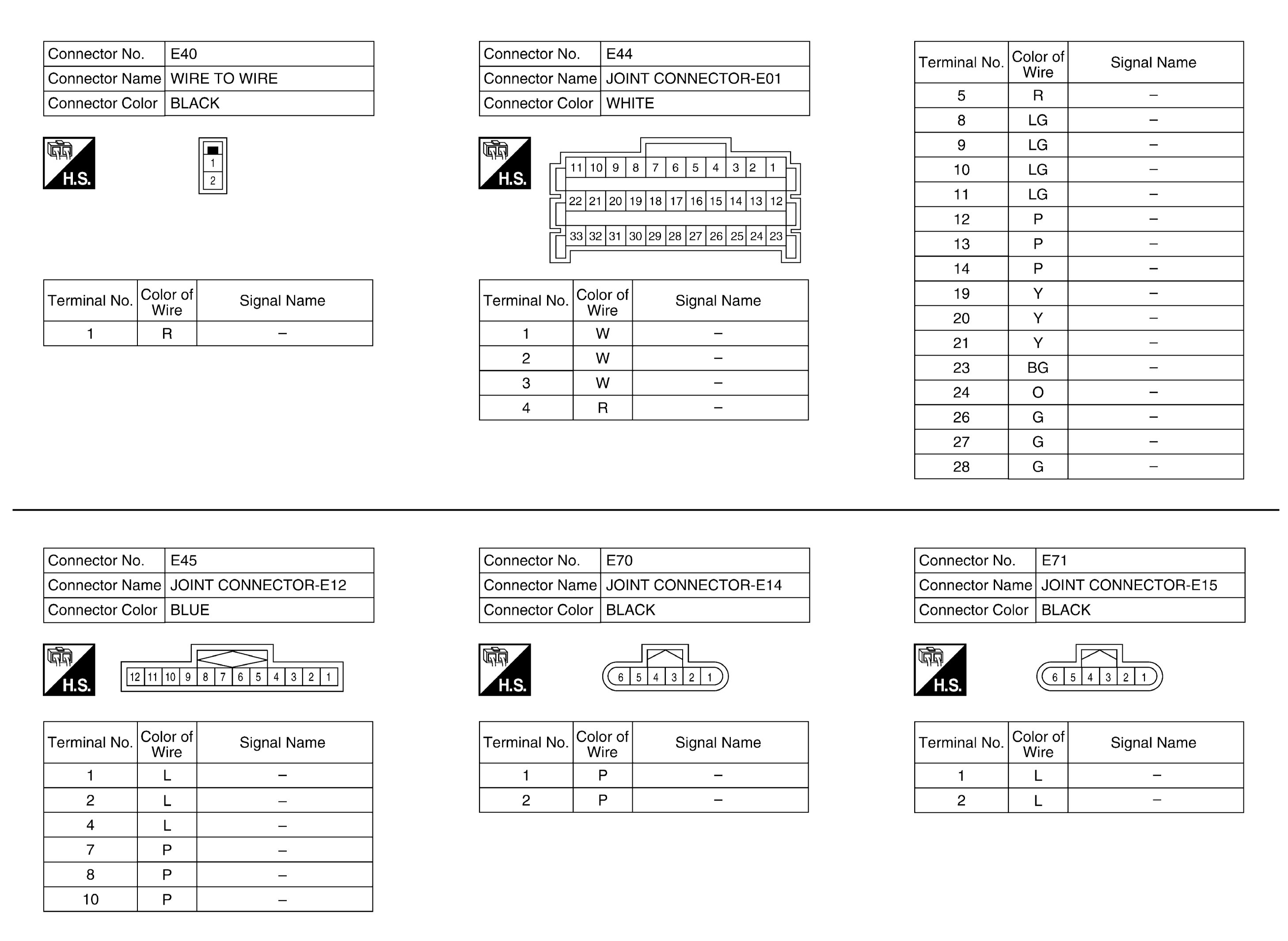

Fig 7: Engine Control System Connector End View (7 Of 23)
G09404525Courtesy of NISSAN NORTH AMERICA, INC.

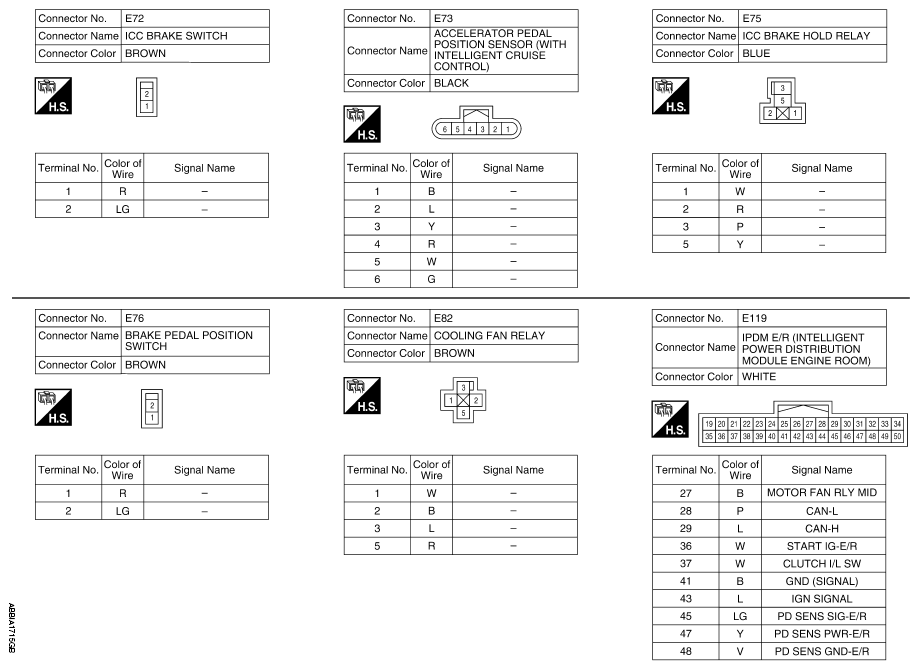

Fig 8: Engine Control System Connector End View (8 Of 23)
G09404526Courtesy of NISSAN NORTH AMERICA, INC.

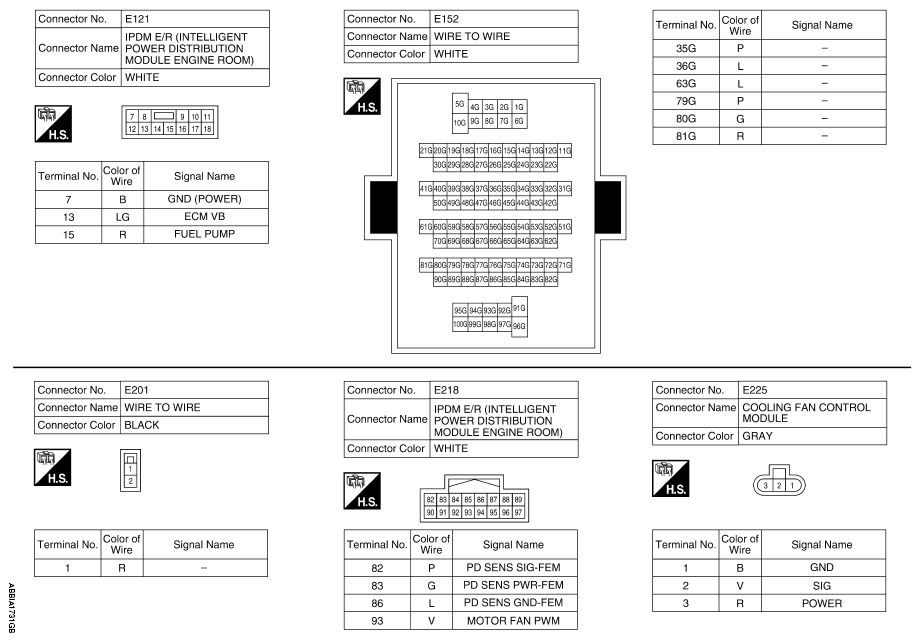

Fig 9: Engine Control System Connector End View (9 Of 23)
G09404527Courtesy of NISSAN NORTH AMERICA, INC.

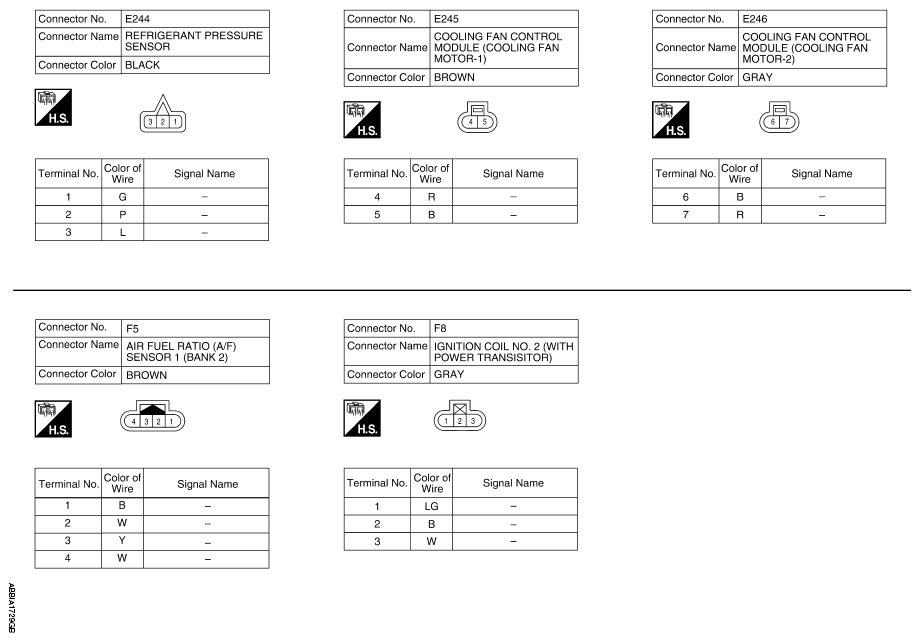

Fig 10: Engine Control System Connector End View (10 Of 23)
G09404528Courtesy of NISSAN NORTH AMERICA, INC.

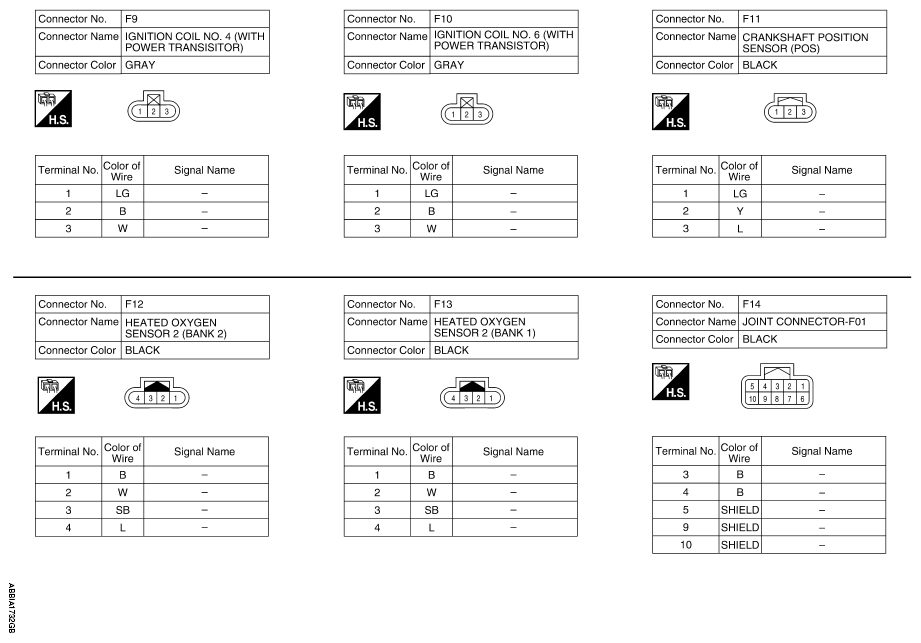

Fig 11: Engine Control System Connector End View (11 Of 23)
G09404529Courtesy of NISSAN NORTH AMERICA, INC.

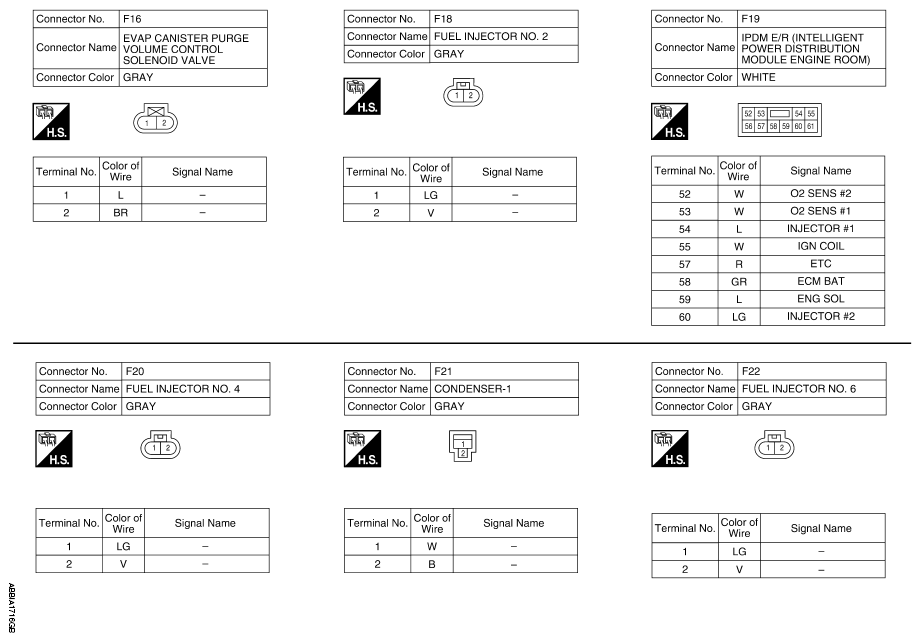

Fig 12: Engine Control System Connector End View (12 Of 23)
G09404530Courtesy of NISSAN NORTH AMERICA, INC.

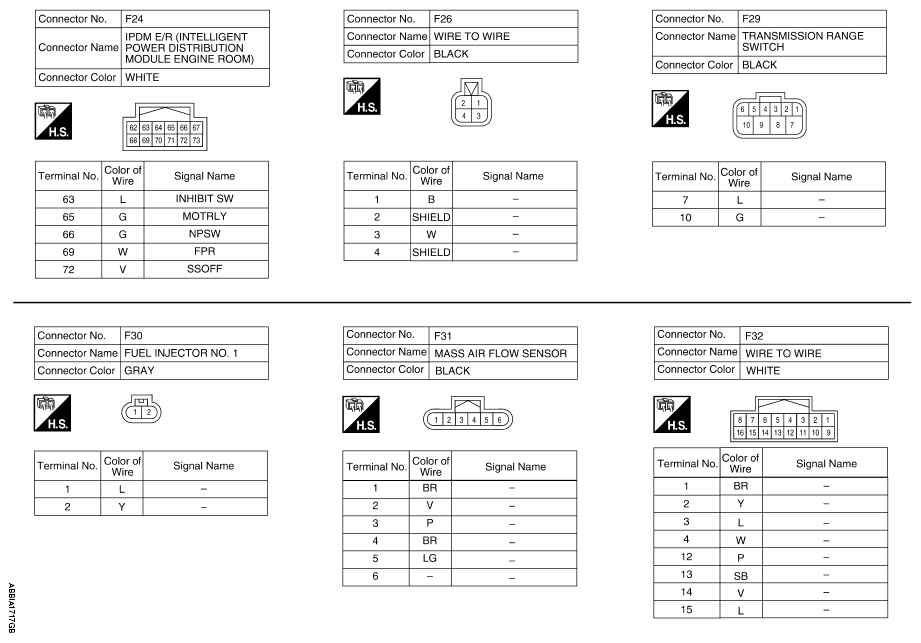

Fig 13: Engine Control System Connector End View (13 Of 23)
G09404531Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Engine Control System Connector End View (14 Of 23)
G09404532Courtesy of NISSAN NORTH AMERICA, INC.

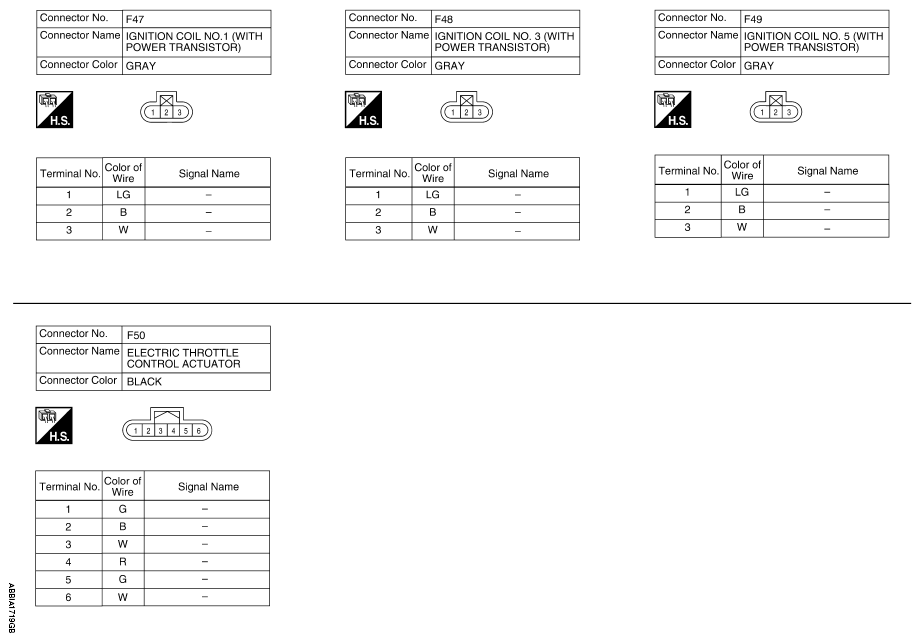

Fig 15: Engine Control System Connector End View (15 Of 23)
G09404533Courtesy of NISSAN NORTH AMERICA, INC.

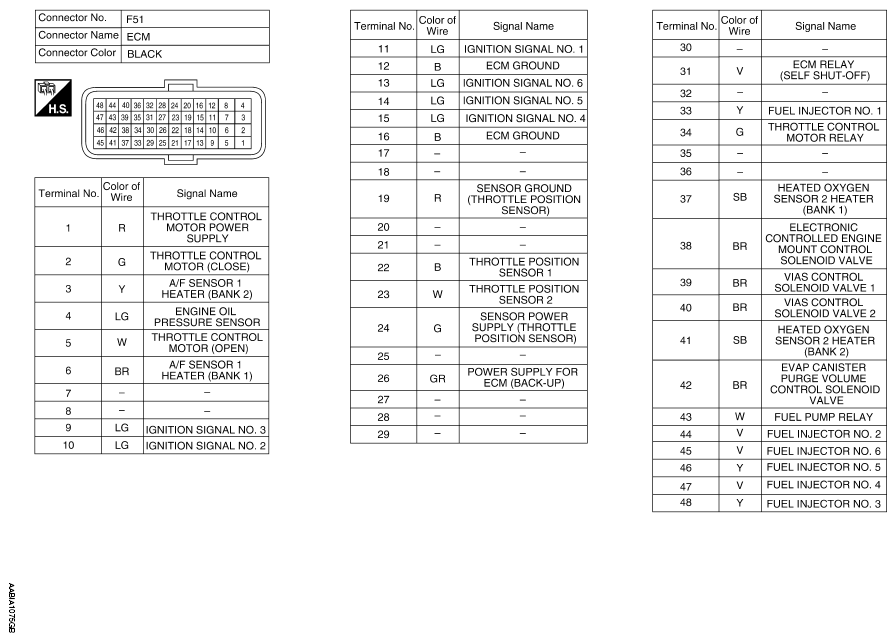

Fig 16: Engine Control System Connector End View (16 Of 23)
G09404534Courtesy of NISSAN NORTH AMERICA, INC.

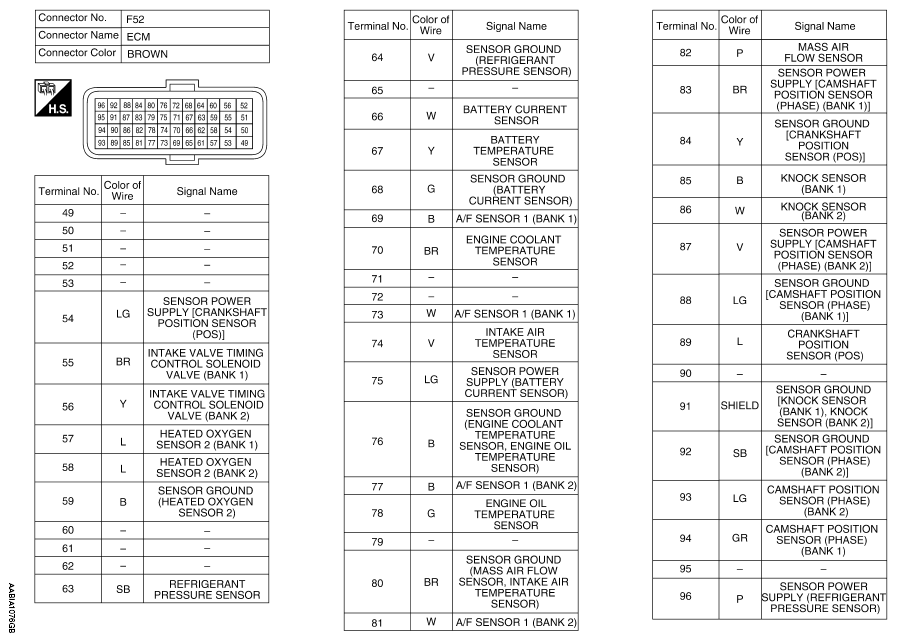

Fig 17: Engine Control System Connector End View (17 Of 23)
G09404535Courtesy of NISSAN NORTH AMERICA, INC.

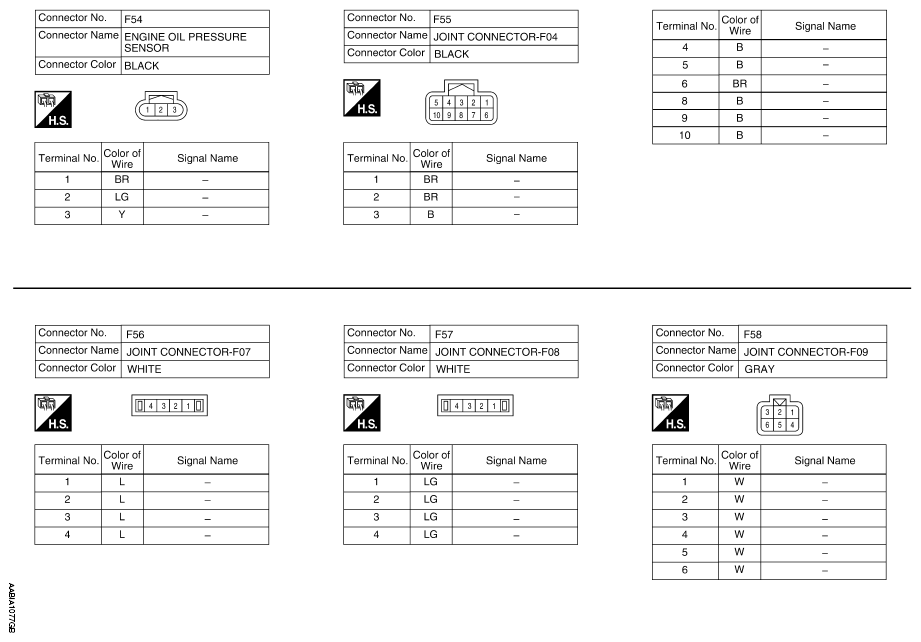

Fig 18: Engine Control System Connector End View (18 Of 23)
G09404536Courtesy of NISSAN NORTH AMERICA, INC.

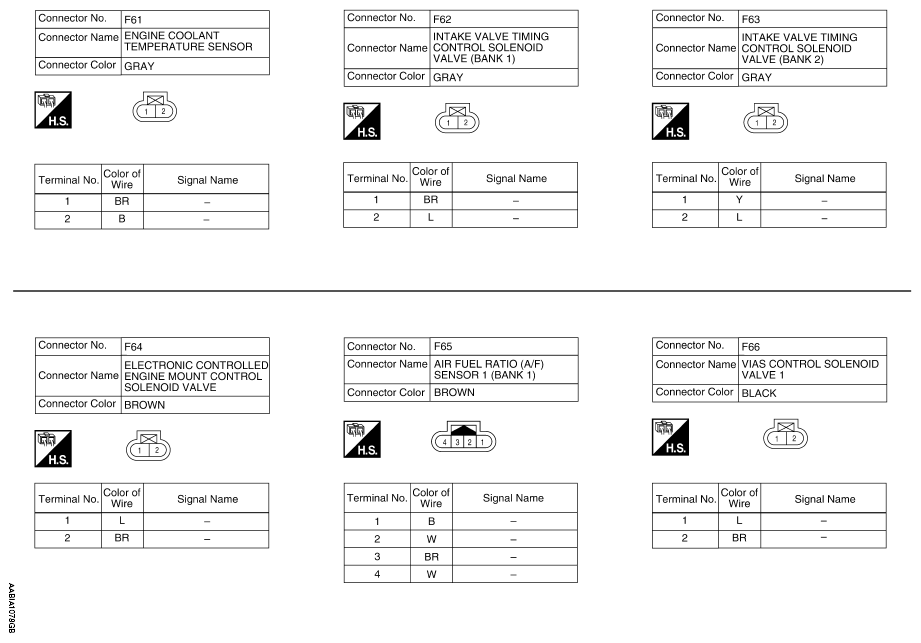

Fig 19: Engine Control System Connector End View (19 Of 23)
G09404537Courtesy of NISSAN NORTH AMERICA, INC.

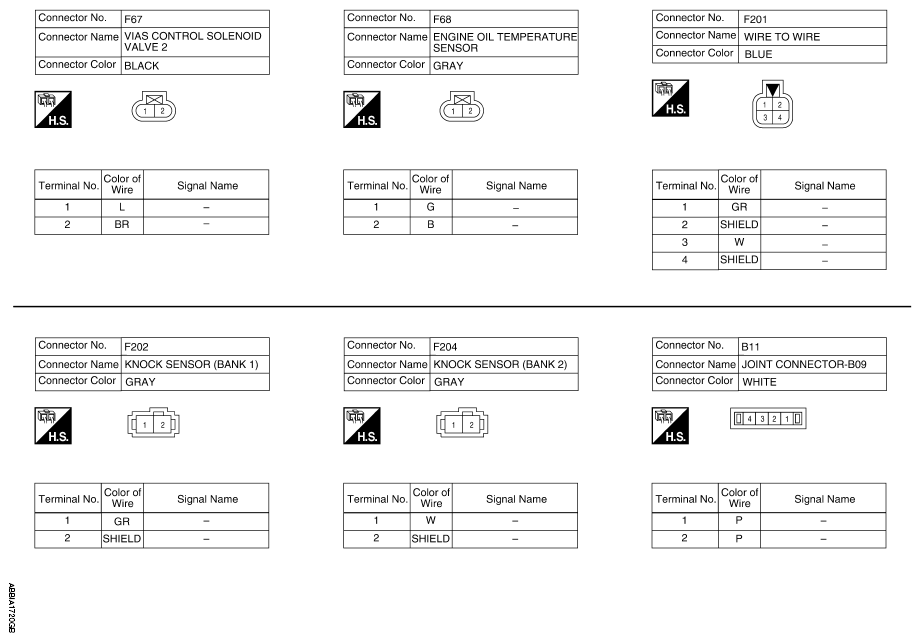

Fig 20: Engine Control System Connector End View (20 Of 23)
G09404538Courtesy of NISSAN NORTH AMERICA, INC.

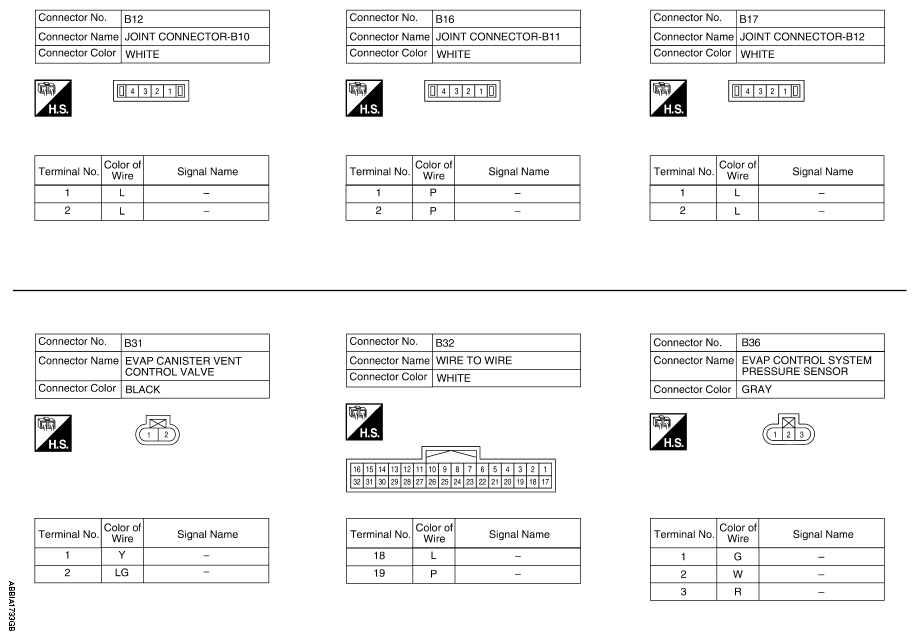

Fig 21: Engine Control System Connector End View (21 Of 23)
G09404539Courtesy of NISSAN NORTH AMERICA, INC.

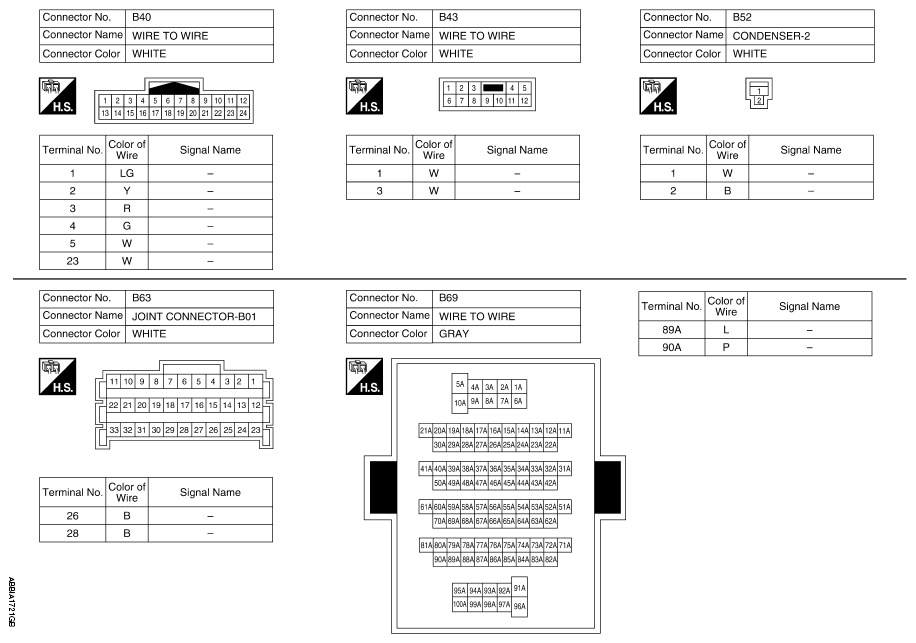

Fig 22: Engine Control System Connector End View (22 Of 23)
G09404540Courtesy of NISSAN NORTH AMERICA, INC.

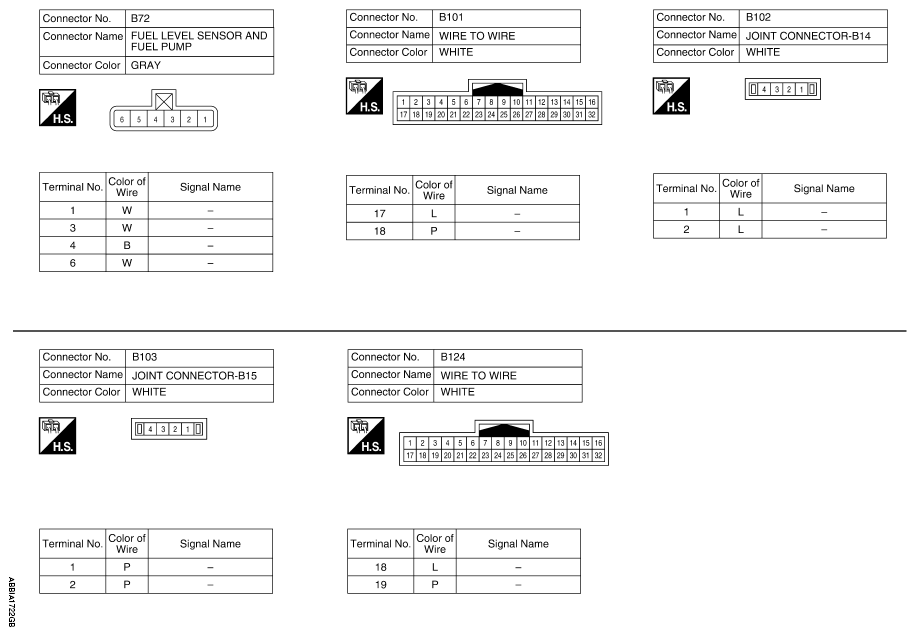

Fig 23: Engine Control System Connector End View (23 Of 23)
G09404541Courtesy of NISSAN NORTH AMERICA, INC.
