Components Location

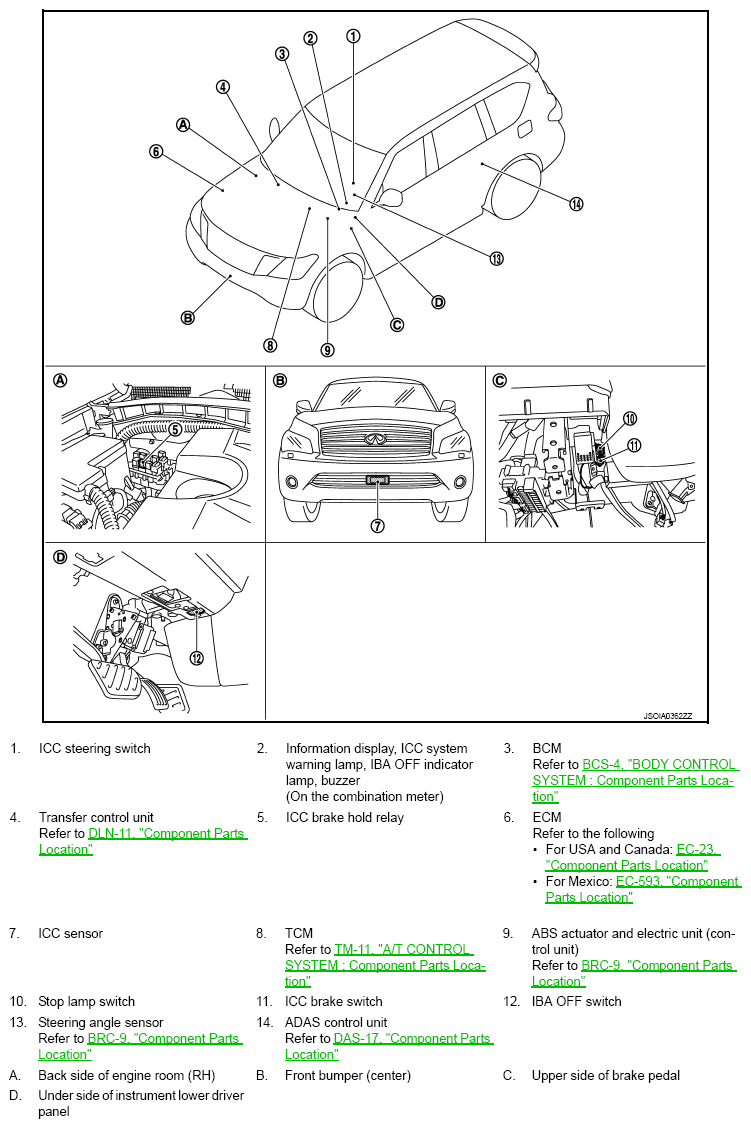

Fig 1: Identifying Brake Assist (With Preview Function) Components Location
G09179472Courtesy of NISSAN NORTH AMERICA, INC.
