Body Compartment

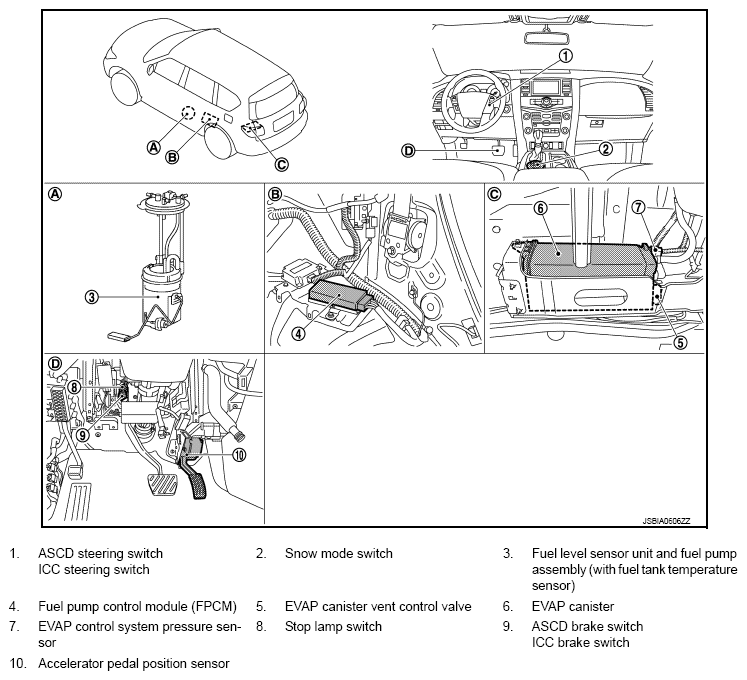

Fig 1: Engine Control Body Compartment Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
