Engine Room Compartment

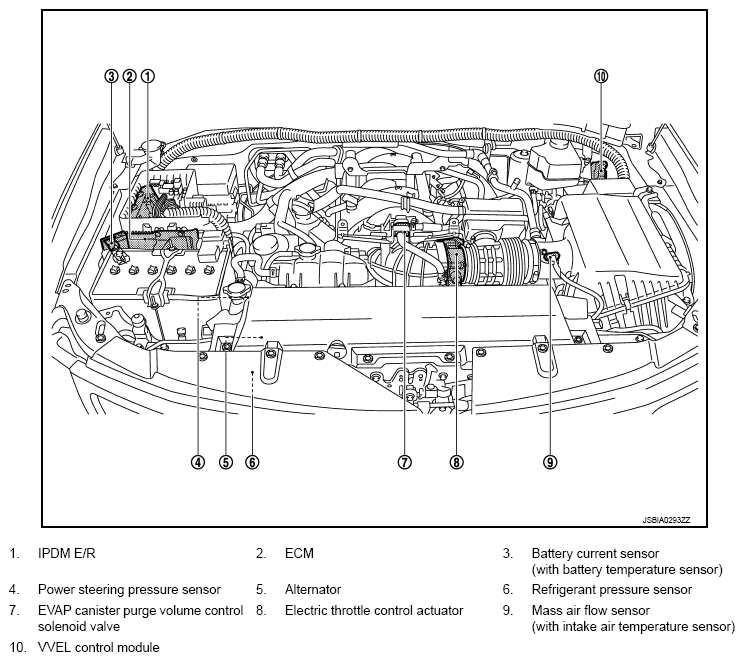

Fig 1: Engine Control Engine Room Compartment Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
