ELECTRIC IGNITION SYSTEM: System Diagram

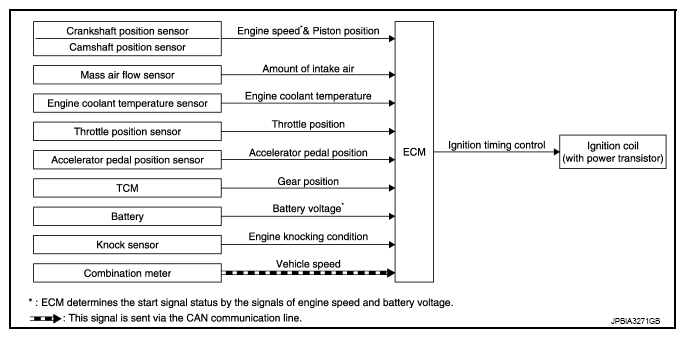

Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
