Exploded View With Torque Specifications

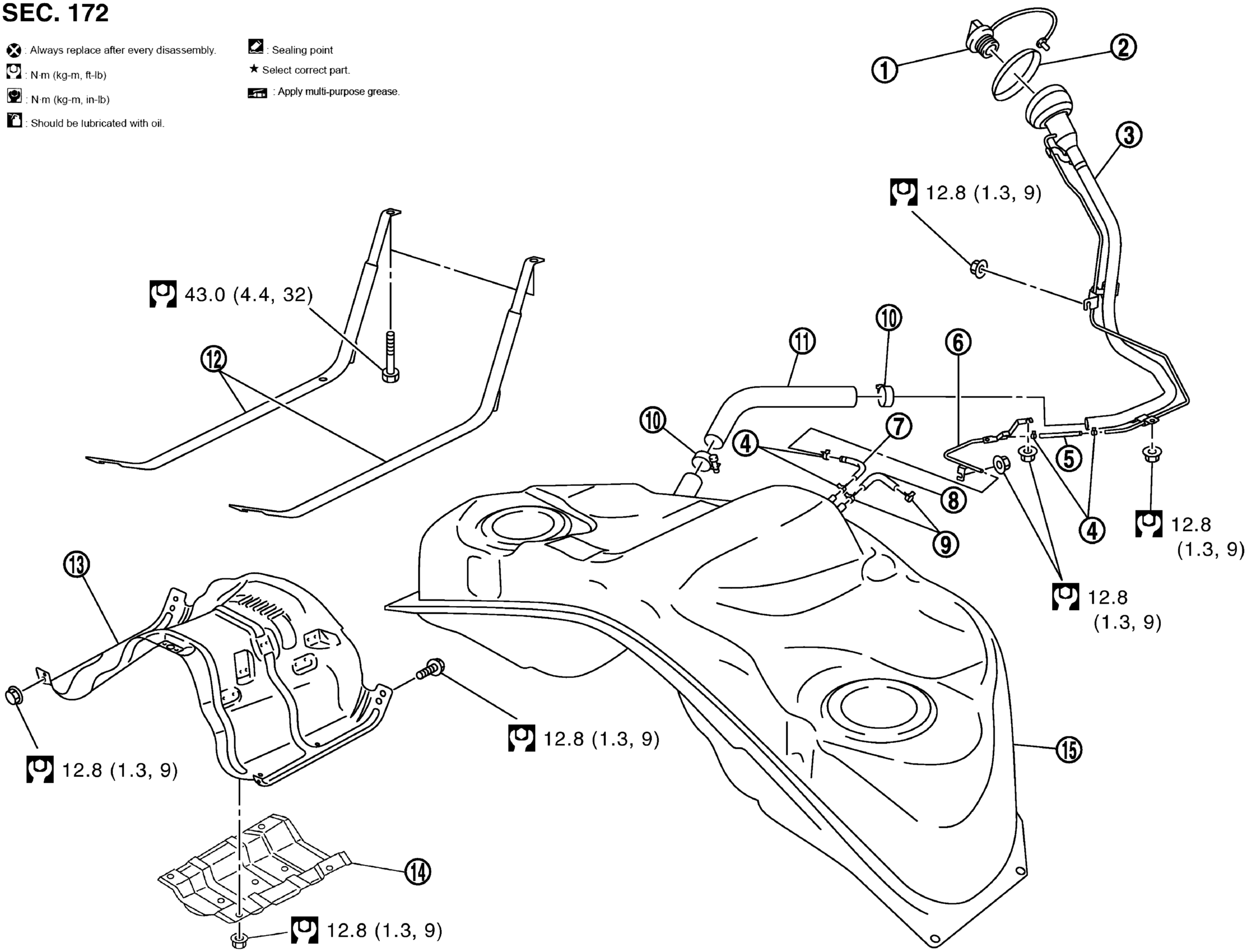

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
GNSJPBIA0155GB-155Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Clamp 5. Vent hose 6. Vent tube
7. Vent hose 8. EVAP hose 9. Clamp
10. Clamp 11. Fuel filler hose 12. Fuel tank mounting band
13. Fuel tank protector 14. Insulator 15. Fuel tank
Refer to COMPONENTS for symbols in the figure.
