Cross-Sectional View

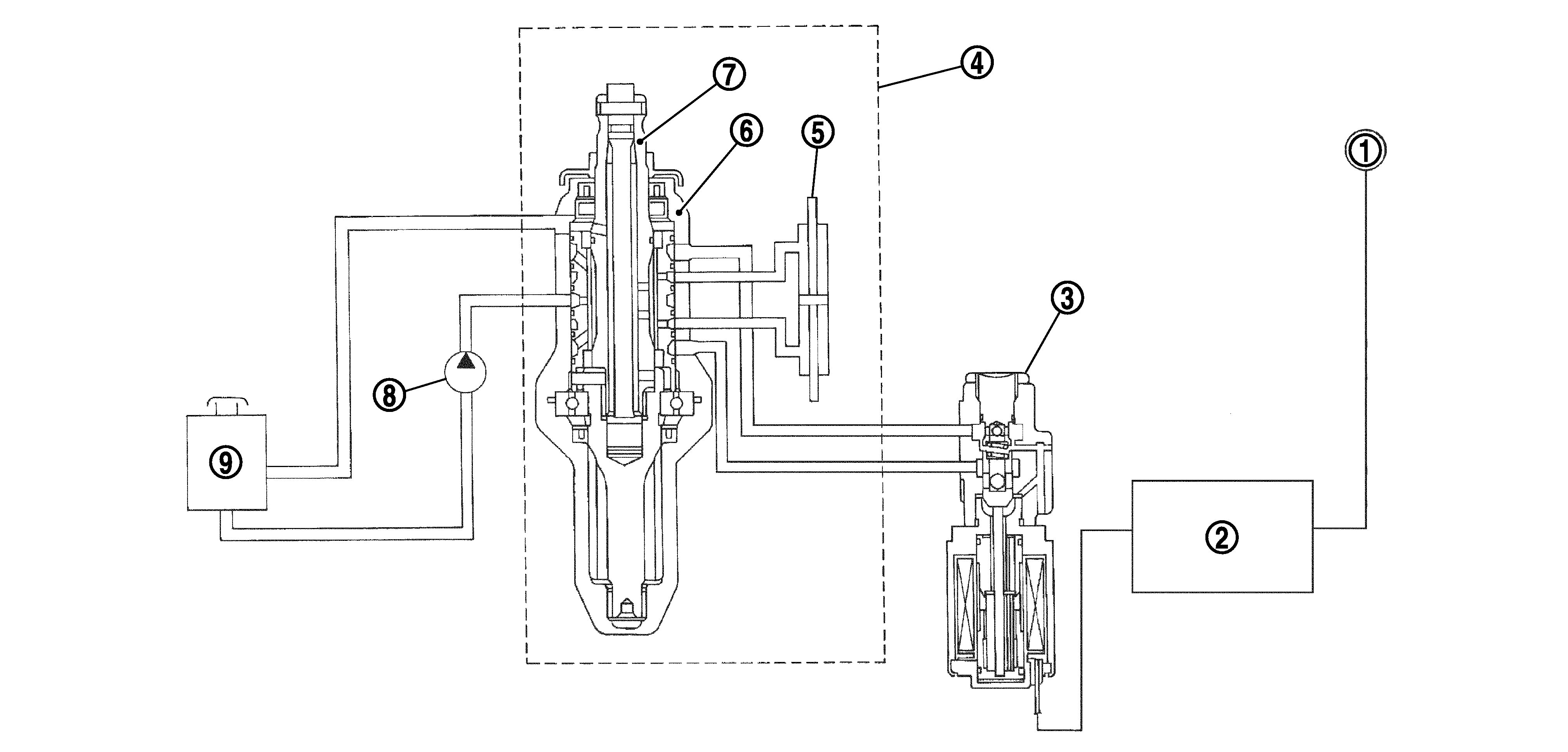

Fig 1: Power Steering Control Diagram
G04129075Courtesy of NISSAN NORTH AMERICA, INC.
1. Unified meter and A/C amp. 2. Power steering control unit 3. Power steering solenoid valve
4. Steering gear assembly 5. Gear housing assembly 6. Gear sub-assembly
7. Pinion 8. Power steering oil pump 9. Reservoir tank
