Engine Assembly Component

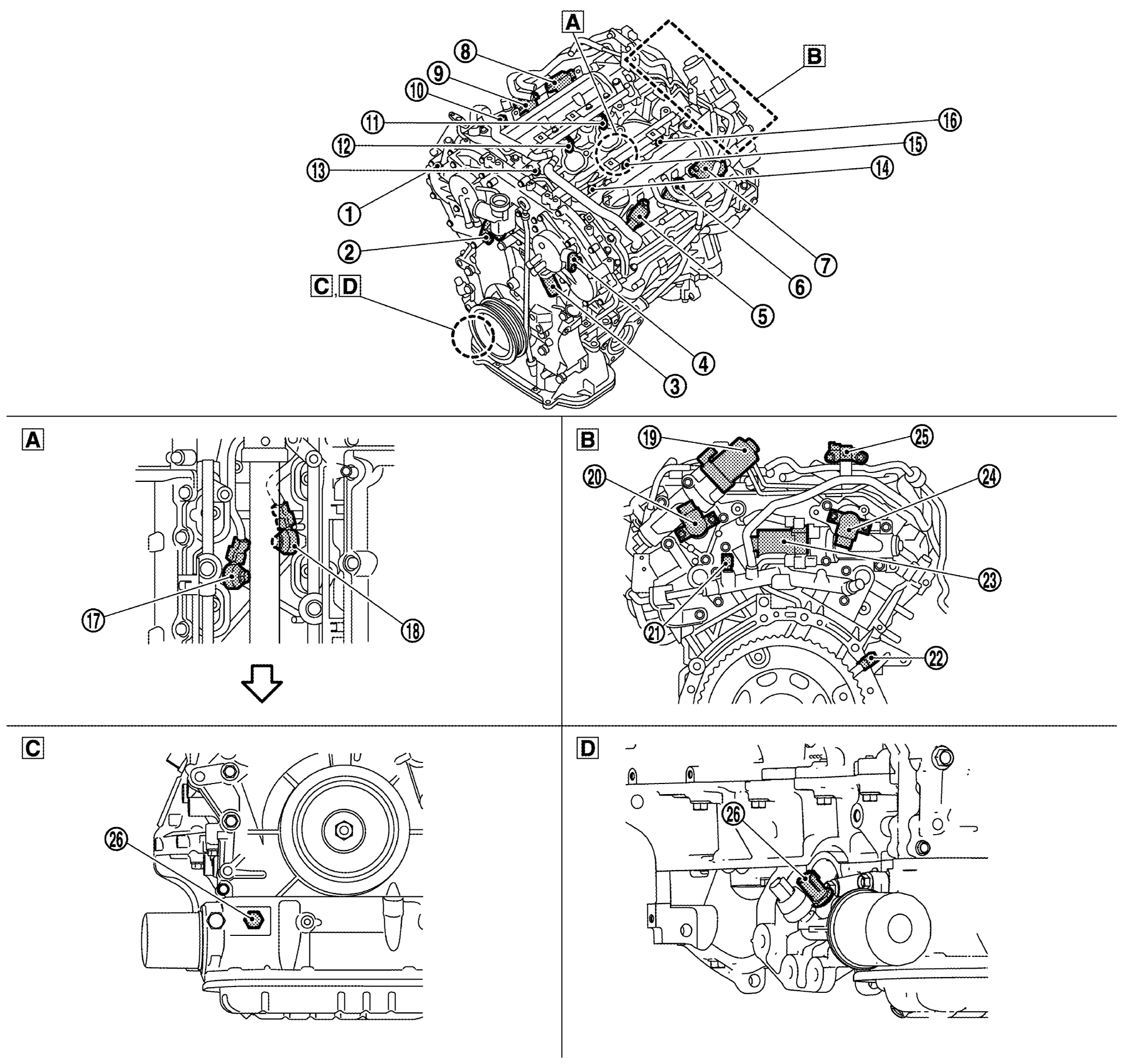

Fig 1: Engine Control System Component Parts Location (Engine Assembly Components)
GNSJSBIA3941ZZ-941Courtesy of NISSAN NORTH AMERICA, INC.
  Top view of the engine
(view with intake manifold is removed)		   Rear view of the engine   Around the oil filter (2WD)
  Around the oil filter (AWD)
  Engine front
No. Component Function
  Camshaft position sensor (PHASE) (bank 1) CAMSHAFT POSITION SENSOR (PHASE)
  Intake valve timing control solenoid valve (bank 1) INTAKE VALVE TIMING CONTROL SOLENOID VALVE
  Intake valve timing control solenoid valve (bank 2)
  Camshaft position sensor (PHASE) (bank 2) CAMSHAFT POSITION SENSOR (PHASE)
  Ignition coil (with power transistor) and spark plug (No. 2 cylinder) IGNITION COIL
  Ignition coil (with power transistor) and spark plug (No. 4 cylinder)
  Ignition coil (with power transistor) and spark plug (No. 6 cylinder)
  Ignition coil (with power transistor) and spark plug (No. 5 cylinder)
  Ignition coil (with power transistor) and spark plug (No. 3 cylinder)
  Ignition coil (with power transistor) and spark plug (No. 1 cylinder)
  Fuel injector (No. 5 cylinder) FUEL INJECTOR
  Fuel injector (No. 3 cylinder)
  Fuel injector (No. 1 cylinder)
  Fuel injector (No. 2 cylinder)
  Fuel injector (No. 4 cylinder)
  Fuel injector (No. 6 cylinder)
  Knock sensor (bank 1) KNOCK SENSOR
  Knock sensor (bank 2)
  VVEL actuator motor (bank 2) VVEL ACTUATOR MOTOR
  VVEL control shaft position sensor (bank 2) VVEL CONTROL POSITION SENSOR
  Engine coolant temperature sensor ENGINE COOLANT TEMPERATURE SENSOR
  Crankshaft position sensor (POS) CRANKSHAFT POSITION SENSOR (POS)
  VVEL actuator motor (bank 1) VVEL ACTUATOR MOTOR
  VVEL control shaft position sensor (bank 1) VVEL CONTROL POSITION SENSOR
  EVAP canister purge volume control solenoid valve EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
  Engine oil temperature sensor ENGINE OIL TEMPERATURE SENSOR
