Engine Room Component

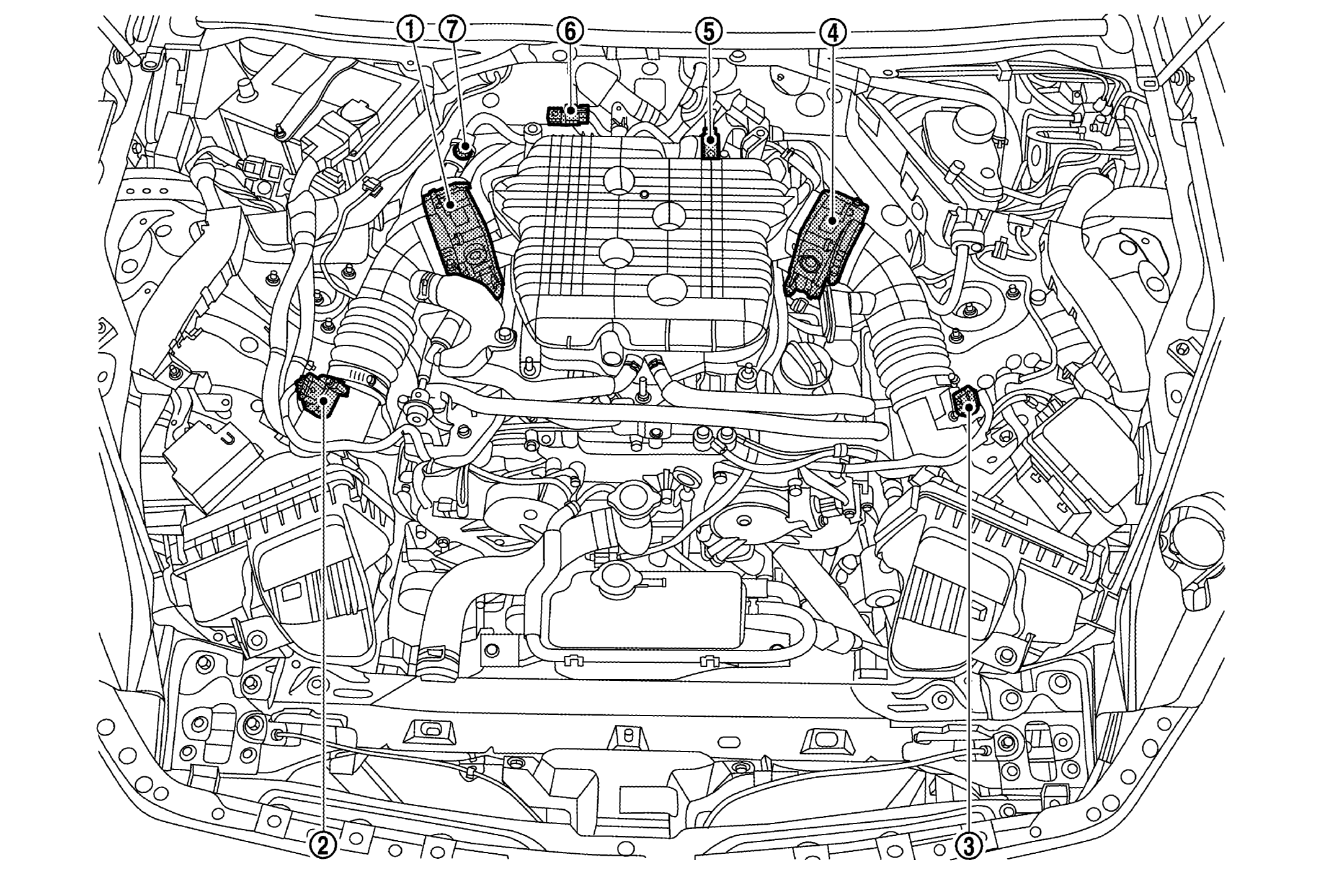

Fig 1: Engine Control System Component Parts Location (Engine Room Components)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Electric throttle control actuator (bank 1)	ELECTRIC THROTTLE CONTROL ACTUATOR
	Mass air flow sensor (with intake air temperature sensor) (bank 1)	MASS AIR FLOW SENSOR
	Mass air flow sensor (bank 2)	MASS AIR FLOW SENSOR
	Electric throttle control actuator (bank 2)	ELECTRIC THROTTLE CONTROL ACTUATOR
	Manifold absolute pressure sensor*	-
	EVAP canister purge volume control solenoid valve	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
	EVAP service port	INSPECTION

*: Not applicable
