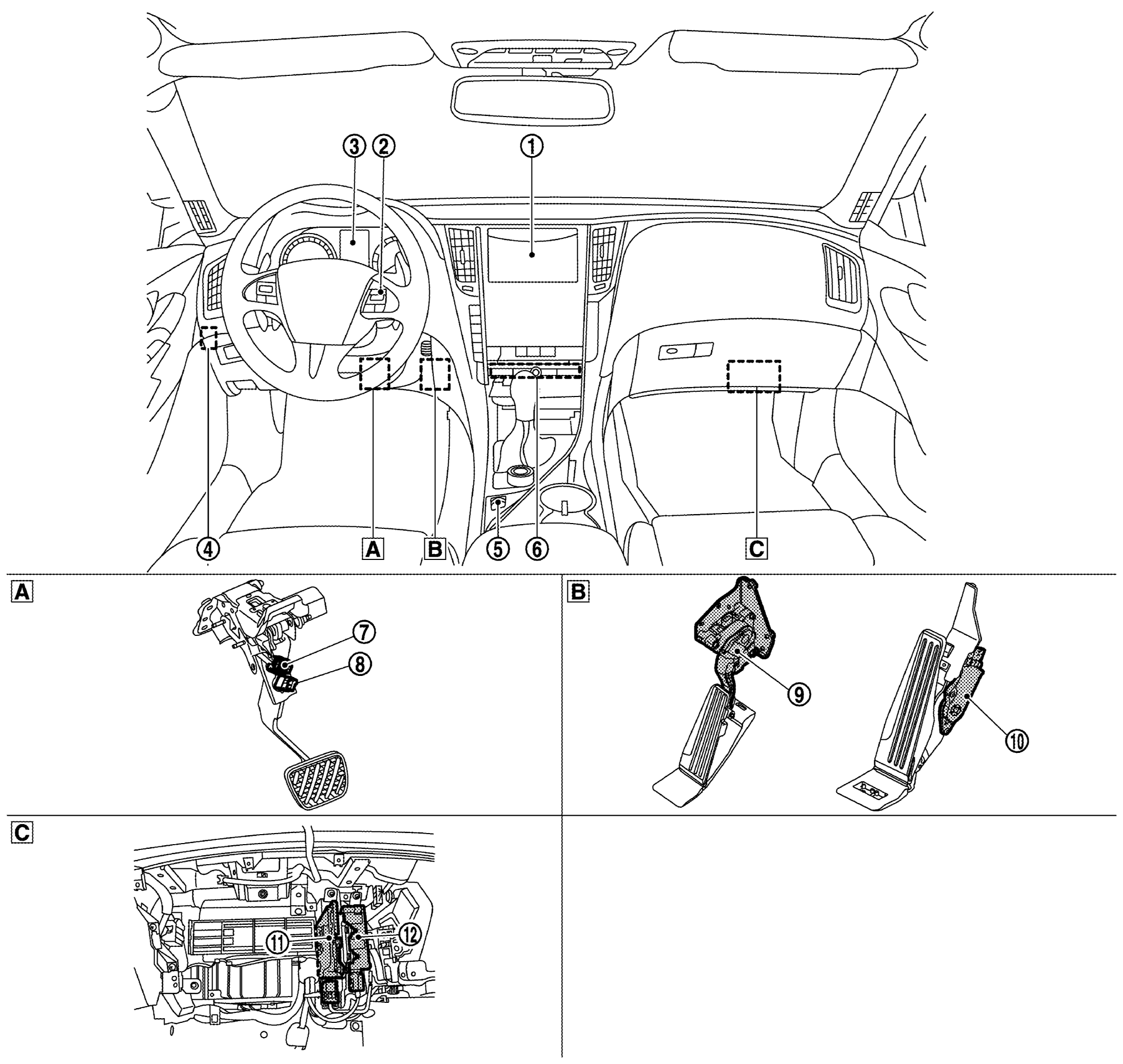

Interior Compartment
| Brake pedal | Accelerator pedal | Grove box (back side) |
| No. | Component | Description |
|---|---|---|
| Display control unit | Displays a vehicle status on the display screen, according to signals received from ECM. For details of installation position, refer to COMPONENT PARTS LOCATION . |
|
| ASCD steering switch | ASCD STEERING SWITCH | |
| ICC steering switch | ICC STEERING SWITCH | |
| Combination meter | Performs the ON/OFF control of the indicator lamp, warning lamp, and the information display, according to signals received from ECM via CAN communication. | |
| Chassis control module | For details of installation position, refer to COMPONENT PARTS LOCATION . | |
| Drive mode select switch | DRIVE MODE SELECT SWITCH For details of installation position, refer to COMPONENT PARTS LOCATION . |
|
| A/C auto amp. | Controls the air-conditioning system (e.g. electric compressor, blower fan motor), according to a command from ECM. For details of installation position, refer to COMPONENT PARTS LOCATION . |
|
| Stop lamp switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Brake pedal position switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Accelerator pedal position switch (with ECO pedal) | ACCELERATOR PEDAL POSITION SENSOR | |
| Accelerator pedal position switch (without ECO pedal) | ACCELERATOR PEDAL POSITION SENSOR | |
| ECM | ECM | |
| Steering force control module (with direct adaptive steering) | For details of installation position, refer to COMPONENT PARTS LOCATION . |
