Infiniti
>>
2015
>>
QX80 Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (Power Distribution System)
>>
System Description
>>
System
>>
Power Distribution System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

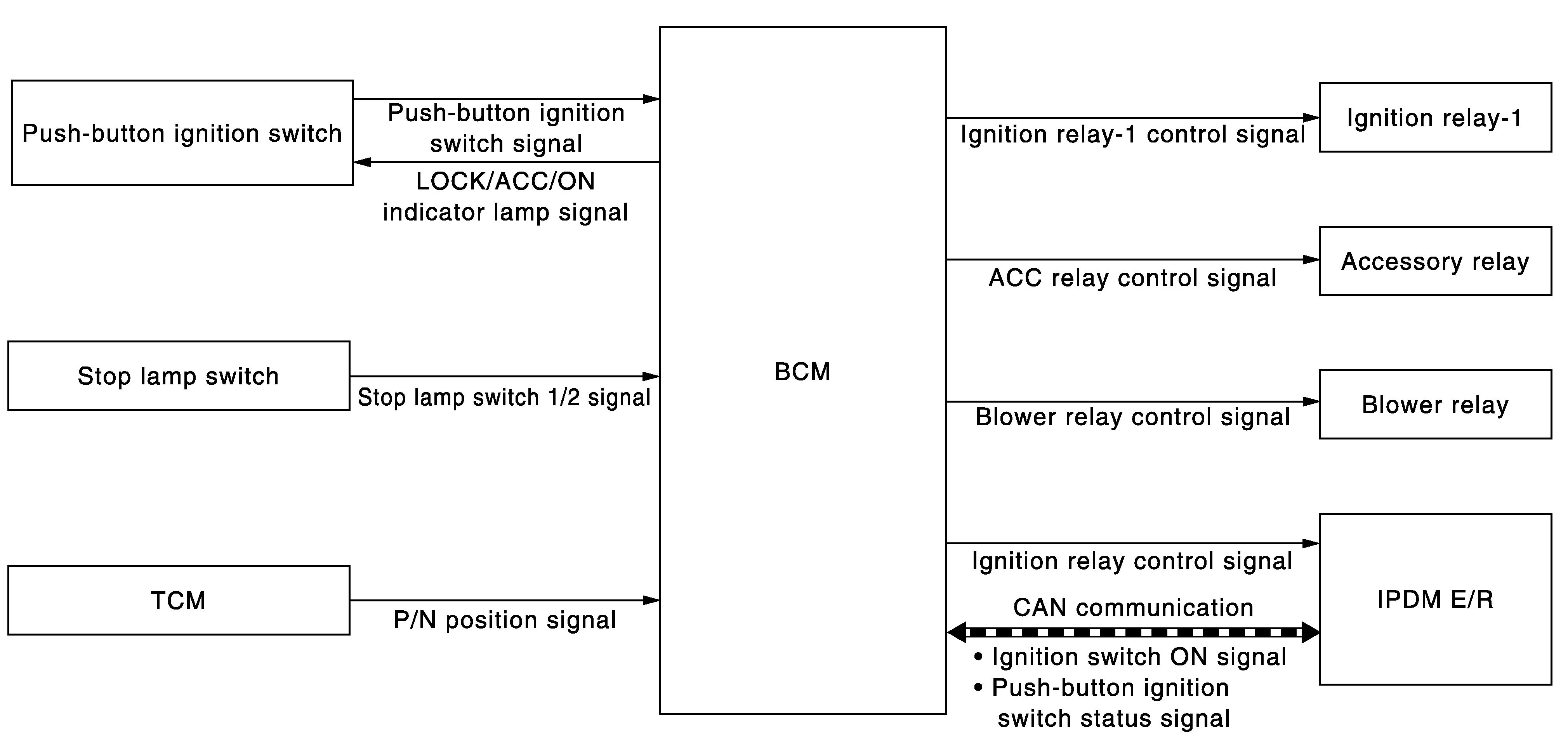

Fig 1: Power Distribution System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
