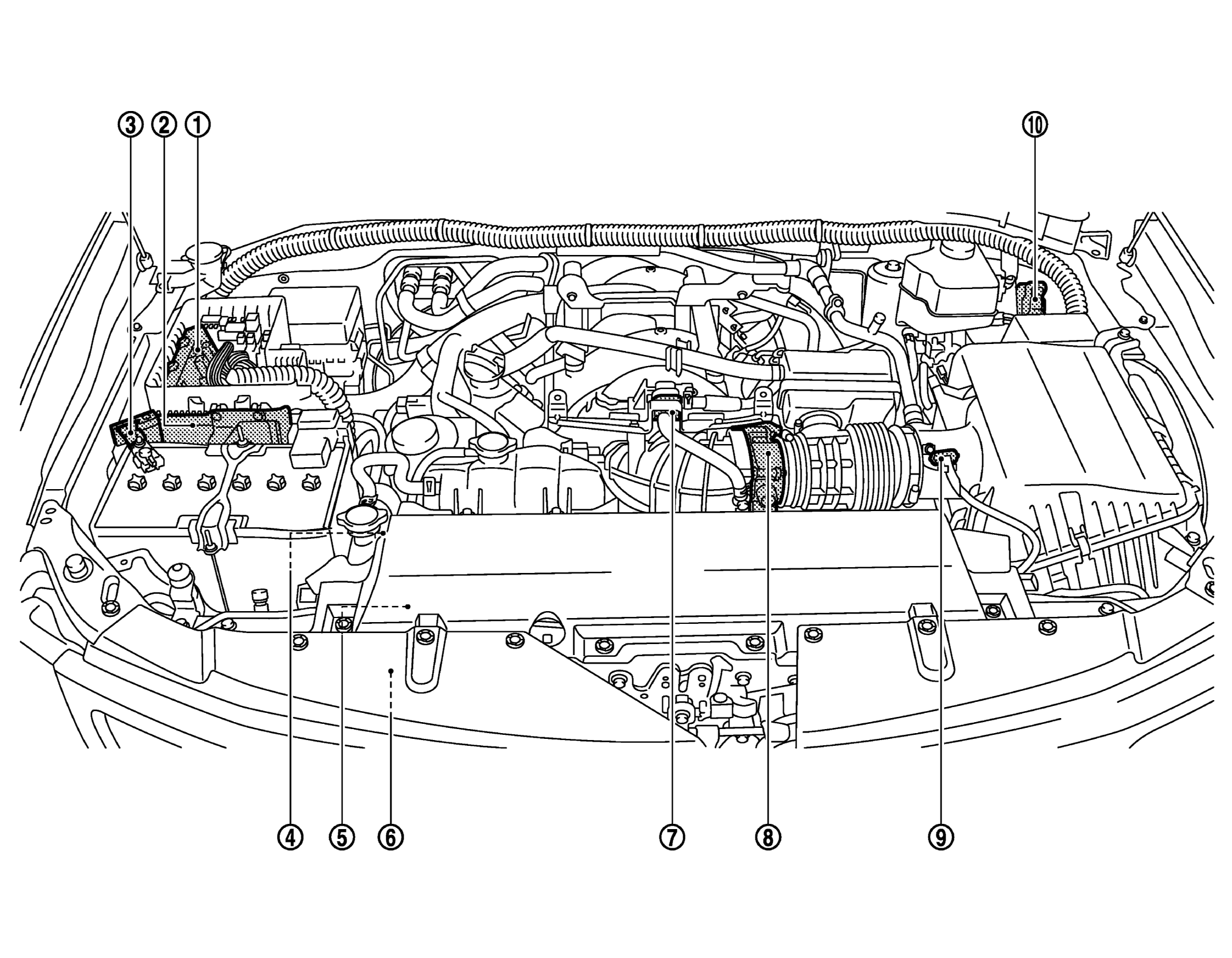

Engine Room Compartment
| 1. | IPDM E/R | 2. | ECM | 3. | Battery current sensor (with battery temperature sensor) |
| 4. | Power steering pressure sensor | 5. | Alternator | 6. | Refrigerant pressure sensor |
| 7. | EVAP canister purge volume control solenoid valve | 8. | Electric throttle control actuator | 9. | Mass air flow sensor (with intake air temperature sensor) |
| 10. | VVEL control module |
