Exploded View With Torque Specifications

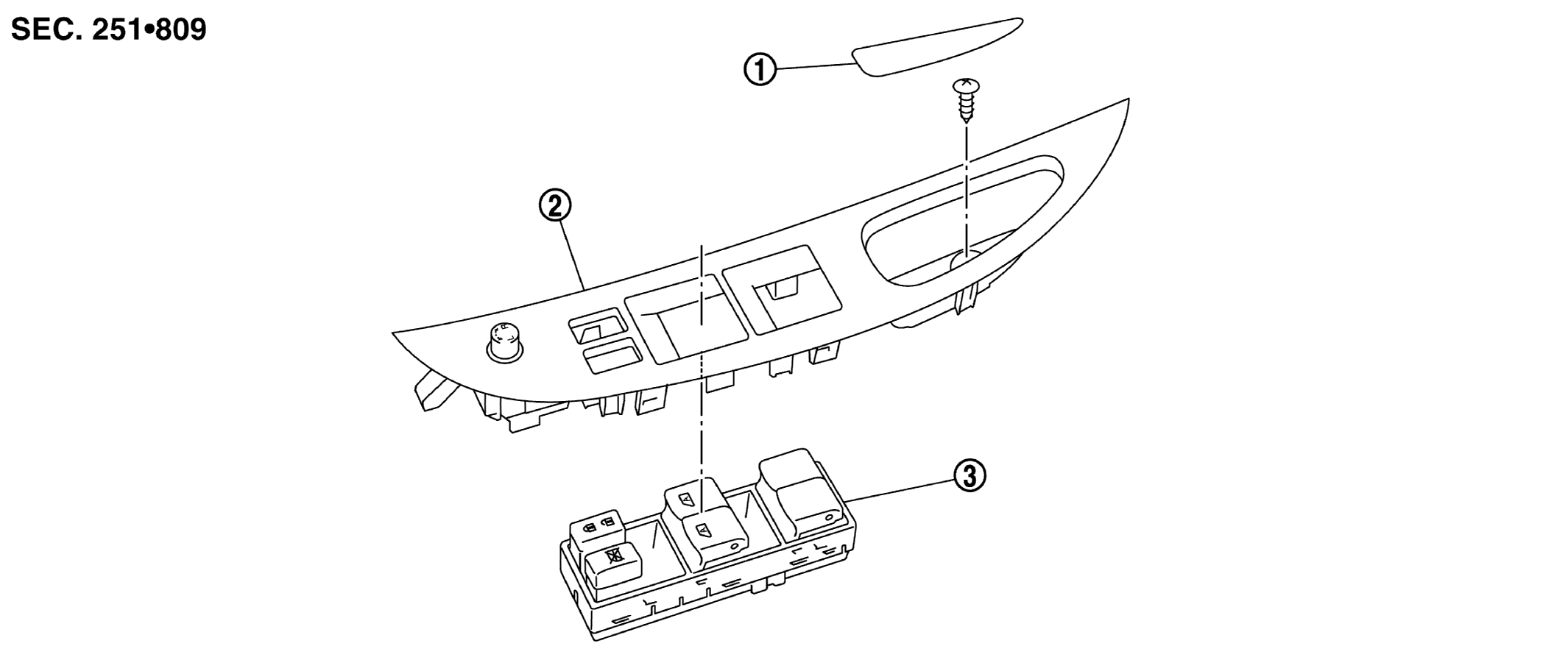

G06295201Courtesy of NISSAN NORTH AMERICA, INC.
1. Pull handle cover 2. Power window main switch finisher 3. Power window main switch
NOTE:

The same procedure is also performed for front power window switch (passenger side) and rear power switch (LH & RH).

Refer to removal and installation procedure. Refer to REMOVAL AND INSTALLATION .
