Diagnostic Test

  1. CHECK IGNITION TIMING

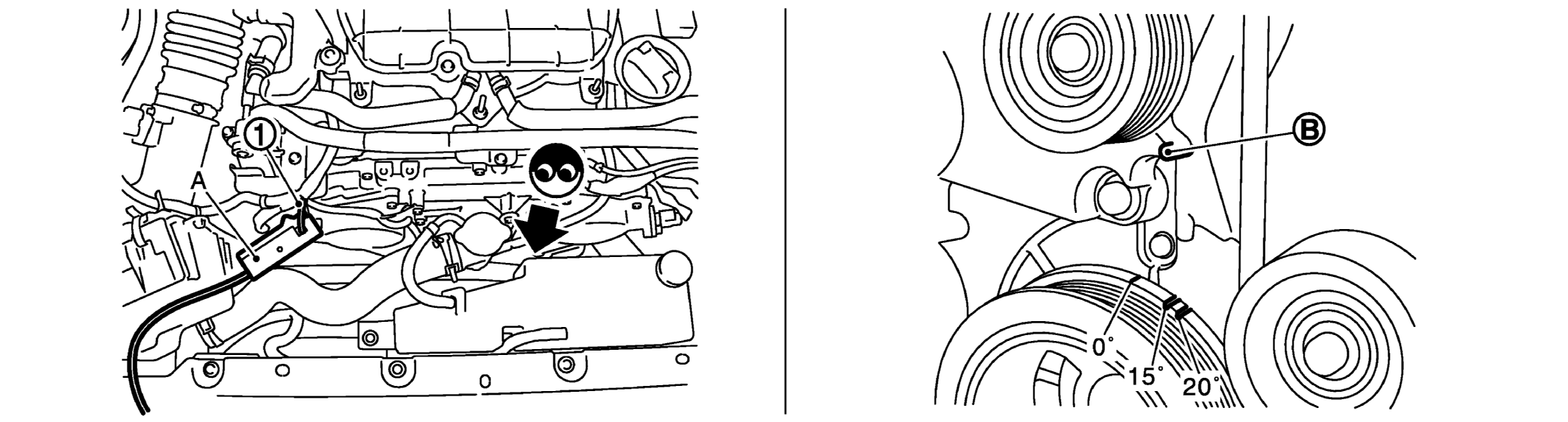

    1. Attach timing light to loop wire as shown.
      GNSJMBIA0846ZZ-846Courtesy of NISSAN NORTH AMERICA, INC.
      1. Loop wire
      A. Timing light B. Timing indicator
    2. Check ignition timing.

    INSPECTION END
