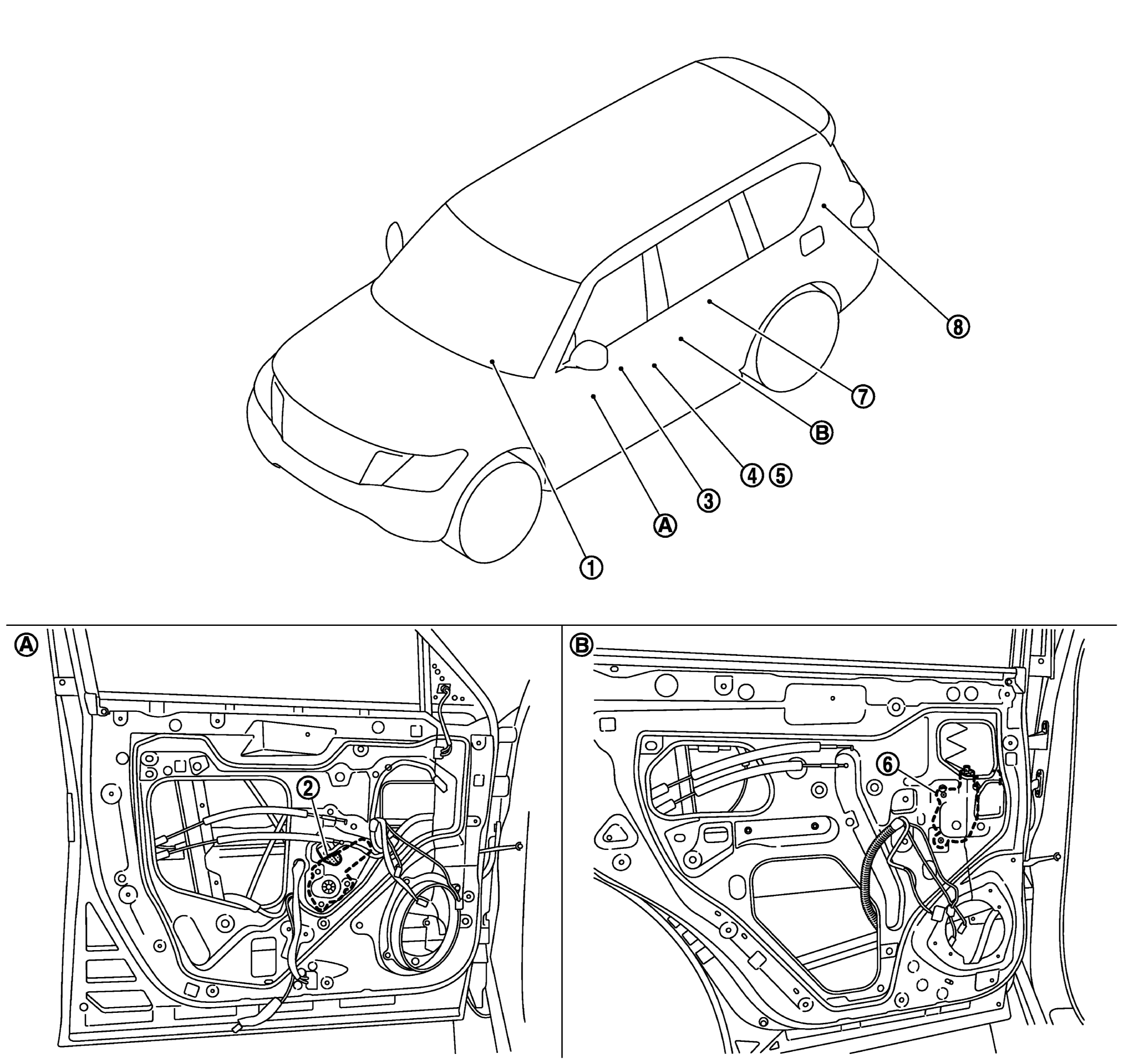

Component Location
| 1. | BCM Refer to COMPONENT LOCATION |
2. | Front power window motor (driver side) | 3. | Power window main switch |
| 4. | Front door lock assembly (driver side) (door key cylinder switch) | 5. | Front door switch (driver side) | 6. | Rear power window motor LH |
| 7. | Rear power window switch LH | 8. | Remote keyless entry receiver Refer to COMPONENT LOCATION |
||
| A. | View with front door finisher removed | B. | View with rear door finisher removed |
