Exploded View With Torque Specifications

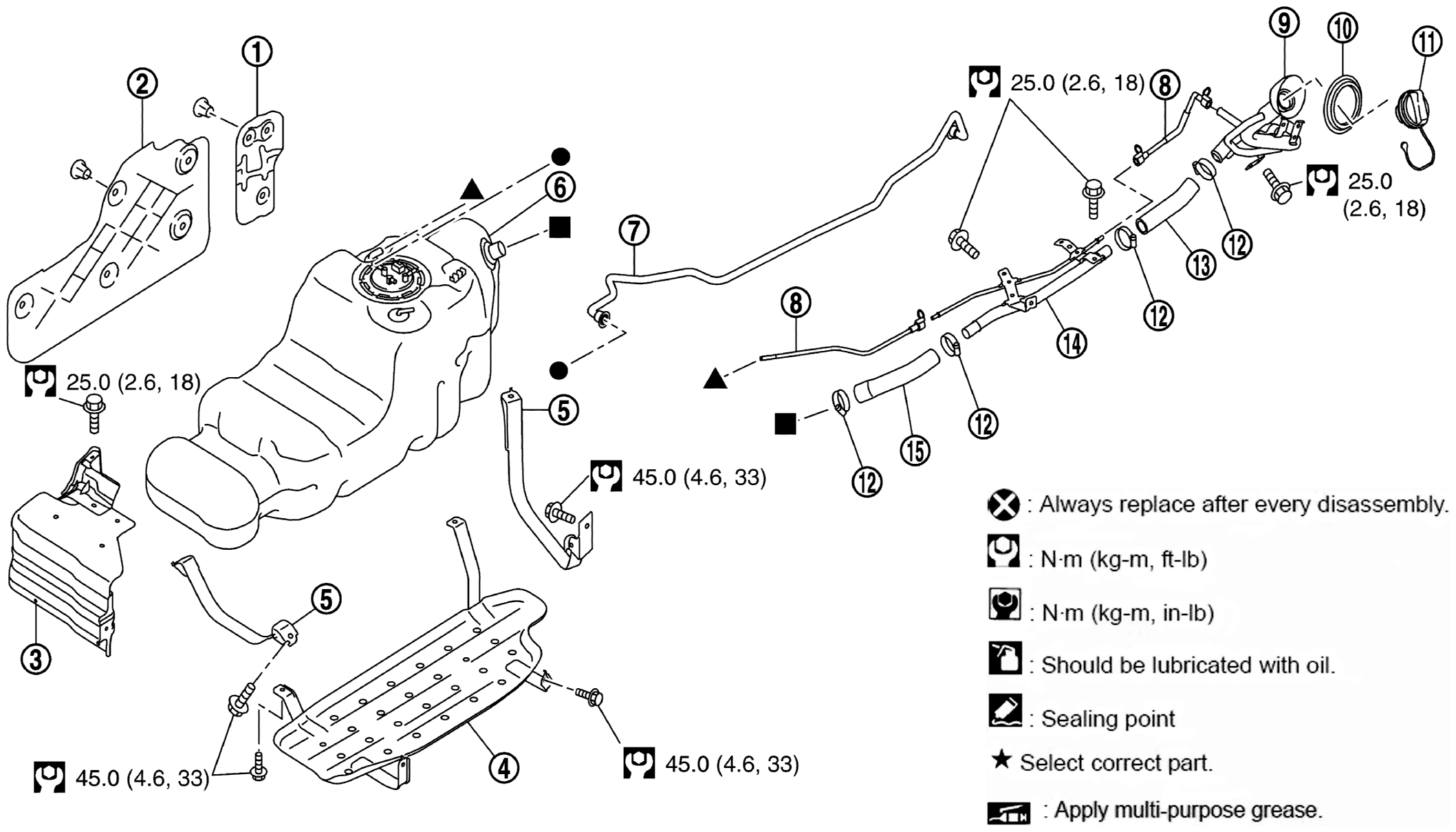

Fig 1: Fuel Tank Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel tank side protector	2.	Fuel tank side protector	3.	Fuel tank front protector
4.	Fuel tank protector	5.	Fuel tank mounting band	6.	Fuel tank
7.	Vent hose	8.	EVAP tube	9.	Fuel filler tube
10.	Grommet	11.	Fuel filler cap	12.	Clamp
13.	Fuel filler hose	14.	Fuel filler tube	15.	Fuel filler hose
, , : Indicates that the part is connected at points with same symbol in actual vehicle.
	: N•m (kg - m, ft - lb)
