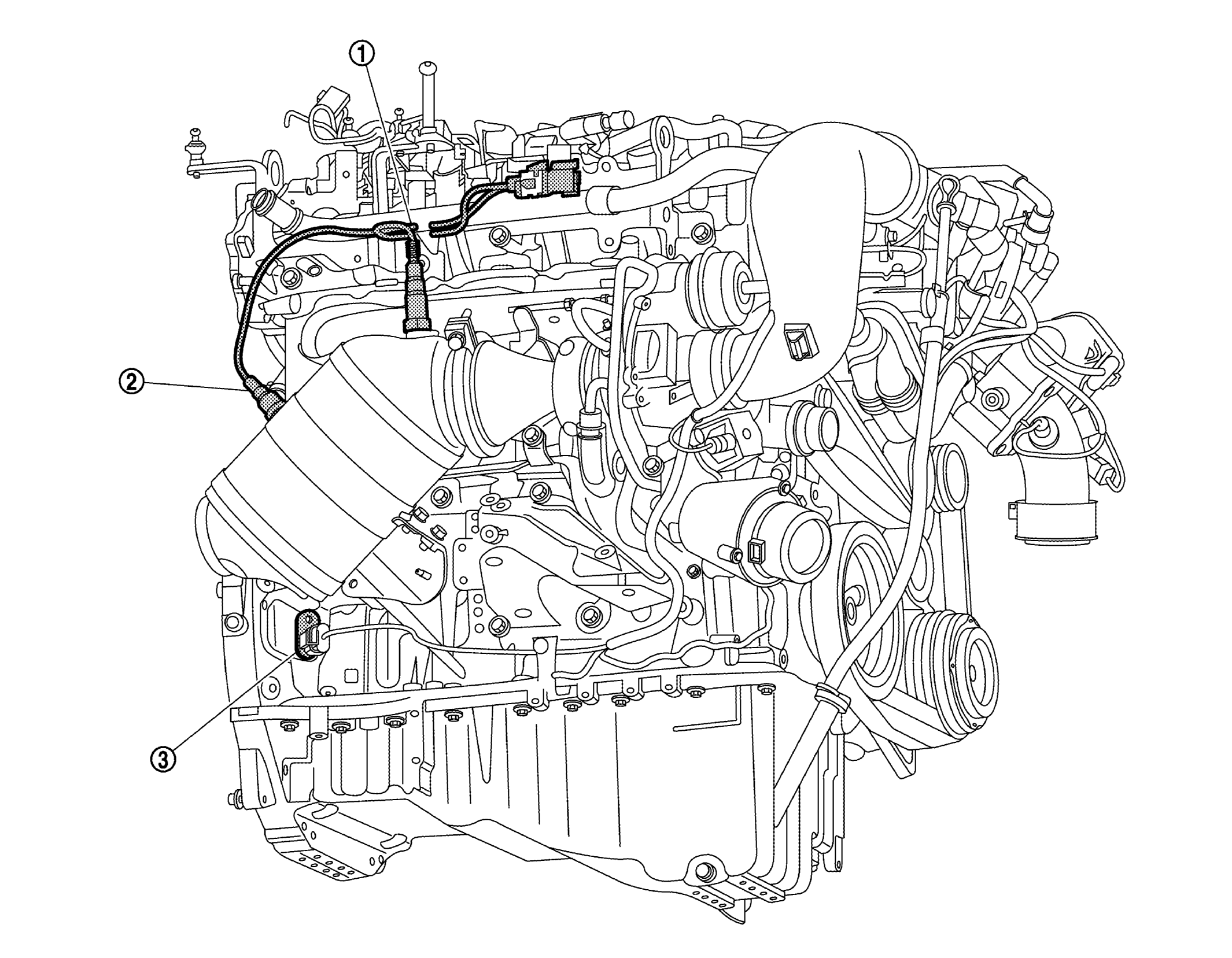

Engine Compartment (Right Side)

GNSJSBIA5240ZZ-240Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 A/F Sensor AIR-FUEL RATIO (A/F) SENSOR
WHITE-2 Heated Oxygen Sensor SYSTEM DESCRIPTION
WHITE-3 Crankshaft Position Sensor CRANKSHAFT POSITION SENSOR
