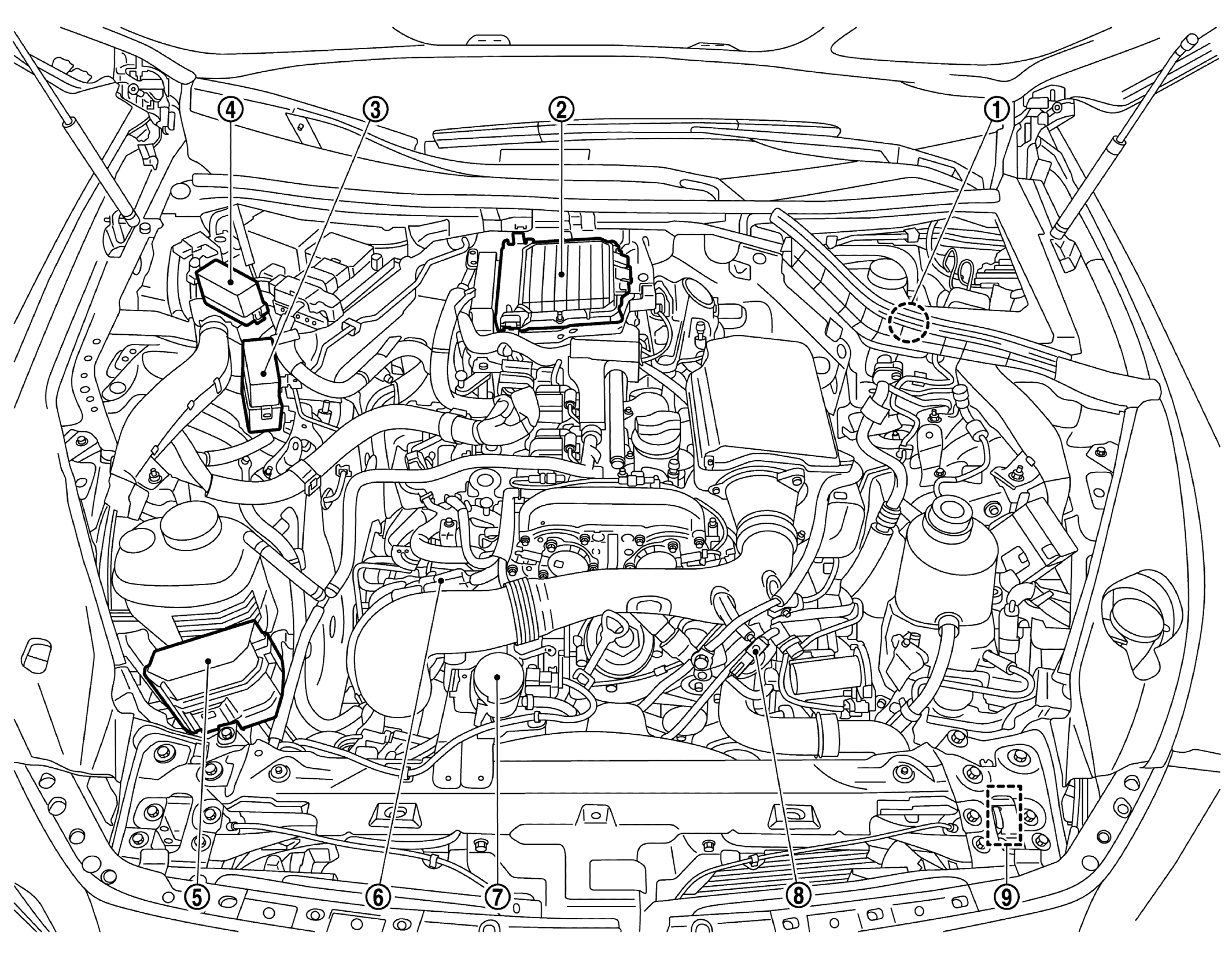

Engine Room Compartment
| No. | Component | Function |
|---|---|---|
| Vacuum Sensor | VACUUM SENSOR | |
| ECM | ECM | |
| Starter Relay | SYSTEM DESCRIPTION | |
| Main Relay | Supply power to ECM. | |
| Ignition Relay | SYSTEM DESCRIPTION | |
| Pressure Sensor Downstream Of Air Filter | PRESSURE SENSOR DOWNSTREAM OF AIR FILTER | |
| EVAP Purge Control Valve | HYDRAULIC LAYOUT | |
| EVAP Control System Pressure Sensor | The EVAP control system pressure sensor detects pressure in the purge line. | |
| Hood Switch | HOOD SWITCH |
