Circuit Diagram

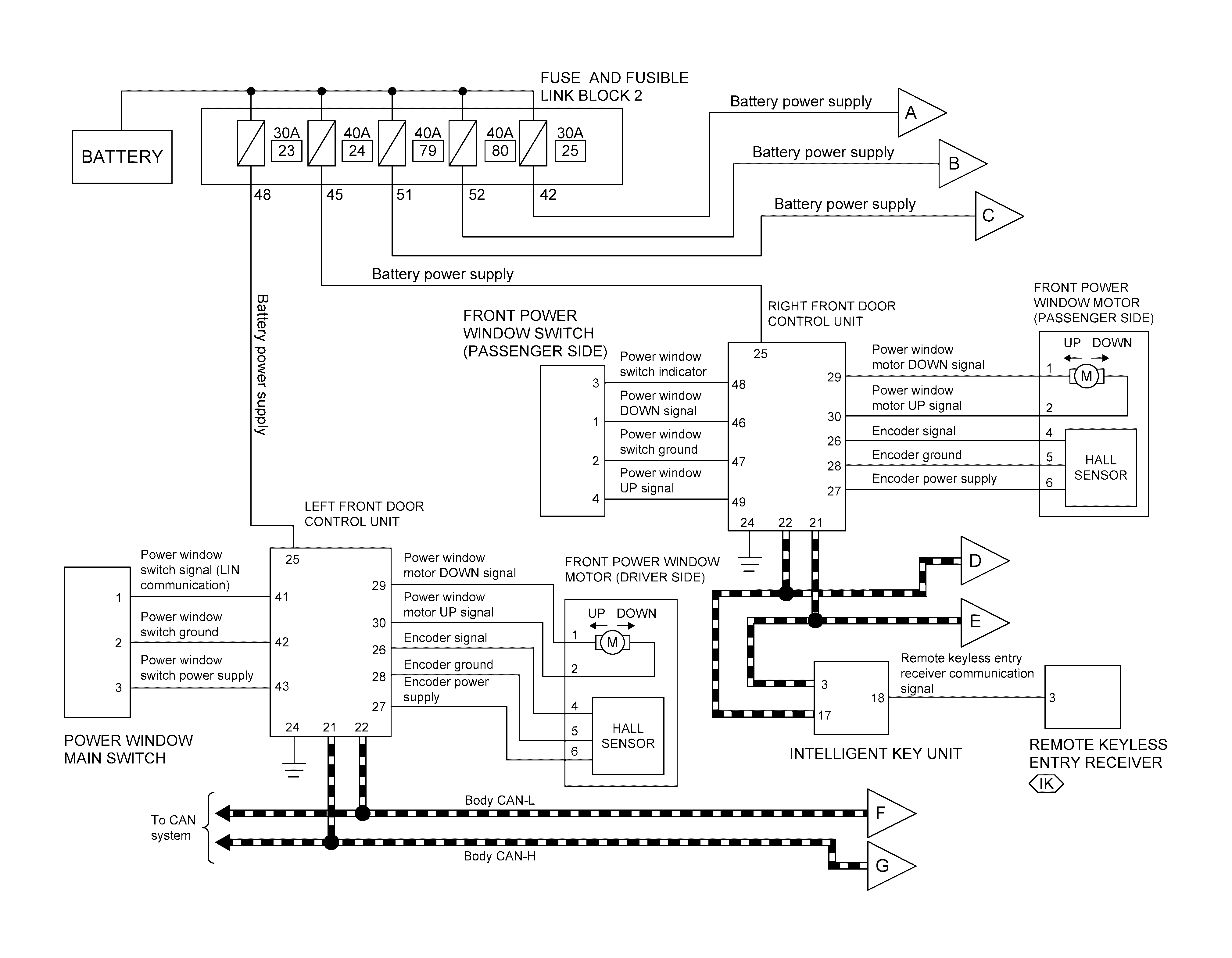

GNSJMKIB6579GB-579

Courtesy of NISSAN NORTH AMERICA, INC.

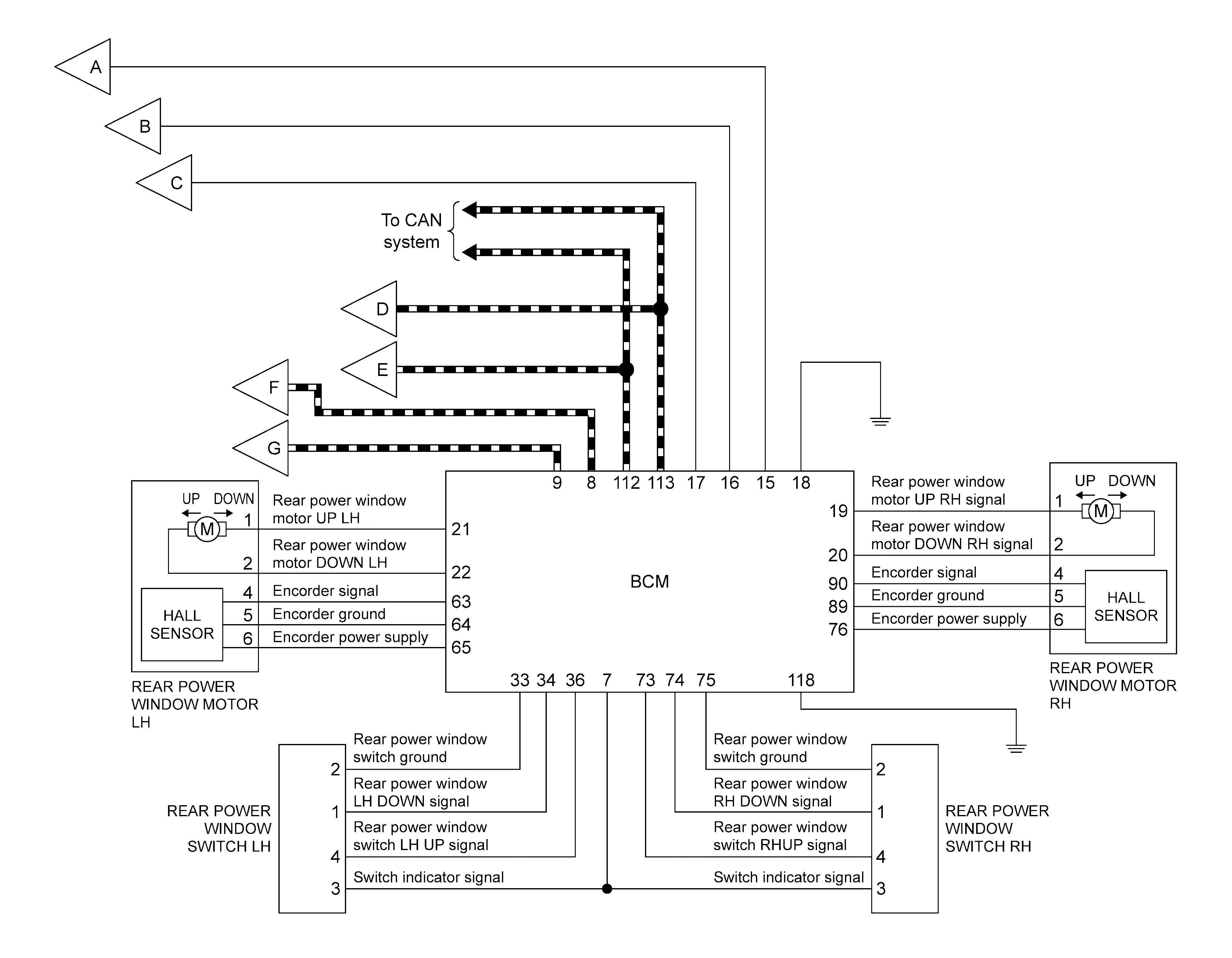

GNSJMKIB6449GB-449

Courtesy of NISSAN NORTH AMERICA, INC.

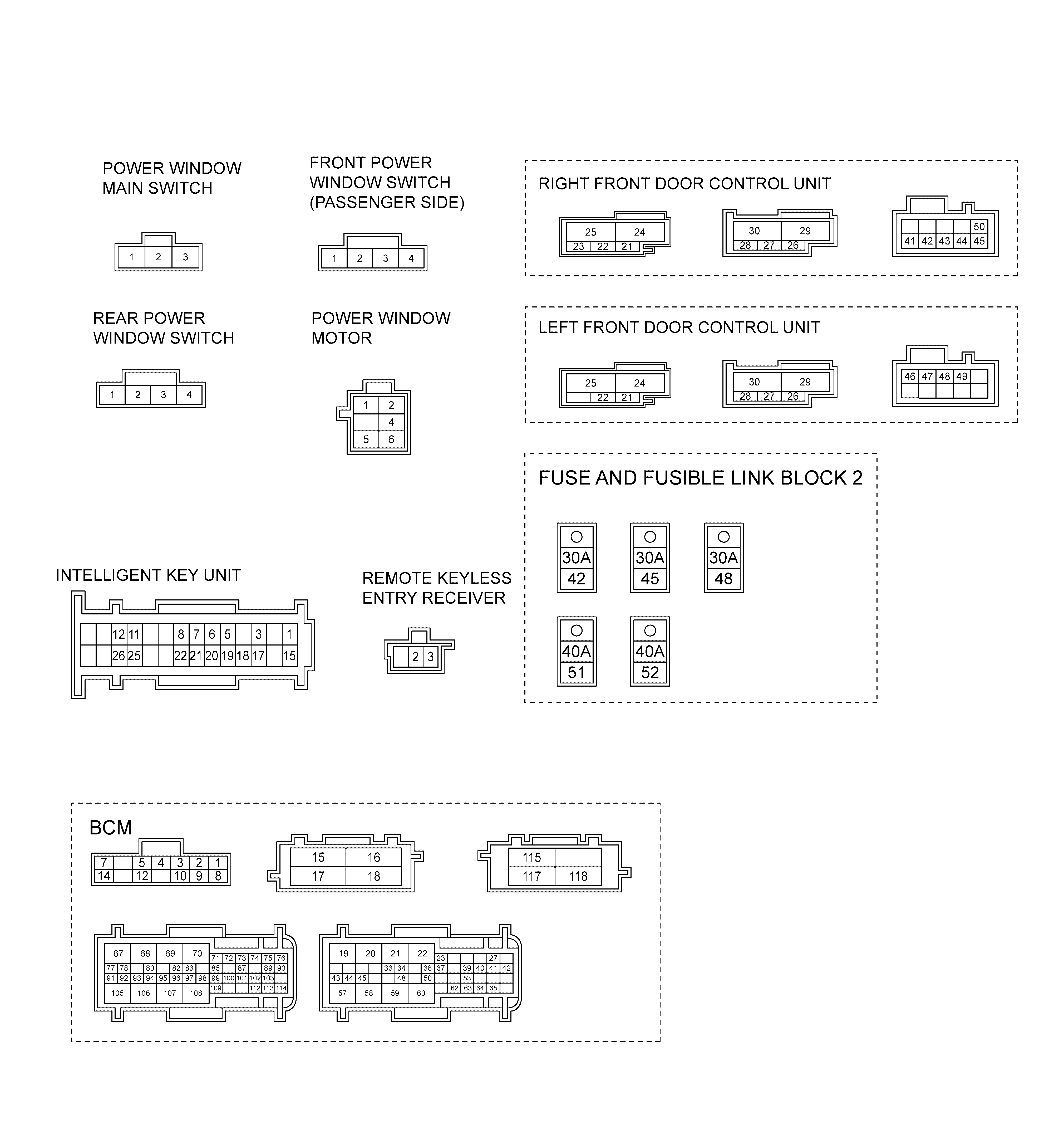

GNSJMKIB6580GB-580

Courtesy of NISSAN NORTH AMERICA, INC.
