Exploded View

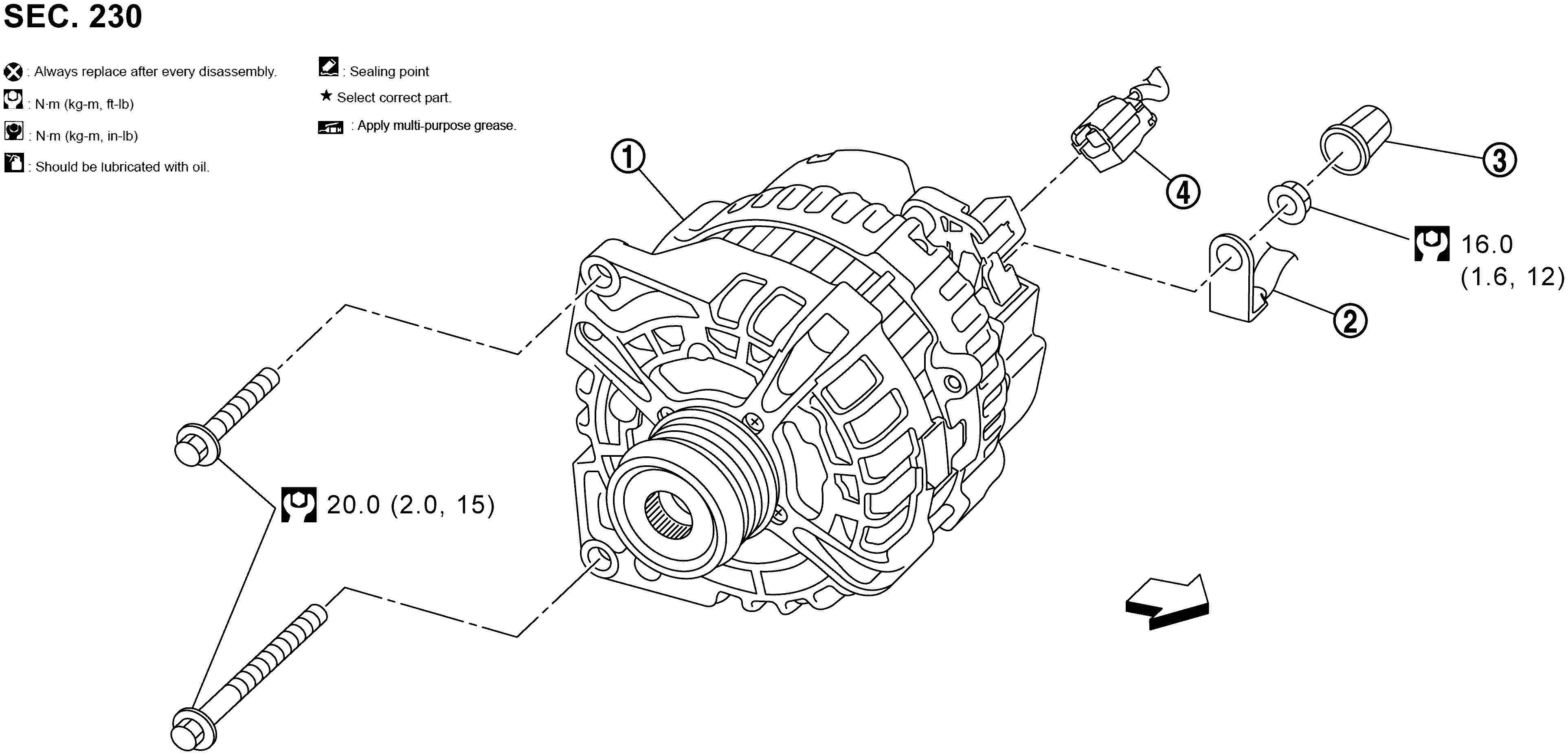

Fig 1: Alternator With Torque Specifications
GNSJMMIA2162GB-162WHITE-1WHITE-2WHITE-3WHITE-4ARROWBOLTCourtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Alternator WHITE-2 "B" terminal harness WHITE-3 Terminal cap
WHITE-4 Alternator connector
ARROW : Vehicle front
BOLT : N•m (kg-m, ft-lb)
