Exploded View With Torque Specifications

2WD

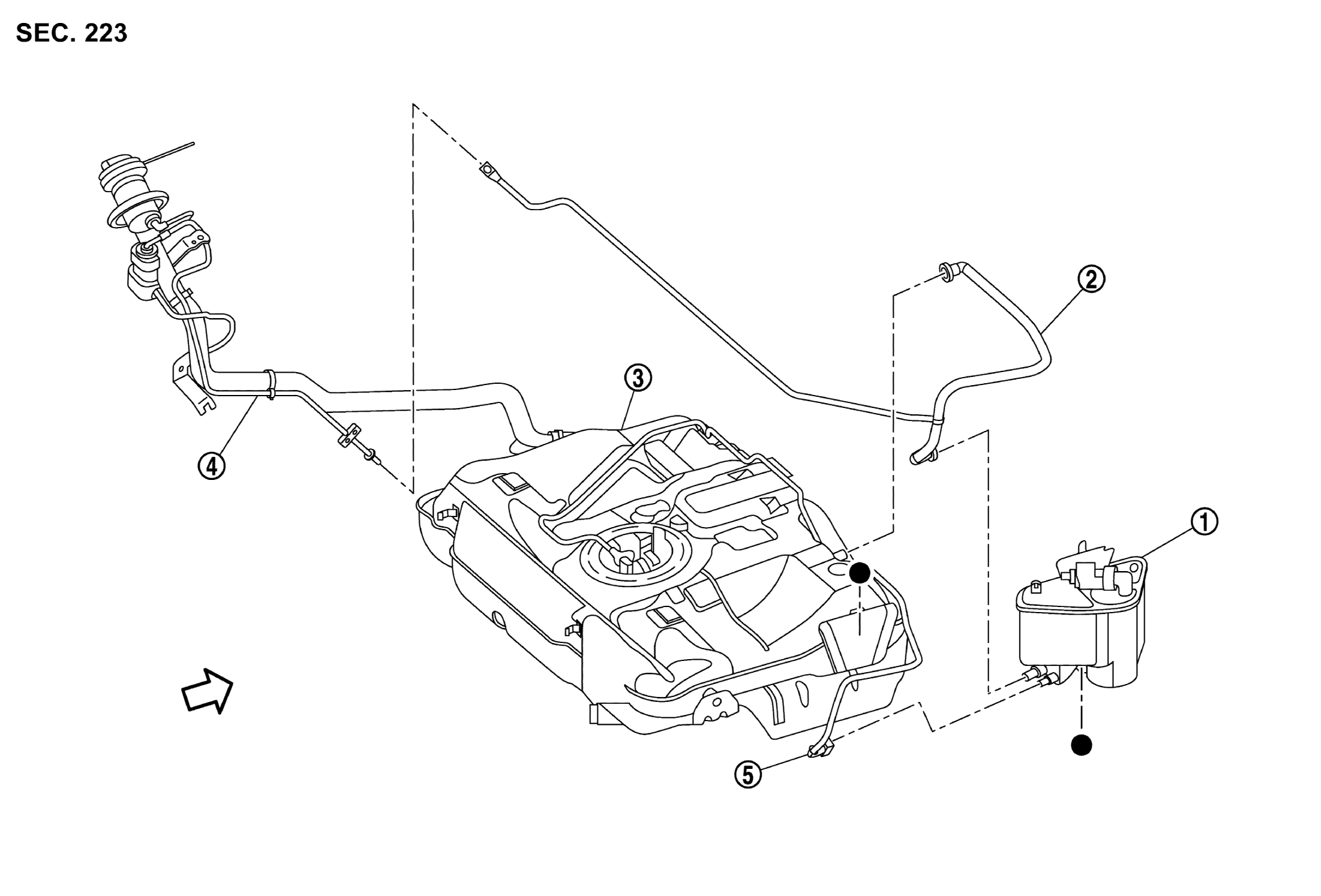

Fig 1: Evap Canister 2WD With Torque Specifications
GNSJSBIB0248ZZ-248Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 EVAP canister WHITE-2 EVAP tube WHITE-3 Fuel tank
WHITE-4 Fuel filler tube WHITE-5 EVAP tube
ARROW : Vehicle front
CIR-B : Indicates that the part is connected at points with same symbol in actual vehicle.

AWD models

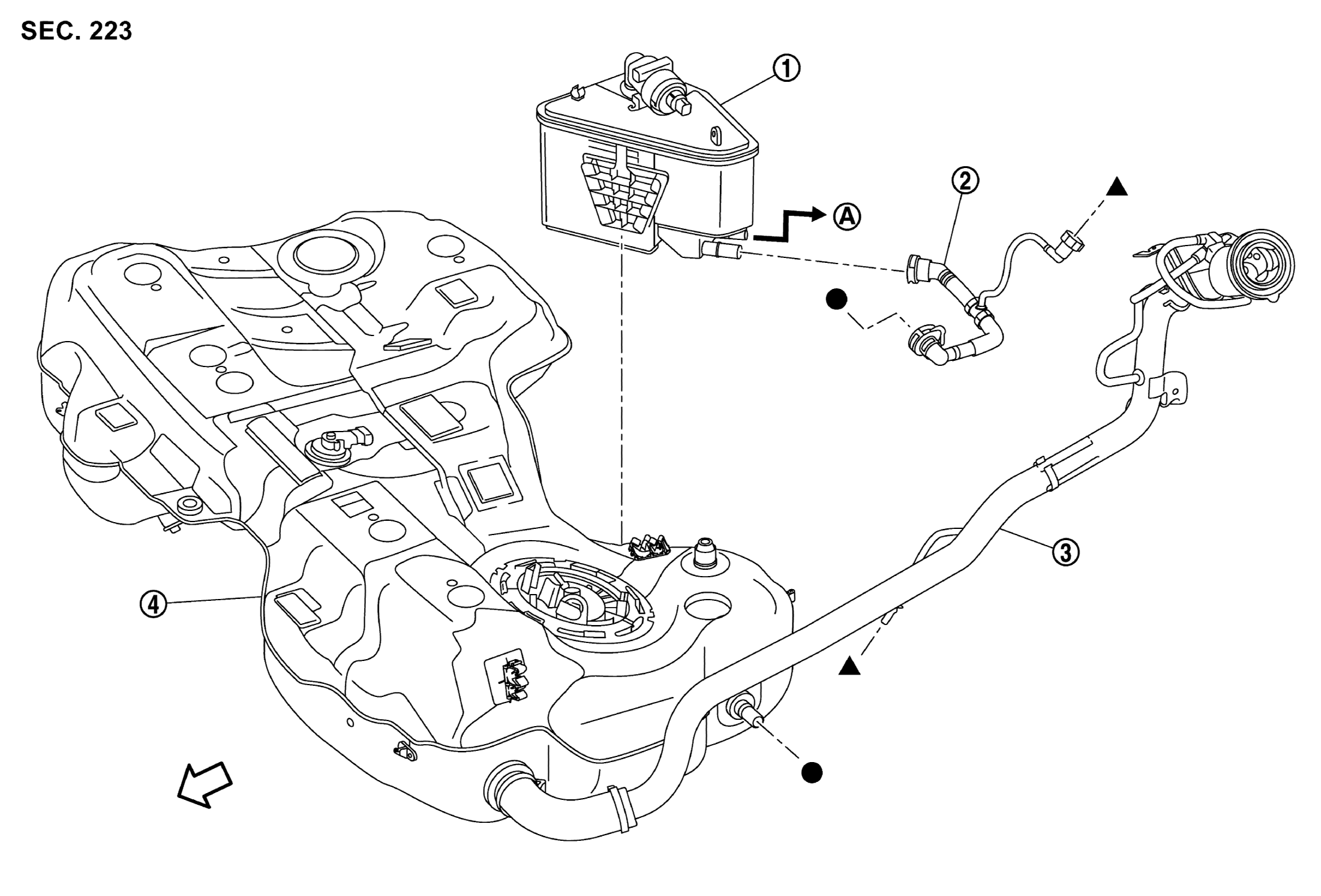

Fig 2: Evap Canister AWD With Torque Specifications
GNSJSBIB0241ZZ-241Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 EVAP canister WHITE-2 EVAP tube WHITE-3 Fuel filler tube
WHITE-4 Fuel tank
MARU-A-W To EVAP purge control valve
ARROW : Vehicle front
CIR-B , UTRIF : Indicates that the part is connected at points with same symbol in actual vehicle.
