Exploded View With Torque Specifications

2WD

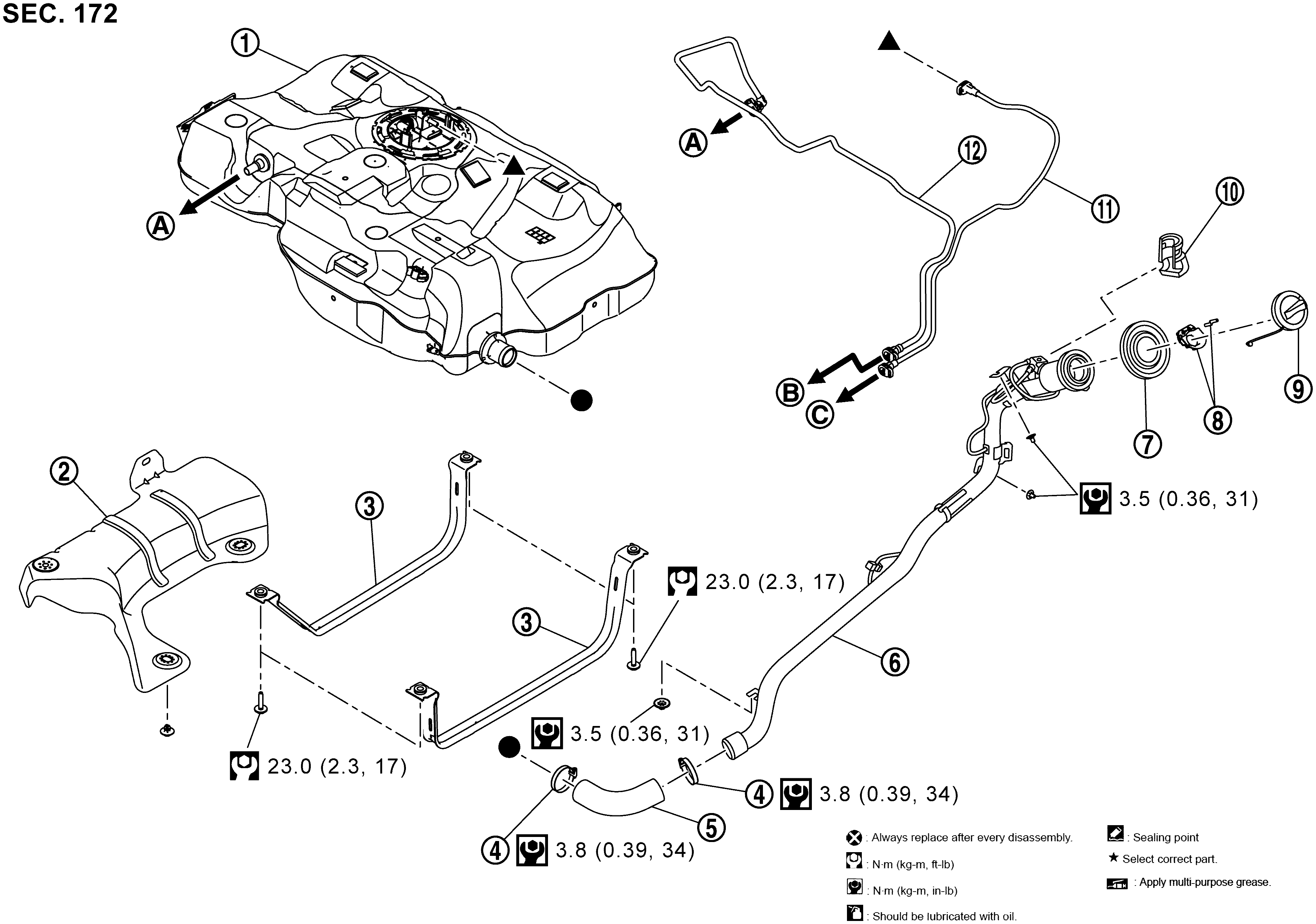

Fig 1: Fuel Tank 2WD With Torque Specifications

GNSJSBIB0247GB-247

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel tank		Fuel tank insulator		Fuel tank mounting band
	Clamp		Fuel filler hose		Fuel filler tube
	Grommet		Guide shutter assembly		Fuel filler cap
	Vent tube bracket		Fuel tube		EVAP tube
	To EVAP canister		To EVAP purge control valve		To high pressure fuel pump
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

AWD models

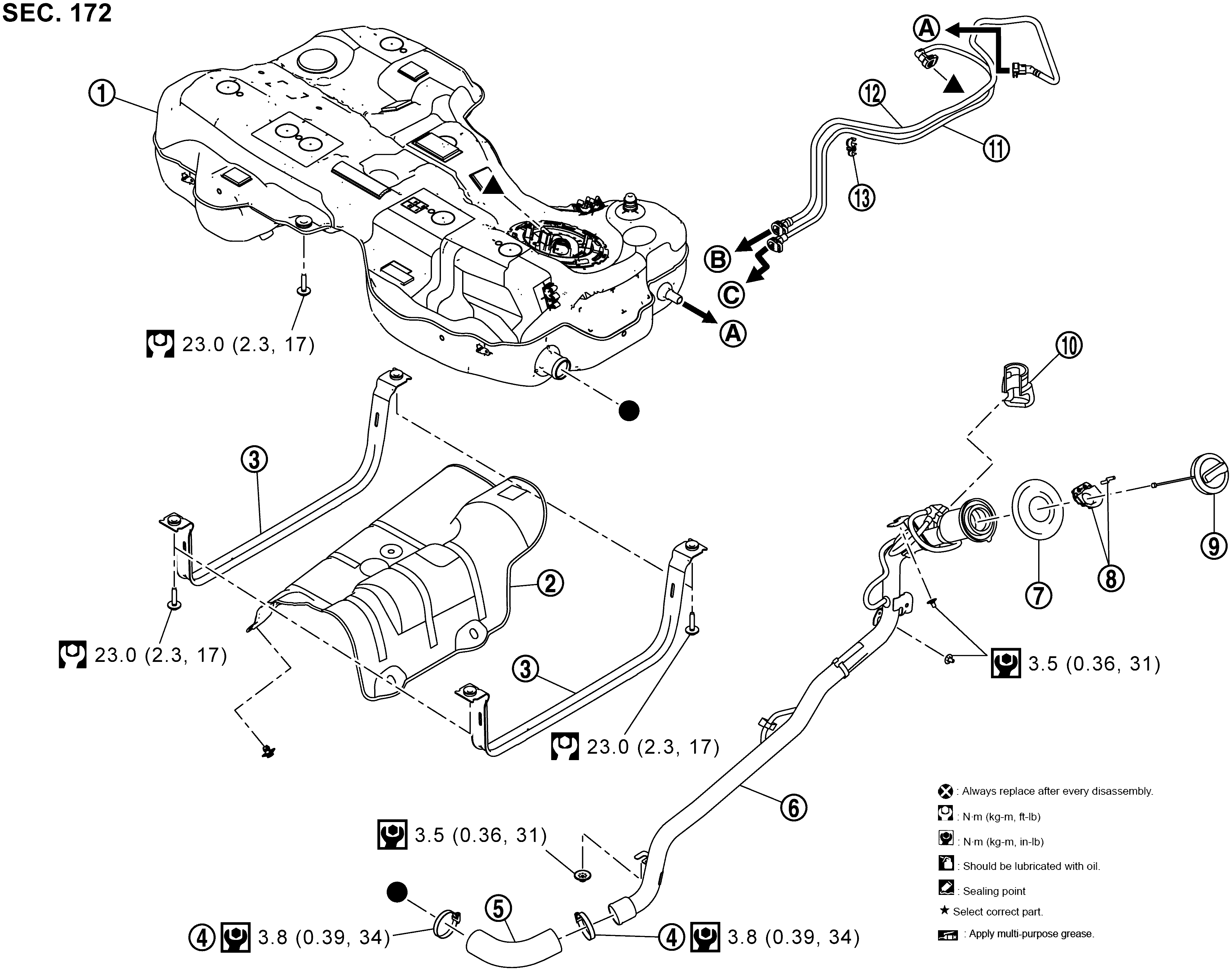

Fig 2: Fuel Tank AWD With Torque Specifications

GNSJSBIB0240GB-240

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel tank		Fuel tank insulator		Fuel tank mounting band
	Clamp		Fuel filler hose		Fuel filler tube
	Grommet		Guide shutter assembly		Fuel filler cap
	Vent tube bracket		Fuel tube		EVAP tube
	Clamp
	To EVAP canister		To EVAP purge control valve		To high pressure fuel pump
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
