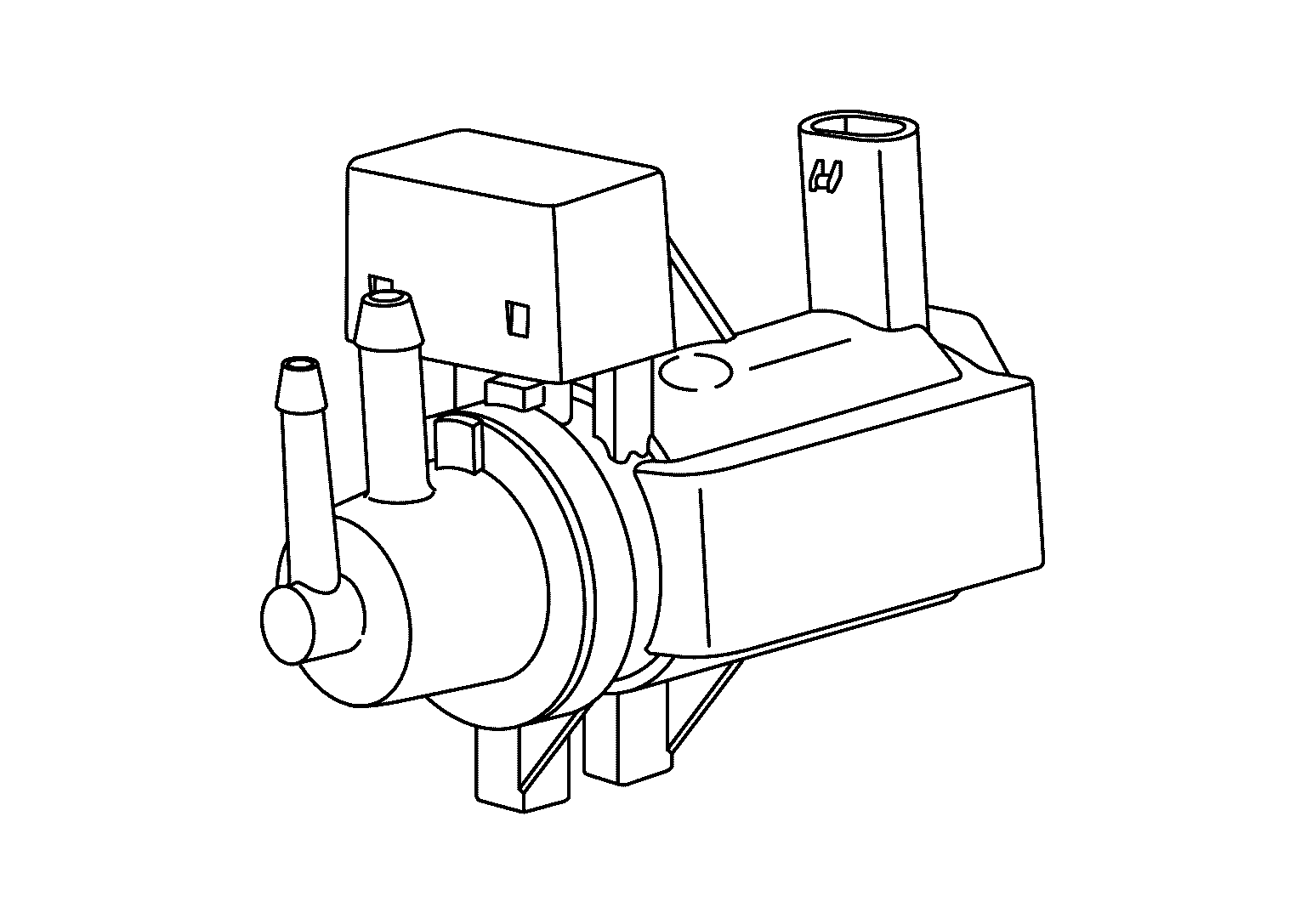

Boost Pressure Control Vacuum Transducer
The charge air control is performed by the electropneumatic boost pressure control vacuum transducer. ECM controls the boost pressure control vacuum transducer and adjusts negative pressure placed on the boost pressure control flap vacuum actuator. ECM adjusts boost pressure by controlling the boost pressure control vacuum transducer according to the characteristics map and negative pressure.
