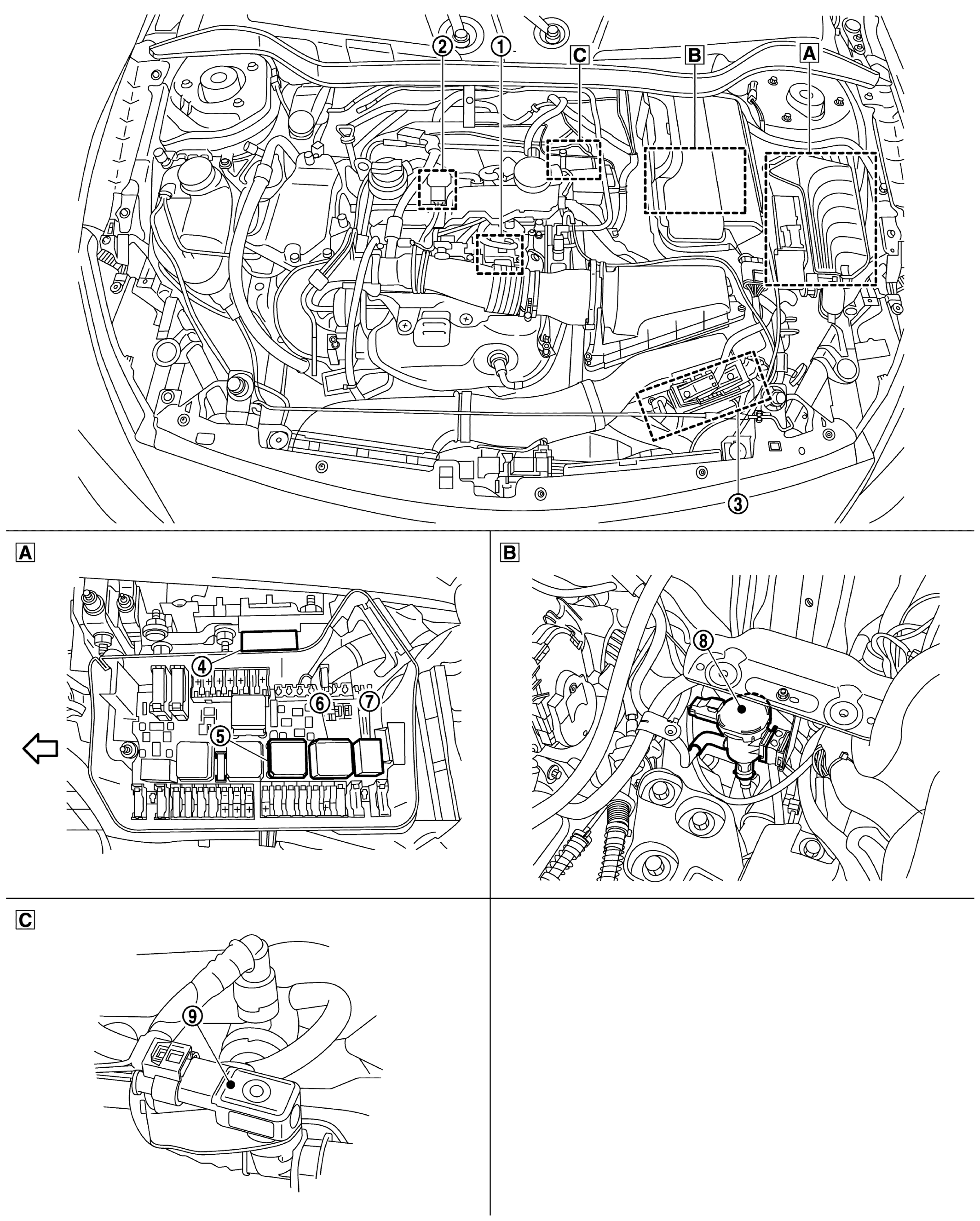

Pressure sensor downstream of air filter |
PRESSURE SENSOR DOWNSTREAM OF THROTTLE VALVE |
 |
Intake camshaft valve lift switchover |
INTAKE CAMSHAFT VALVE LIFT SWITCHOVER |
 |
ECM |
ECM |
 |
Decoupling relay |
The decoupling relay is controlled by BCM and changes power supply circuit of on-board electrical system while restart the engine. (stop/start system)
For the details of the control, refer to SYSTEM DESCRIPTION . |
 |
Starter relay |
The decoupling relay is controlled by ECM and supplies battery voltage to starter motor. For the details of control, refer to SYSTEM DESCRIPTION . |
 |
Motor relay |
The motor relay is controlled by ECM and supplies battery voltage to ECU, actuator, sensor, and etc. |
 |
Water pump relay |
The water pump relay is controlled by ECM and supplies battery voltage to water pump. For the details of the control. |
 |
EVAP purge control valve |
EVAP PURGE CONTROL VALVE |
 |
EVAP control system pressure sensor |
The EVAP control system pressure sensor detects pressure in the purge line. |
