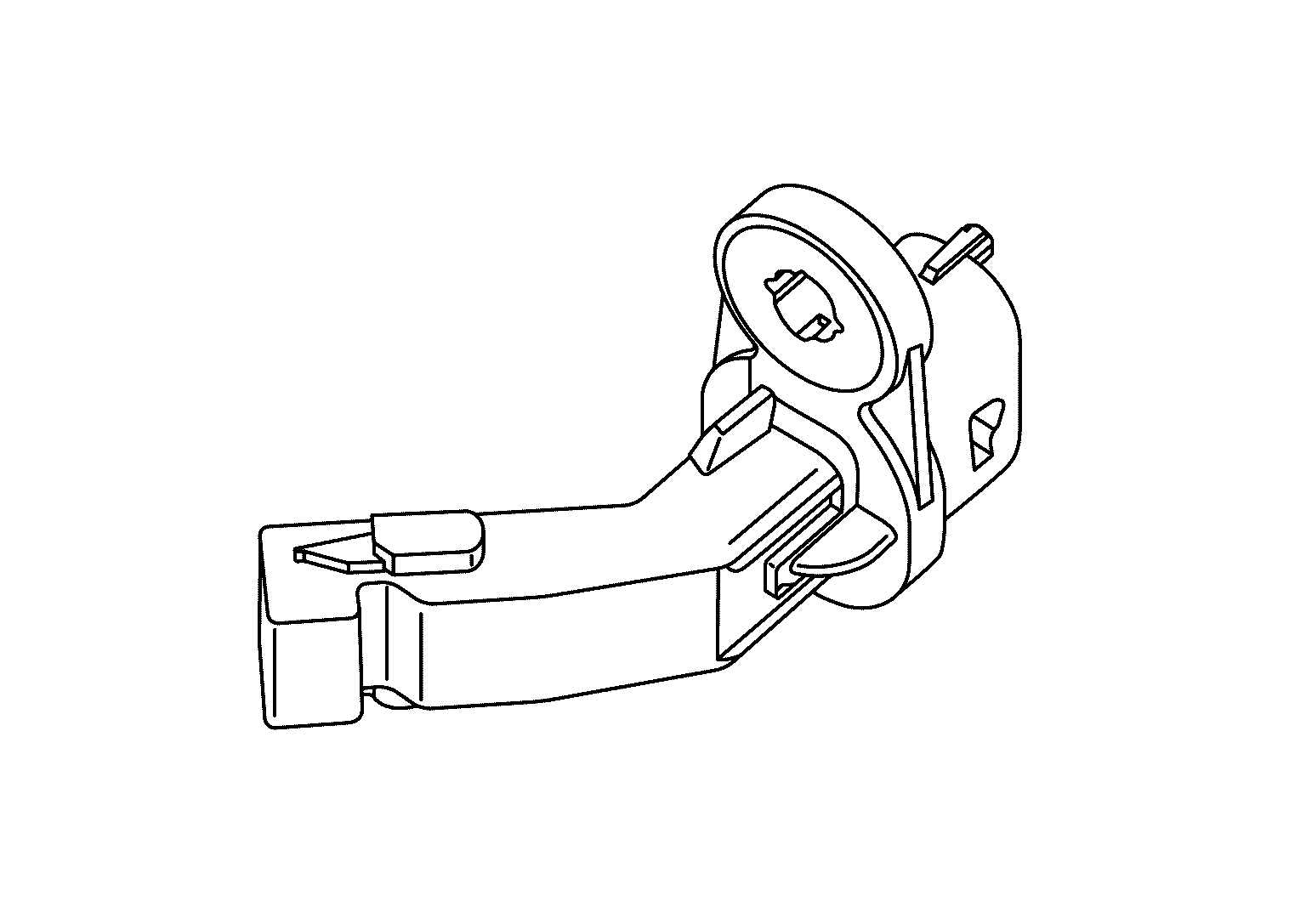

Crankshaft Position Sensor
The crankshaft position sensor is the hall principle sensor.
Since the crankshaft position sensor is installed opposed to the multi-pulse wheel, pulse signals of 5 V and 0 V are generated during the rotation of crankshaft. ECM transmits a short-resistant engine speed signal via CAN communication based on a signal of crankshaft position sensor.
NOTE:
When ECM can not receive the crankshaft position sensor signal, commute the intake camshaft position sensor signal and exhaust camshaft position sensor signal to enable driving.
