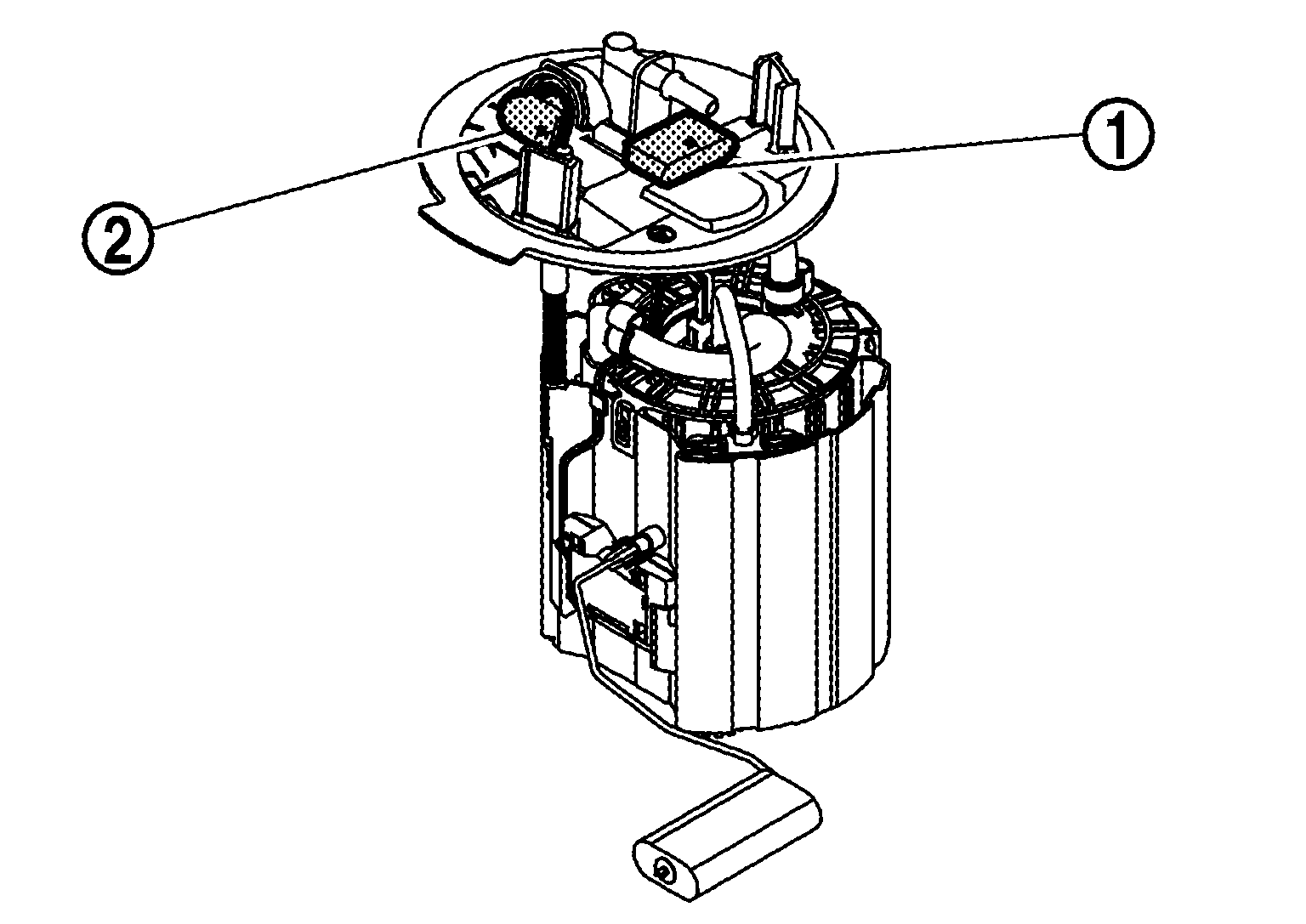

Fuel Pump

Fuel pump is integrated with a fuel pressure regulator and a fuel filter. This pump is built into the fuel tank.

Courtesy of NISSAN NORTH AMERICA, INC.

ECM controls the fuel pressure via FPCM.

: Fuel pressure sensor
