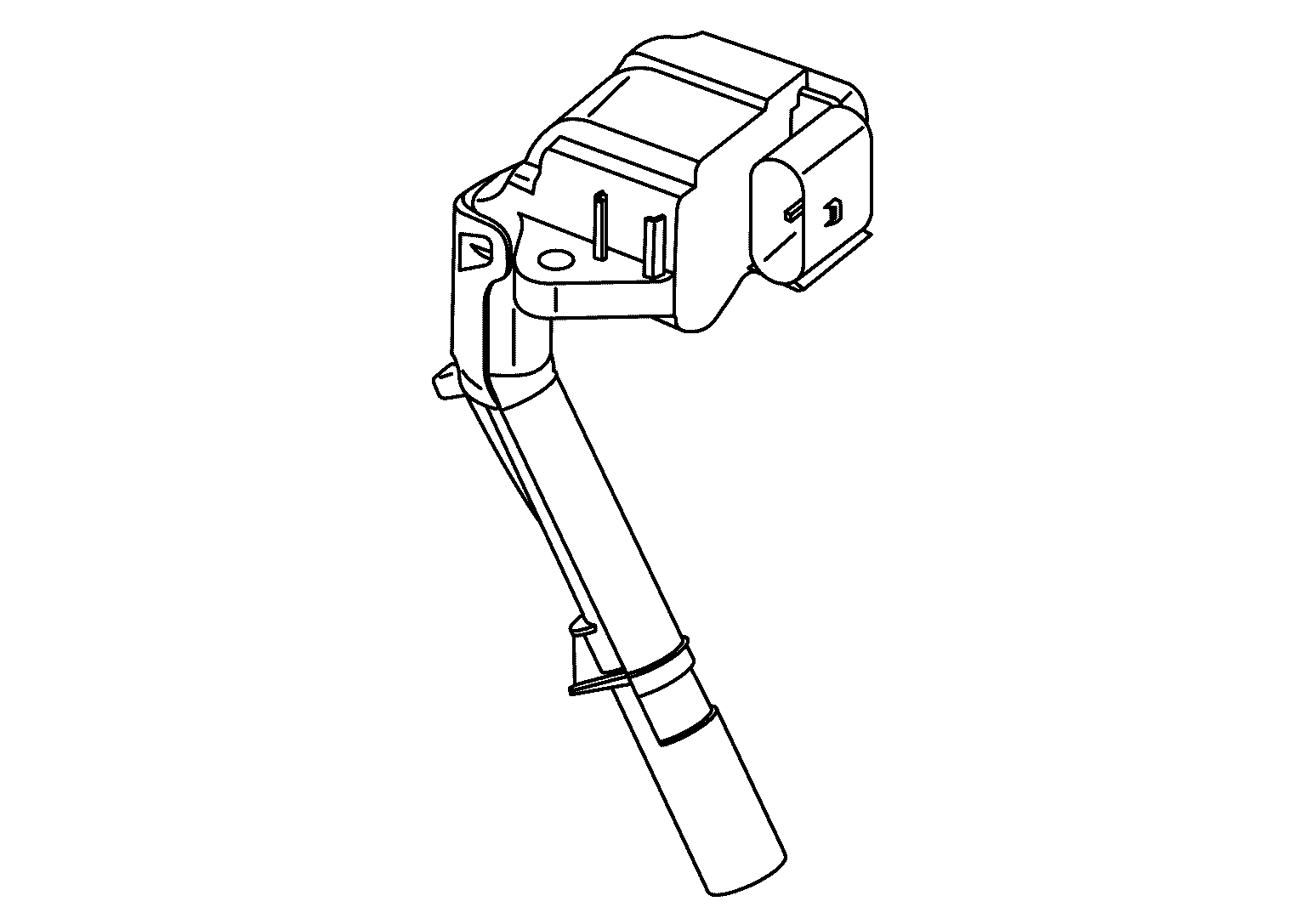

Ignition Coil
The ignition coils are designed as single spark ignition coils with integrated ignition output stage and are connected directly to the spark plugs via short ignition lines. The ignition coils are actuated separately via a control line by the ECM. In addition, diagnosis information from the ignition output stages can be passed on to the ECM via this control line.
