Intake Camshaft Valve Lift Switchover

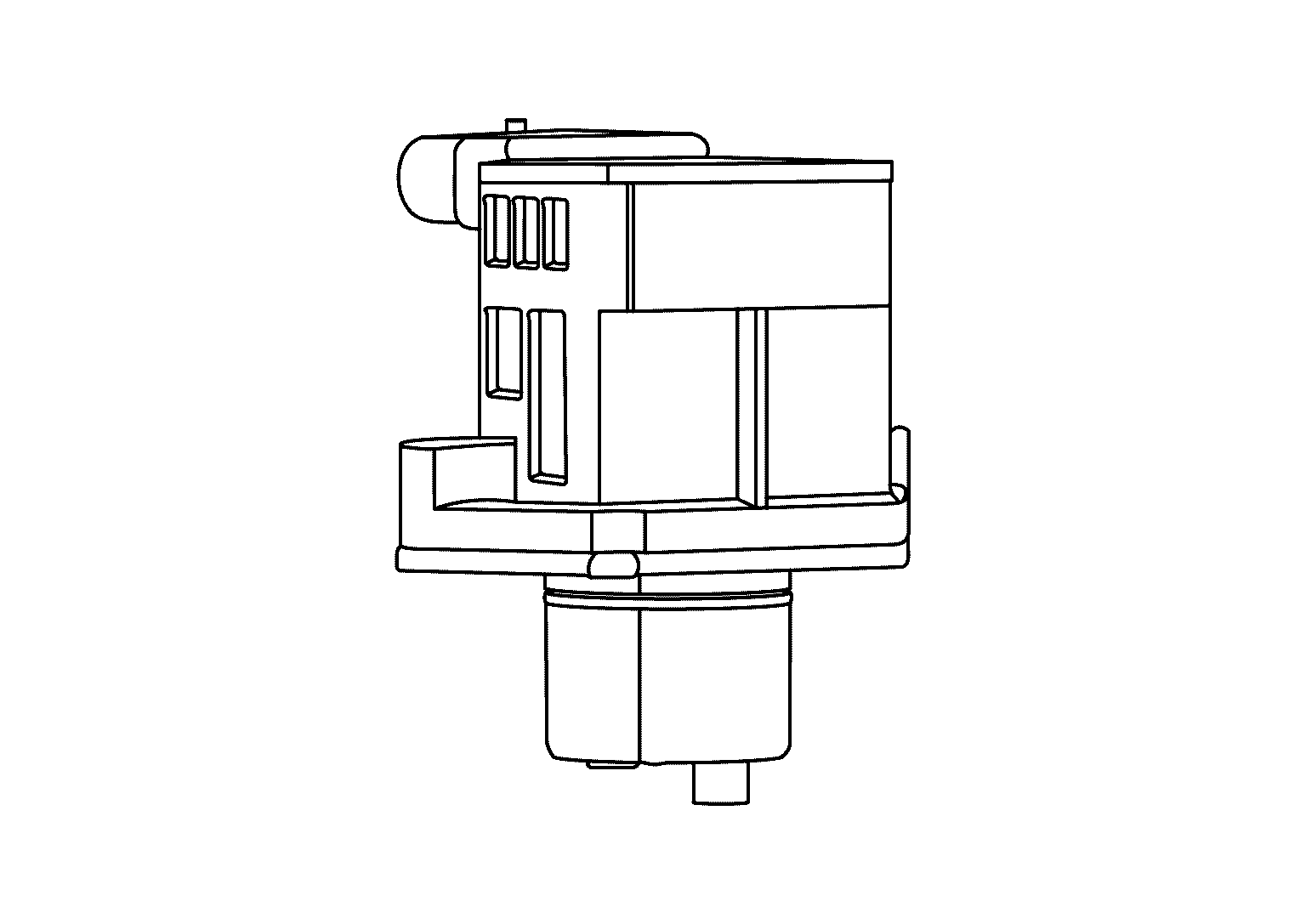

The camtronic system comprises a carrier shaft with cam pieces which can be shifted axially, as well as an electromagnetically actuated lift solenoid with two tappets which enable a forward and backward movement. A position sensor element monitors the positions of the tappets.

Courtesy of NISSAN NORTH AMERICA, INC.
