Engine Control System (Introduction)
>>
System Description
>>
System
>>
Engine Control System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

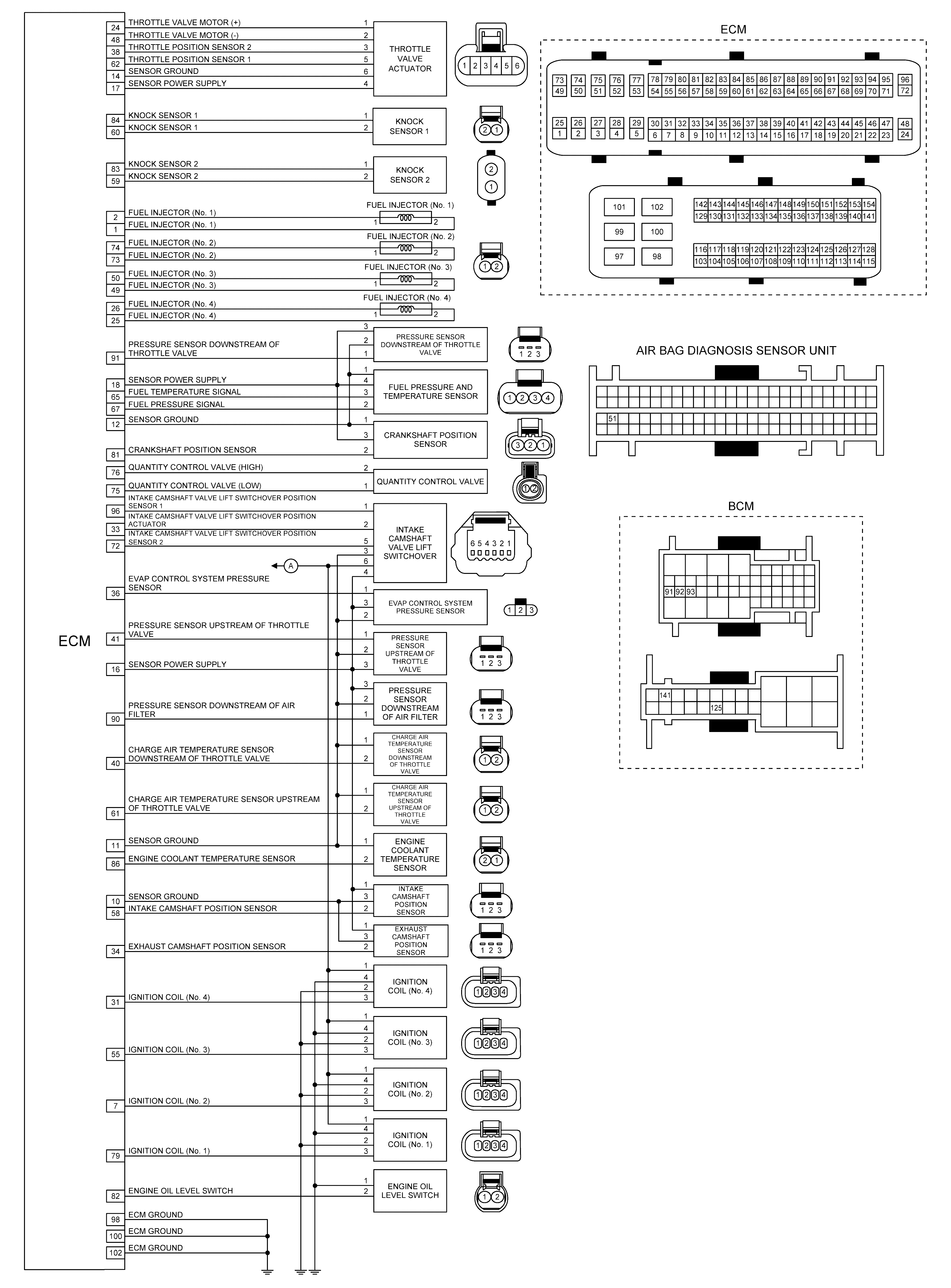

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Cooling fun motor of 600 W models is not applicable.

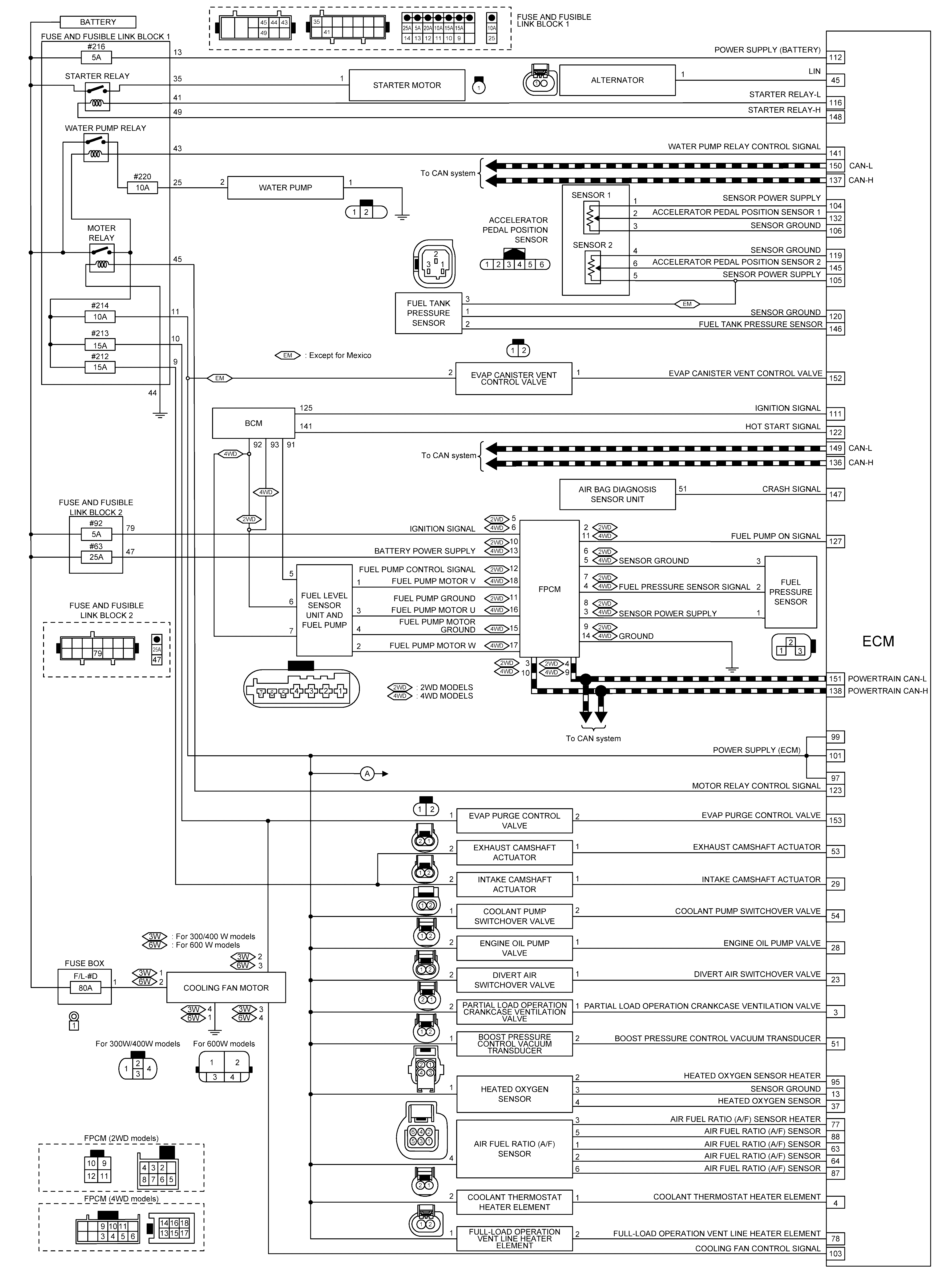

Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
