QX30 Transmission Internal Function (1VF12)

Publication date: 2016-09-01
Reference number: 1VF12

QX30 TRANSMISSION INTERNAL FUNCTION

QX30 TRANSMISSION INTERNAL FUNCTION

TECHNICAL INFORMATION TIPS

Reference Number(s): 1VF12, Date of Issue: September 01, 2016

INFINITI:

QX30

QX30 TRANSMISSION INTERNAL FUNCTION

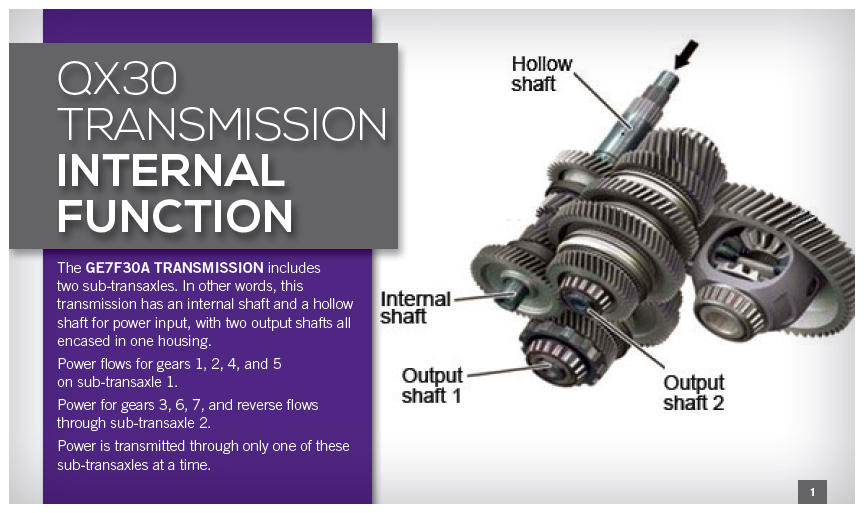

G10850708

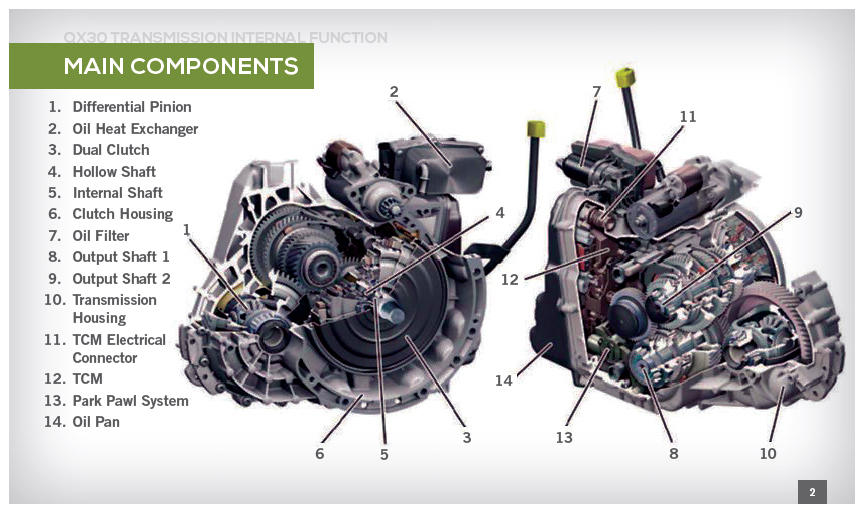

G10850709

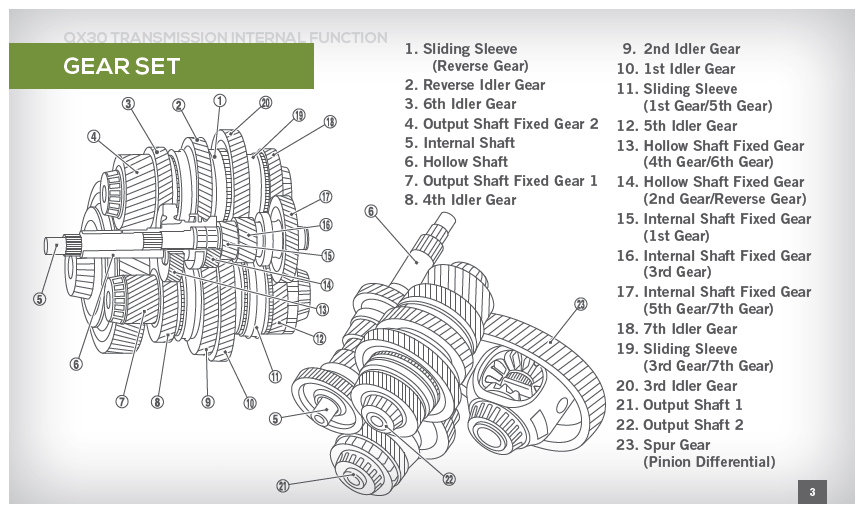

G10850710

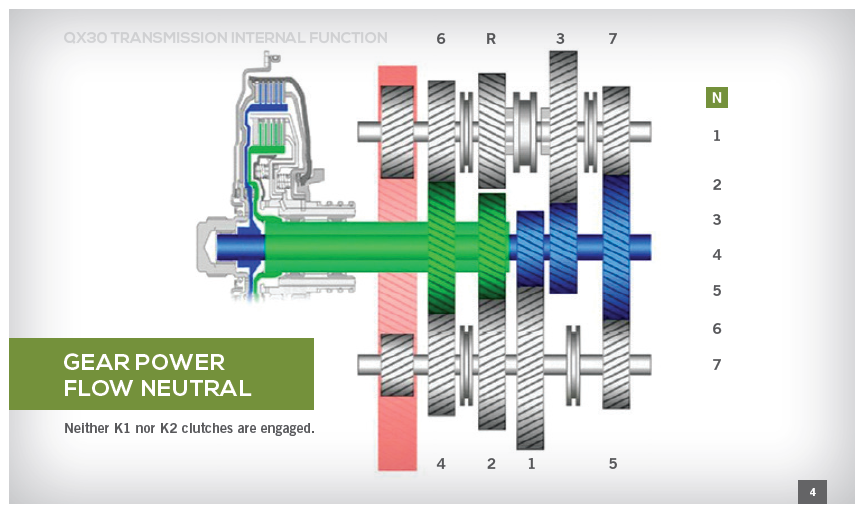

G10850711

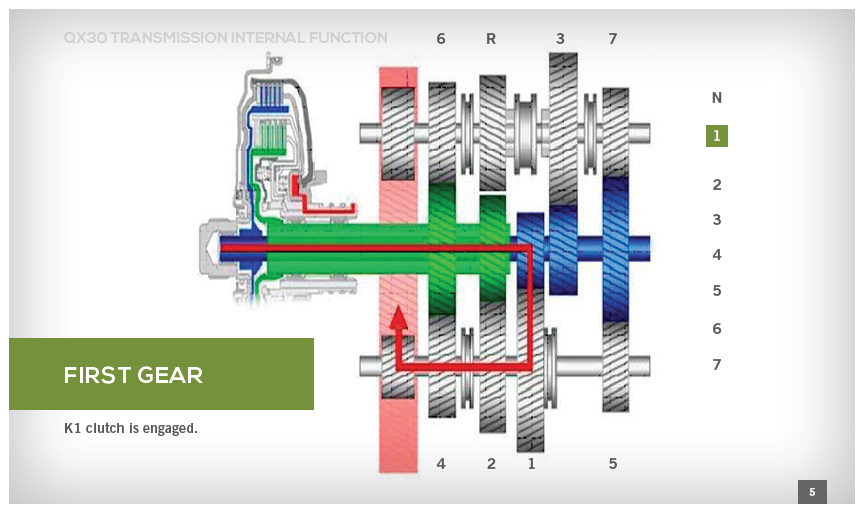

G10850712

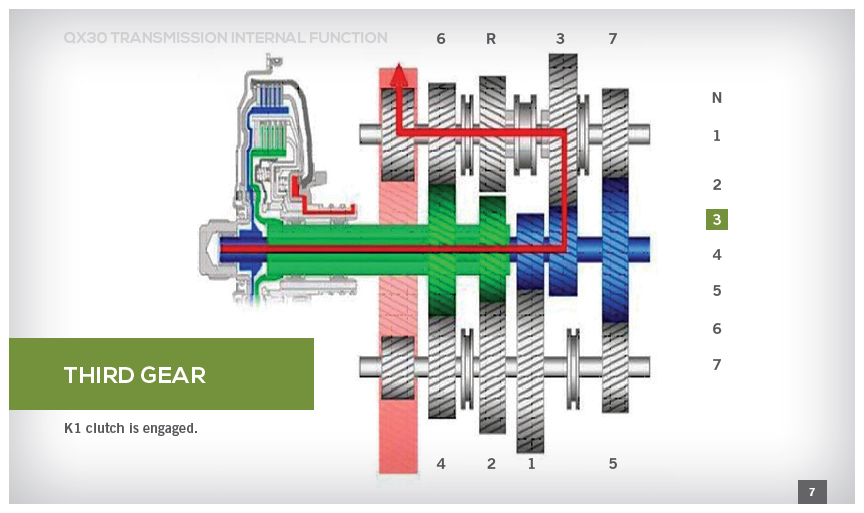

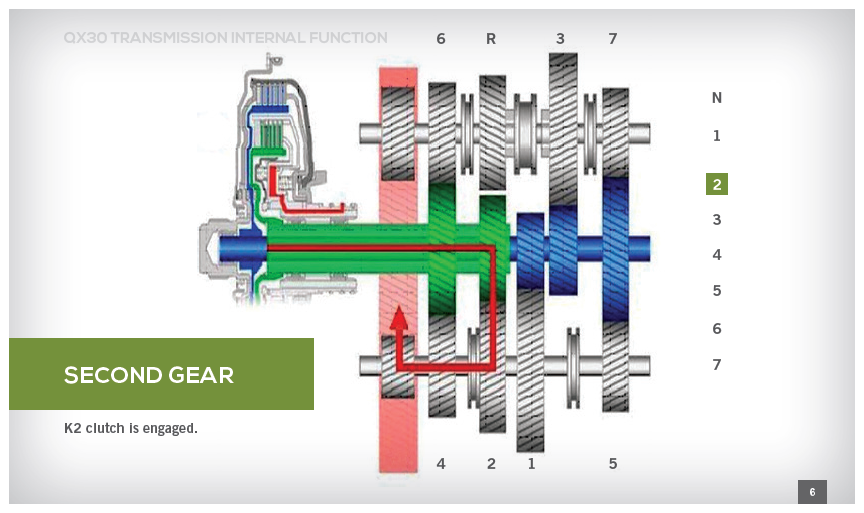

G10850713

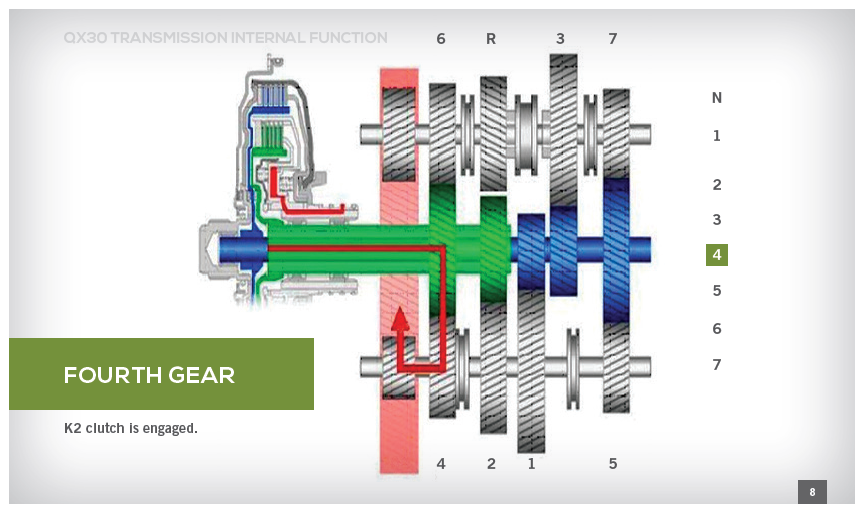

G10850714

G10850715

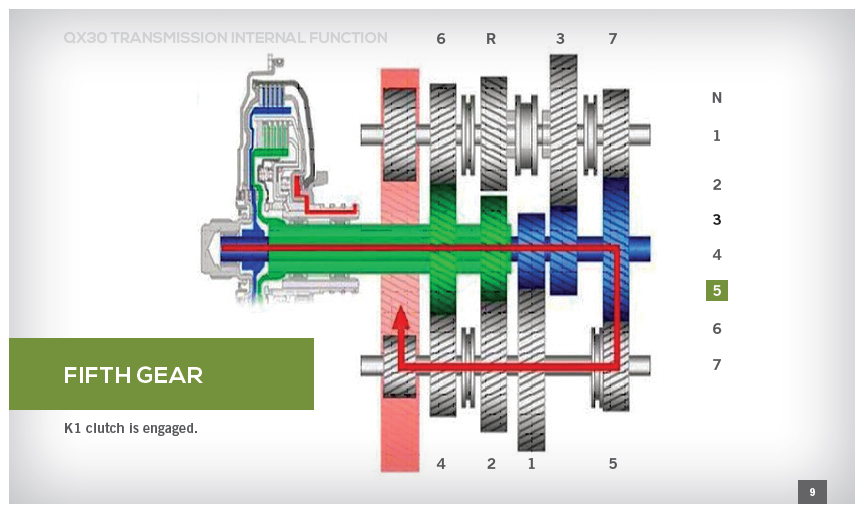

G10850716

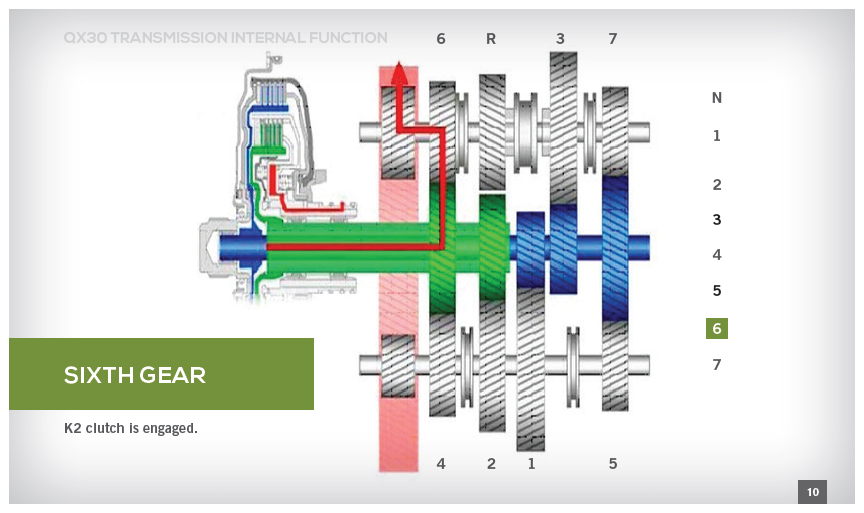

G10850717

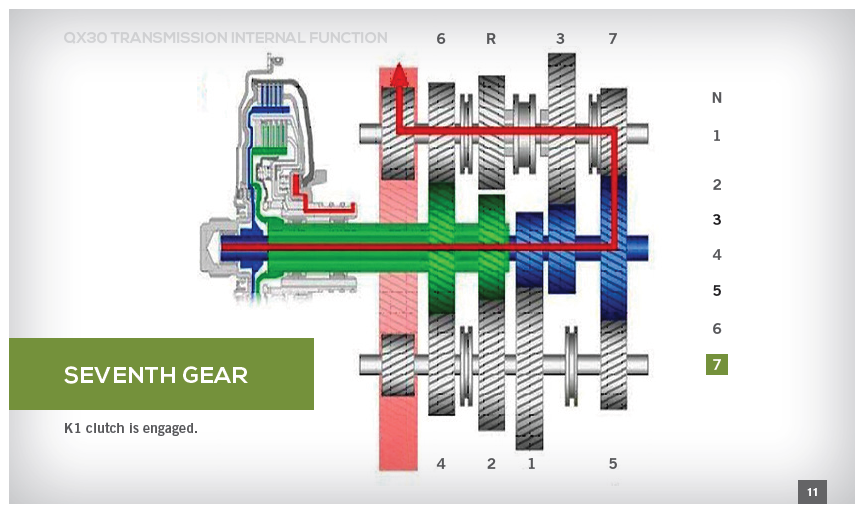

G10850718

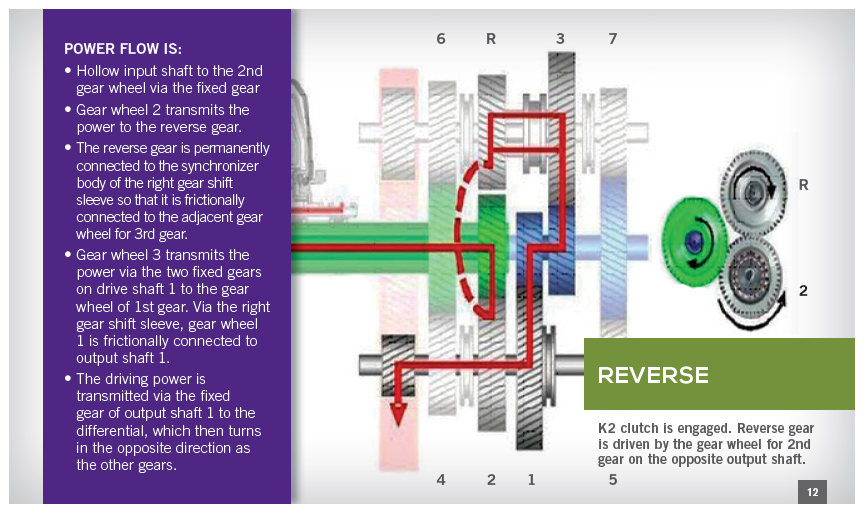

G10850719

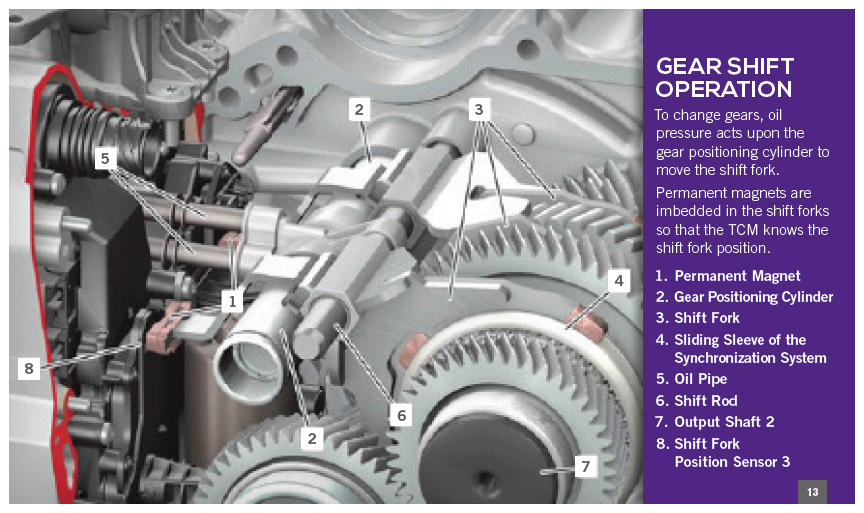

G10850720

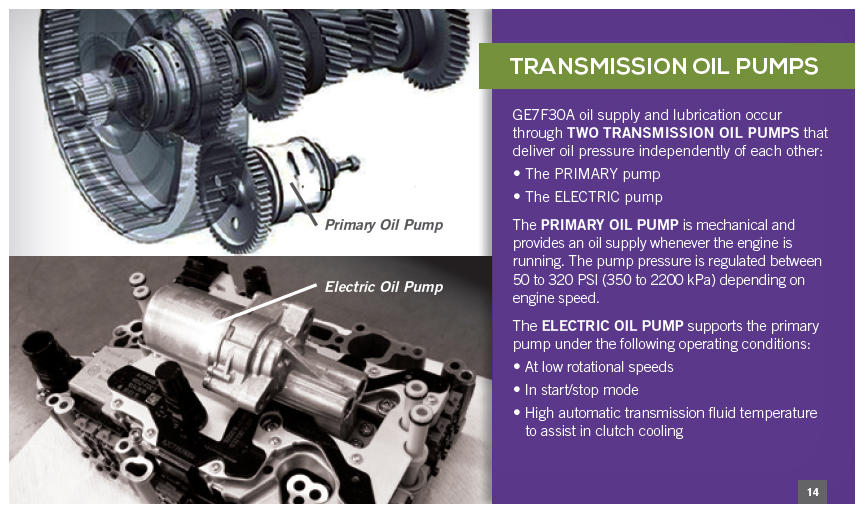

G10850721

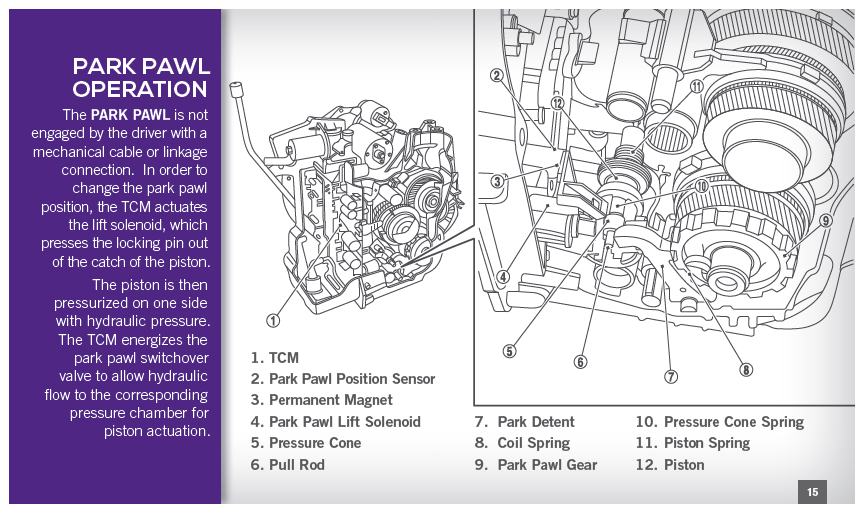

G10850722

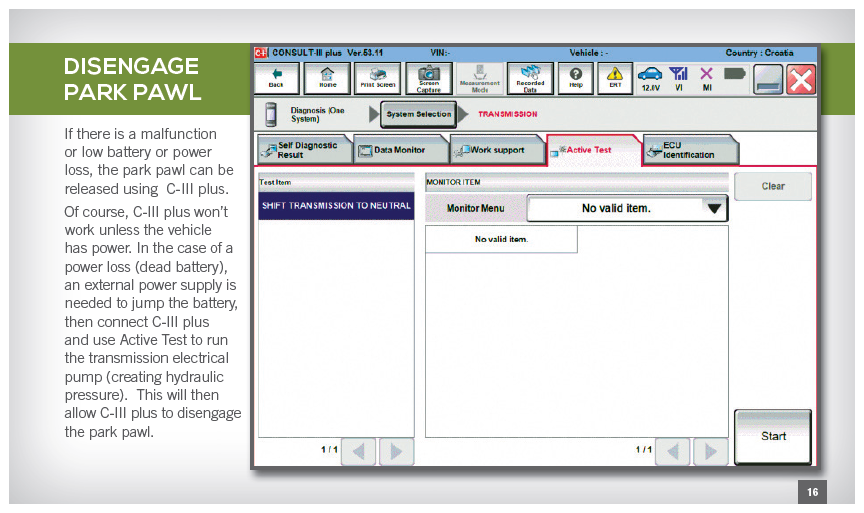

G10850723

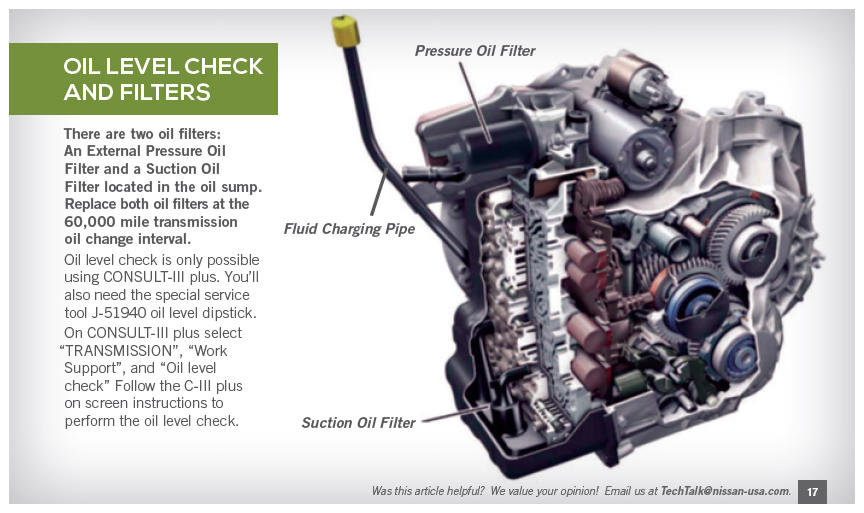

G10850724
