Component Location

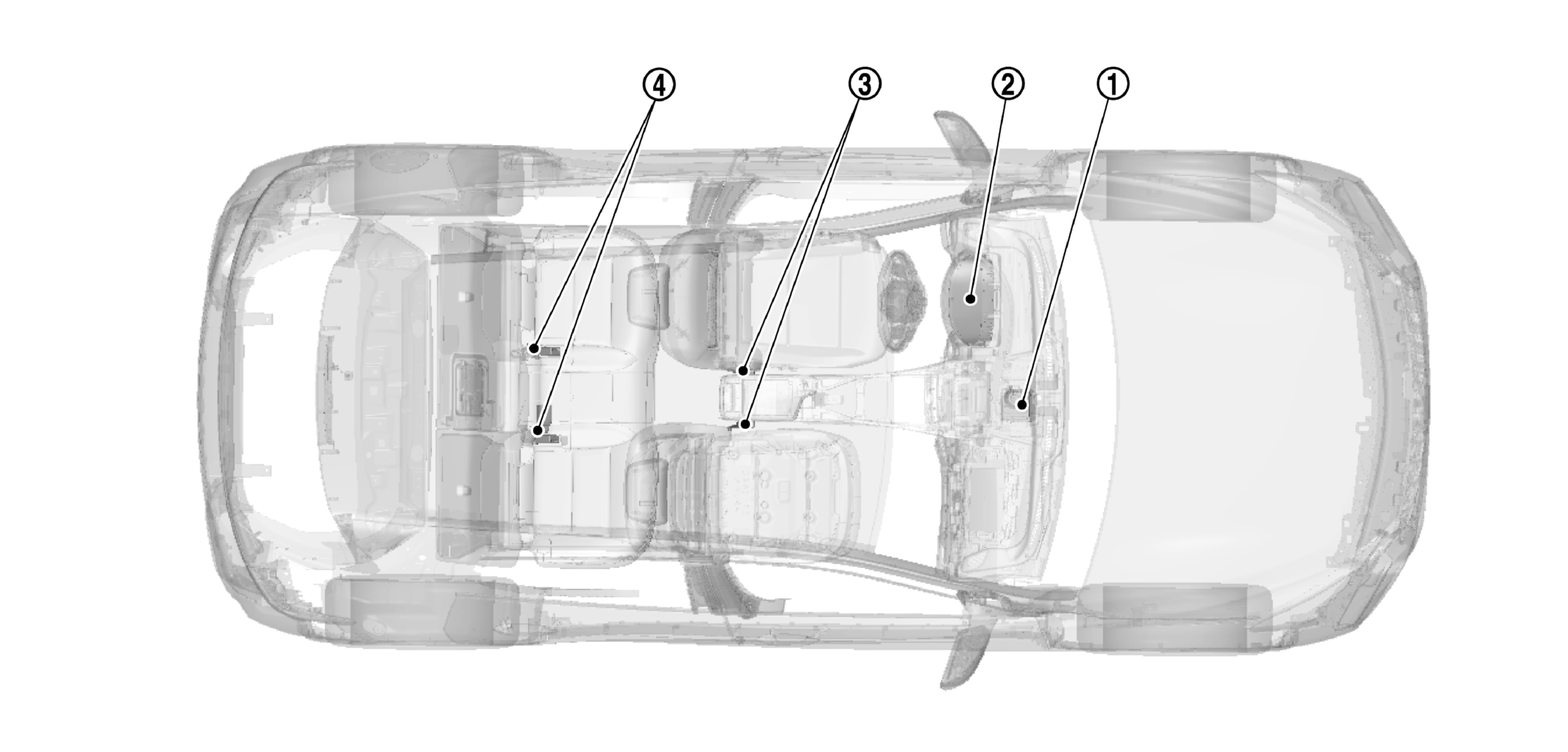

GNSJMHIA3496ZZ-496Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 Air bag diagnosis sensor unit Transmits seat belt buckle switch signal to combination meter via CAN communication.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 Combination meter
  • Receives seat belt buckle switch signal from air bag diagnosis sensor unit via CAN communication.
  • Turns the seat belt warning lamp ON when the seat belt is unfastened.
  • Transmits vehicle speed signal to air bag diagnosis sensor unit via CAN communication.
WHITE-3 Front seat belt buckle switch Refer to SEAT BELT BUCKLE SWITCH .
WHITE-4 Rear seat belt buckle switch Refer to SEAT BELT BUCKLE SWITCH .
