Exploded View

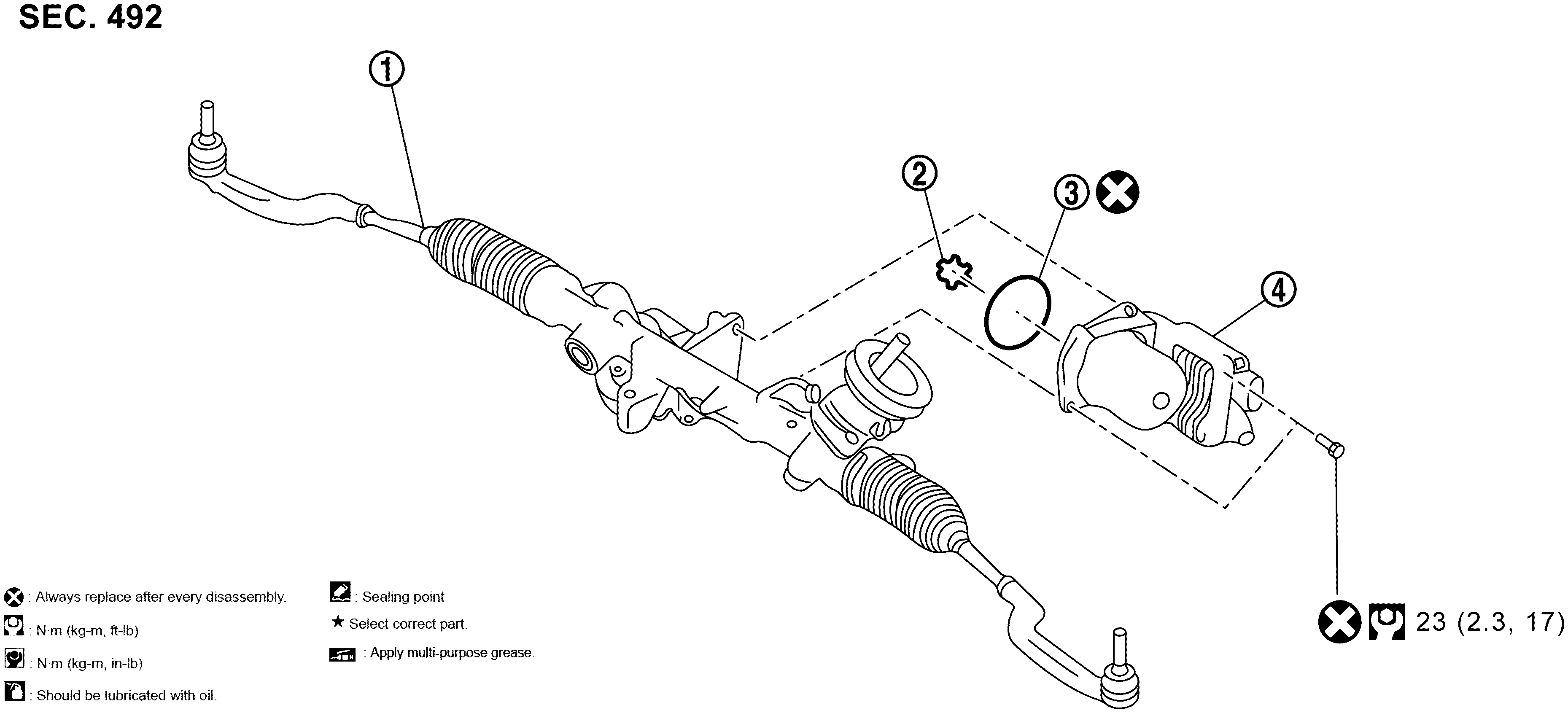

Fig 1: EPS Control Unit With Torque Specifications
GNSJSGIA1920GB-920Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Steering gear assembly WHITE-2 Damper coupling WHITE-3 Sealing ring
WHITE-4 EPS control unit
DISAS : Always replace after every disassembly.
BOLT : N•m (kg - m, ft - lb)
