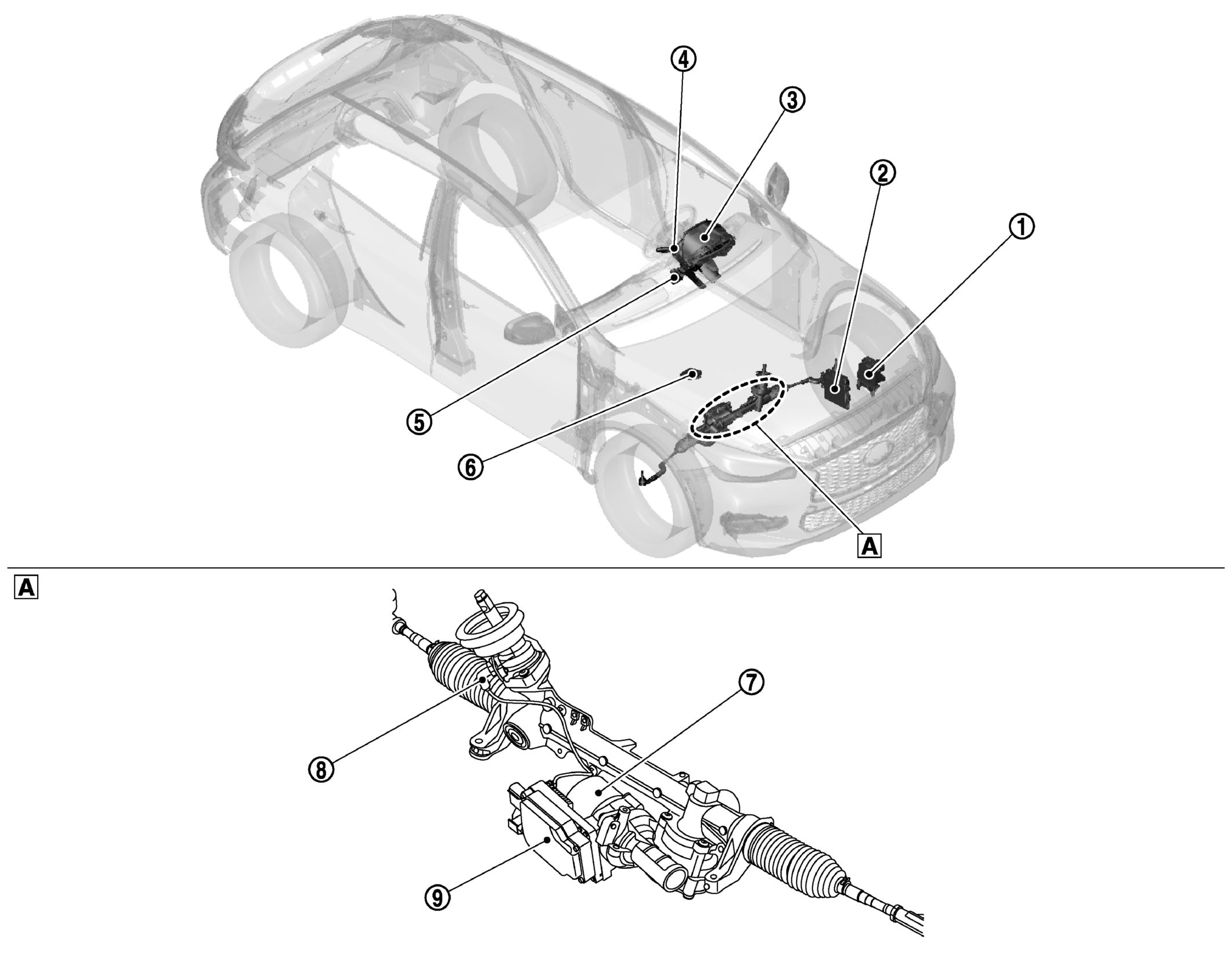

Electronic stability program control unit |
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Front LH wheel speed signal
- Front RH wheel speed signal
- Rear LH wheel speed signal
- Rear RH wheel speed signal
- Steering assistance torque request signal
- Yaw rate signal
- Side G signal
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
ECM |
- Transmits mainly the following signal to EPS control unit via CAN communication.
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
Combination meter |
- Receives mainly the following signals from EPS control unit via CAN communication.
- EPS warning message signal
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
Steering column control module |
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Steering angle sensor signal
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
Electronic ignition switch control unit |
- Transmits mainly the following signal to EPS control unit via CAN communication.
- Ignition switch ON signal
- Battery voltage signal
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
Sonar control unit |
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Park assist status signal
- Steering angle command signal
- Receives mainly the following signals from EPS control unit via CAN communication.
- EPS control unit status signal
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
EPS actuator |
EPS CONTROL UNIT, EPS ACTUATOR |
 |
EPS torque sensor |
EPS TORQUE SENSOR |
 |
EPS control unit |
EPS CONTROL UNIT, EPS ACTUATOR |
