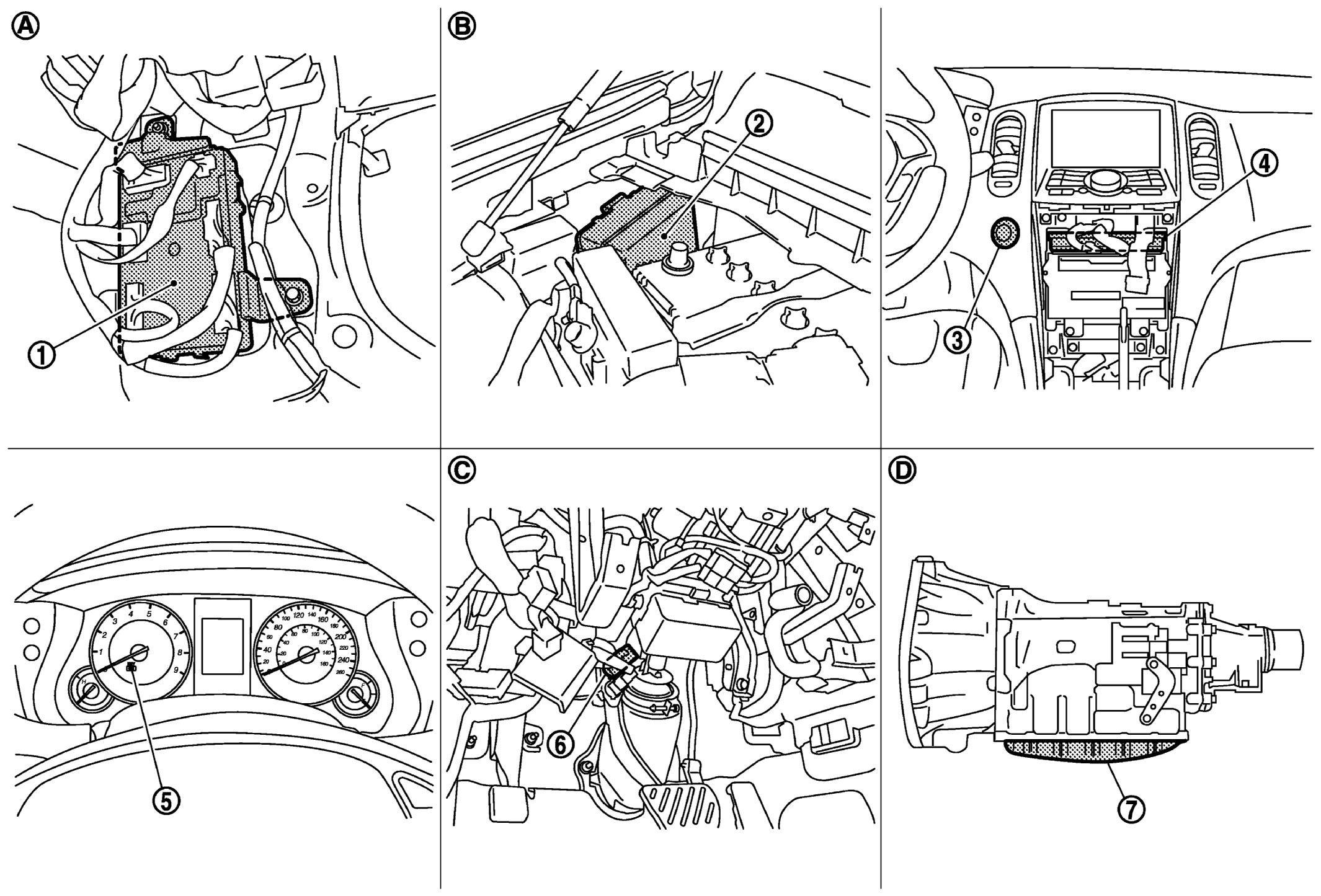

Component Location
| 1. | BCM M118, M119, M121, M122, M123 | 2. | IPDM E/R E5, E6, E7 | 3. | Push-button ignition switch M50 |
| 4. | Unified meter and A/C amp. M66, M67 | 5. | Combination meter (Key warning lamp) M53 | 6. | Stop lamp switch E110 |
| 7. | TCM F151 (built into A/T assembly) | ||||
| A. | Dash side lower (passenger side) | B. | Engine room dash panel (RH) | C. | Behind the instrument driver lower panel |
| D. | A/T assembly |
