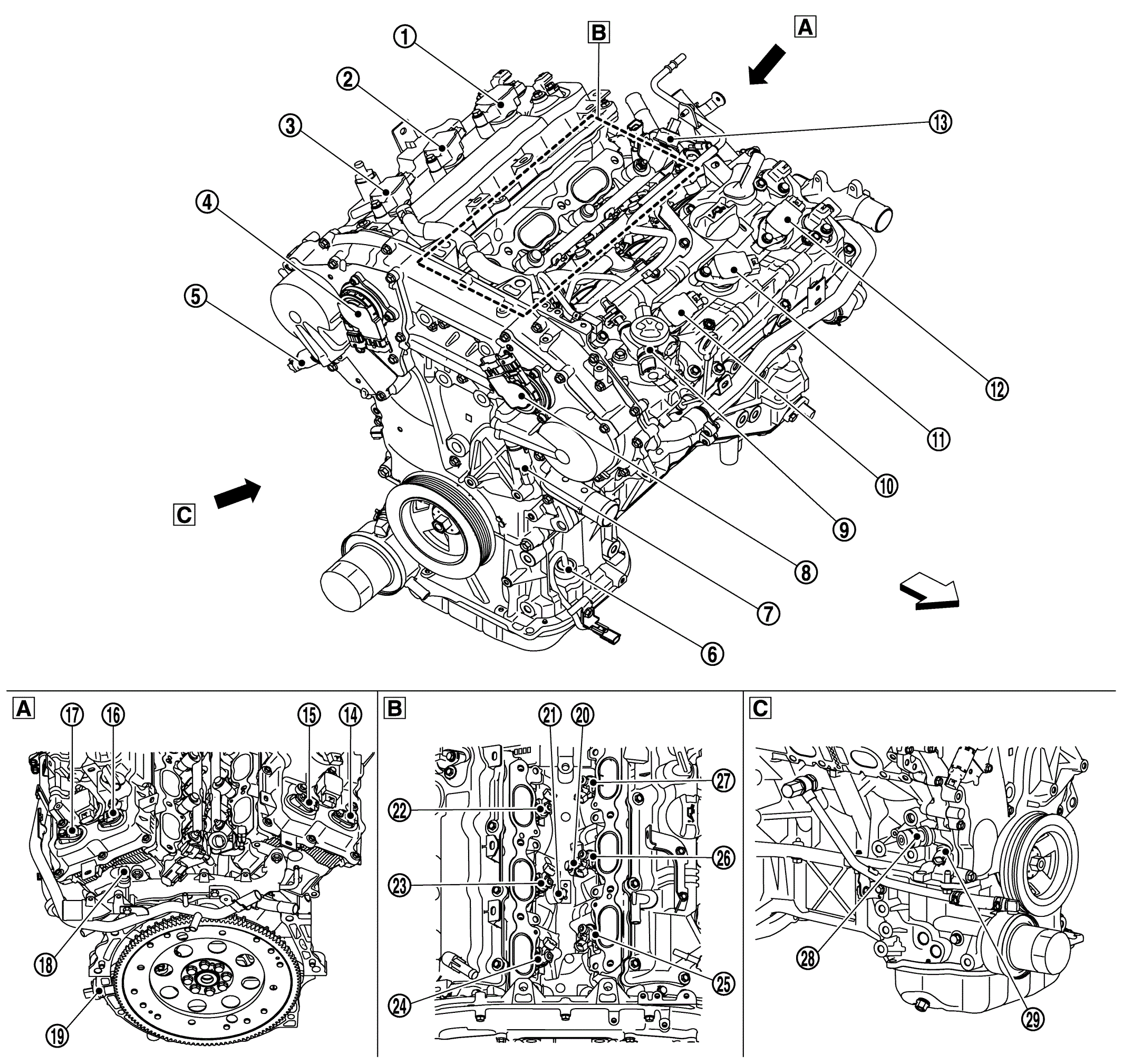

Ignition coil (with power transistor) and spark plug (No. 5 cylinder) |
FUEL INJECTOR |
 |
Ignition coil (with power transistor) and spark plug (No. 3 cylinder) |
 |
Ignition coil (with power transistor) and spark plug (No. 1 cylinder) |
 |
Electric intake valve timing control actuator (bank 1) |
ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR |
 |
Exhaust valve timing control solenoid valve (bank 1) |
EXHAUST VALVE TIMING CONTROL SOLENOID VALVE |
 |
Engine oil pressure control solenoid valve |
ENGINE OIL PRESSURE CONTROL SOLENOID VALVE |
 |
Exhaust valve timing control solenoid valve (bank 2) |
EXHAUST VALVE TIMING CONTROL SOLENOID VALVE |
 |
Electric intake valve timing control actuator (bank 2) |
ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR |
 |
High pressure fuel pump |
HIGH PRESSURE FUEL PUMP |
 |
Ignition coil (with power transistor) and spark plug (No. 2 cylinder) |
IGNITION COIL AND SPARK PLUG |
 |
Ignition coil (with power transistor) and spark plug (No. 4 cylinder) |
 |
Ignition coil (with power transistor) and spark plug (No. 6 cylinder) |
 |
Fuel rail pressure sensor |
FUEL RAIL PRESSURE SENSOR |
 |
Exhaust camshaft position sensor (bank 1) |
EXHAUST CAMSHAFT POSITION SENSOR |
 |
Intake camshaft position sensor (bank 1) |
INTAKE CAMSHAFT POSITION SENSOR |
 |
Intake camshaft position sensor (bank 2) |
INTAKE CAMSHAFT POSITION SENSOR |
 |
Exhaust camshaft position sensor (bank 2) |
EXHAUST CAMSHAFT POSITION SENSOR |
 |
Engine coolant temperature sensor |
ENGINE COOLANT TEMPERATURE SENSOR |
 |
Crankshaft position sensor |
CRANKSHAFT POSITION SENSOR |
 |
Knock sensor (bank 2) |
KNOCK SENSOR |
 |
Knock sensor (bank 1) |
 |
Fuel injector (No. 5 cylinder) |
FUEL INJECTOR |
 |
Fuel injector (No. 3 cylinder) |
 |
Fuel injector (No. 1 cylinder) |
 |
Fuel injector (No. 2 cylinder) |
 |
Fuel injector (No. 4 cylinder) |
 |
Fuel injector (No. 6 cylinder) |
 |
Engine oil pressure sensor |
ENGINE OIL PRESSURE SENSOR |
 |
Engine oil temperature sensor |
EXHAUST CAMSHAFT POSITION SENSOR |
