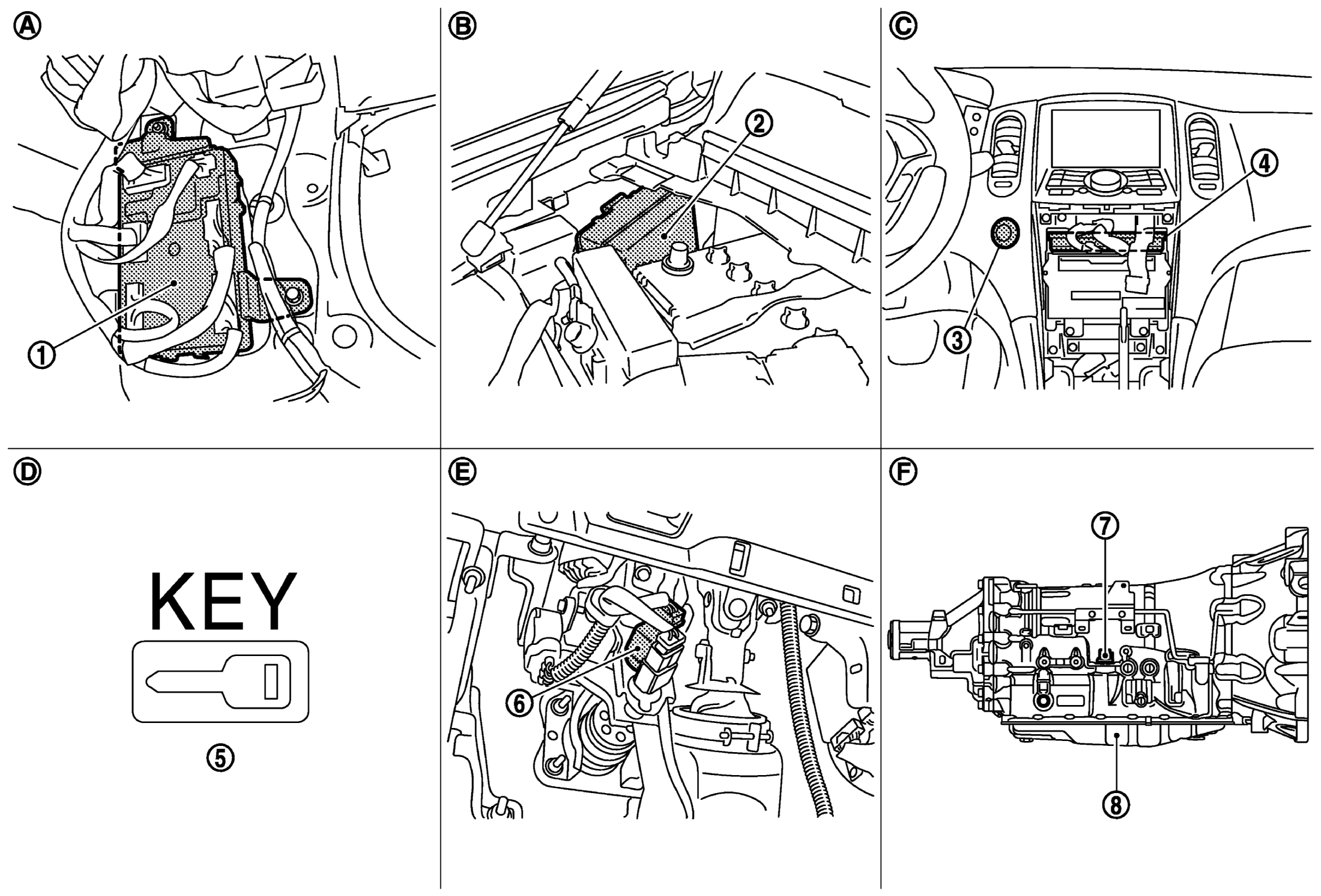

Component Location
| 1. | BCM M118, M119, M121, M122, M123 | 2. | IPDM E/R E5, E6, F7 | 3. | Push Button Ignition Switch M50 |
| 4. | Unified Meter And A/C Amp. M66, M67 | 5. | Key Warning Lamp (Combination Meter M53) | 6. | Stop Lamp Switch E110 |
| 7. | A/T Assembly Connector F51 | 8. | TCM (Built In A/T Assembly) F151 | ||
| A. | Dash side lower (passenger side) | B. | Engine room dash panel (RH) | C. | View with the cluster lid C removed |
| D. | Located on the Combination Meter | E. | Behind the instrument assist lower panel | F. | A/T assembly |
