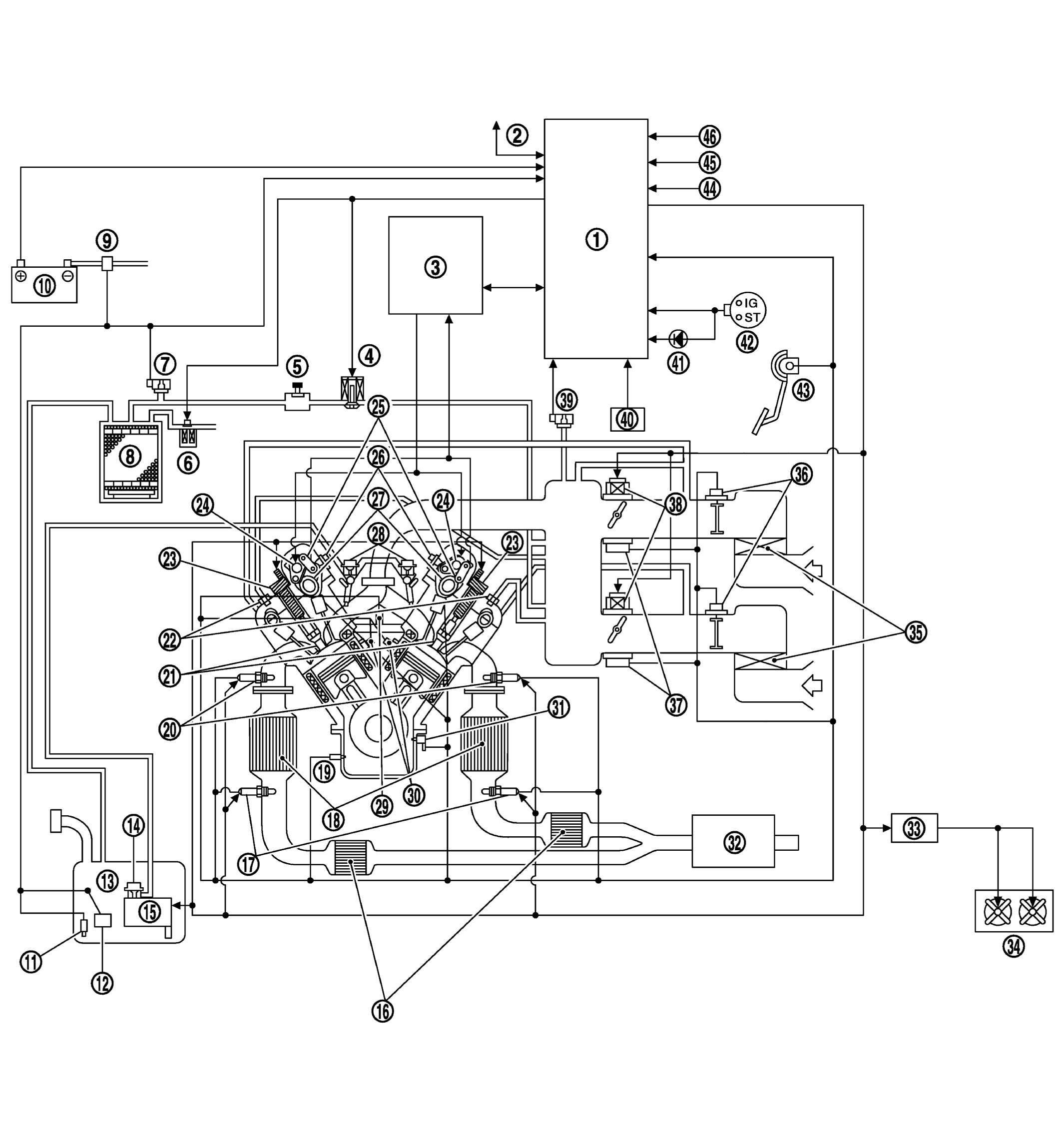

| 1. |
ECM |
2. |
CAN Communication |
3. |
VVEL Control Module |
| 4. |
EVAP Canister Purge Volume Control Solenoid Valve |
5. |
EVAP Service Port |
6. |
EVAP Canister Vent Control Valve |
| 7. |
EVAP Control System Pressure Sensor |
8. |
EVAP Canister |
9. |
Battery Current Sensor |
| 10. |
Battery |
11. |
Fuel Tank Temperature Sensor |
12. |
Fuel Level Sensor |
| 13. |
Fuel Tank |
14. |
Fuel Pressure Regulator |
15. |
Fuel Pump |
| 16. |
Three Way Catalyst 2 |
17. |
Heated Oxygen Sensor 2 |
18. |
Three Way Catalyst 1 |
| 19. |
Engine Oil Temperature Sensor |
20. |
A/F Sensor 1 |
21. |
Spark Plug |
| 22. |
PCV Valve |
23. |
Ignition Coil (With Power Transistor) |
24. |
VVEL Actuator Motor |
| 25. |
VVEL Control Shaft Position Sensor |
26. |
Intake Valve Timing Control Solenoid Valve |
27. |
Camshaft Position Sensor (PHASE) |
| 28. |
Fuel Damper |
29. |
Engine Coolant Temperature Sensor |
30. |
Knock Sensor |
| 31. |
Crankshaft Position Sensor (POS) |
32. |
Muffler |
33. |
Cooling Fan Control Module-1 |
| 34. |
Cooling Fan |
35. |
Air Cleaner |
36. |
Mass Air Flow Sensor (With Intake Air Temperature Sensor) |
| 37. |
Electric Throttle Control Actuator |
38. |
Throttle Position Sensor |
39. |
Manifold Absolute Pressure (MAP) Sensor |
| 40. |
Brake Booster Pressure Sensor* |
41. |
MIL |
42. |
Ignition Switch |
| 43. |
Accelerator Pedal Position Sensor |
44. |
Power Steering Pressure Sensor |
45. |
Refrigerant Pressure Sensor |
| 46. |
PNP Signal |
|
|
|
|
| *: Not applicable |
