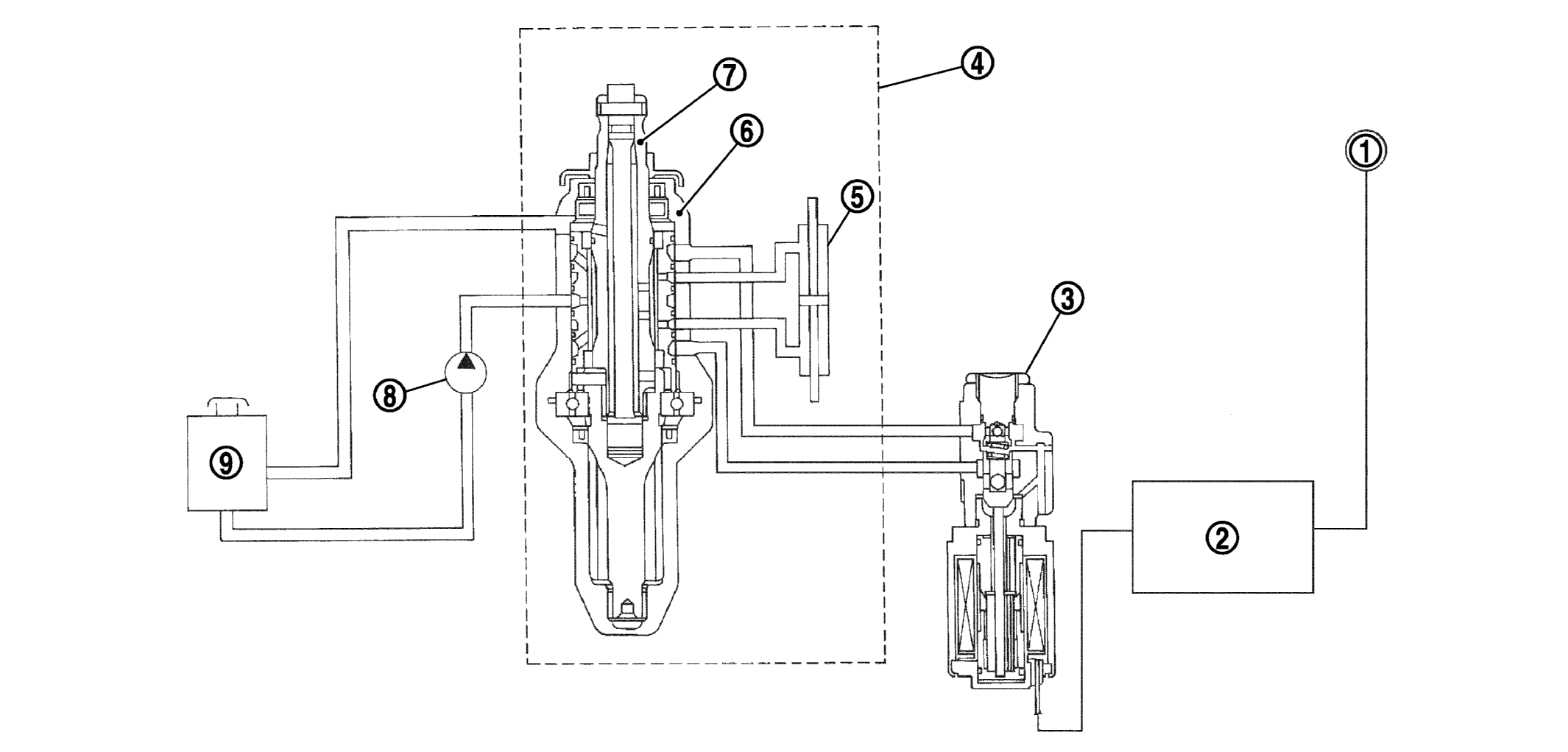

Cross-Sectional View

G08481311Courtesy of NISSAN NORTH AMERICA, INC.
1. Unified Meter And A/C Amp. 2. Power Steering Control Unit 3. Power Steering Solenoid Valve
4. Steering Gear Assembly 5. Gear Housing Assembly 6. Gear Sub-Assembly
7. Pinion 8. Power Steering Oil Pump 9. Reservoir Tank
