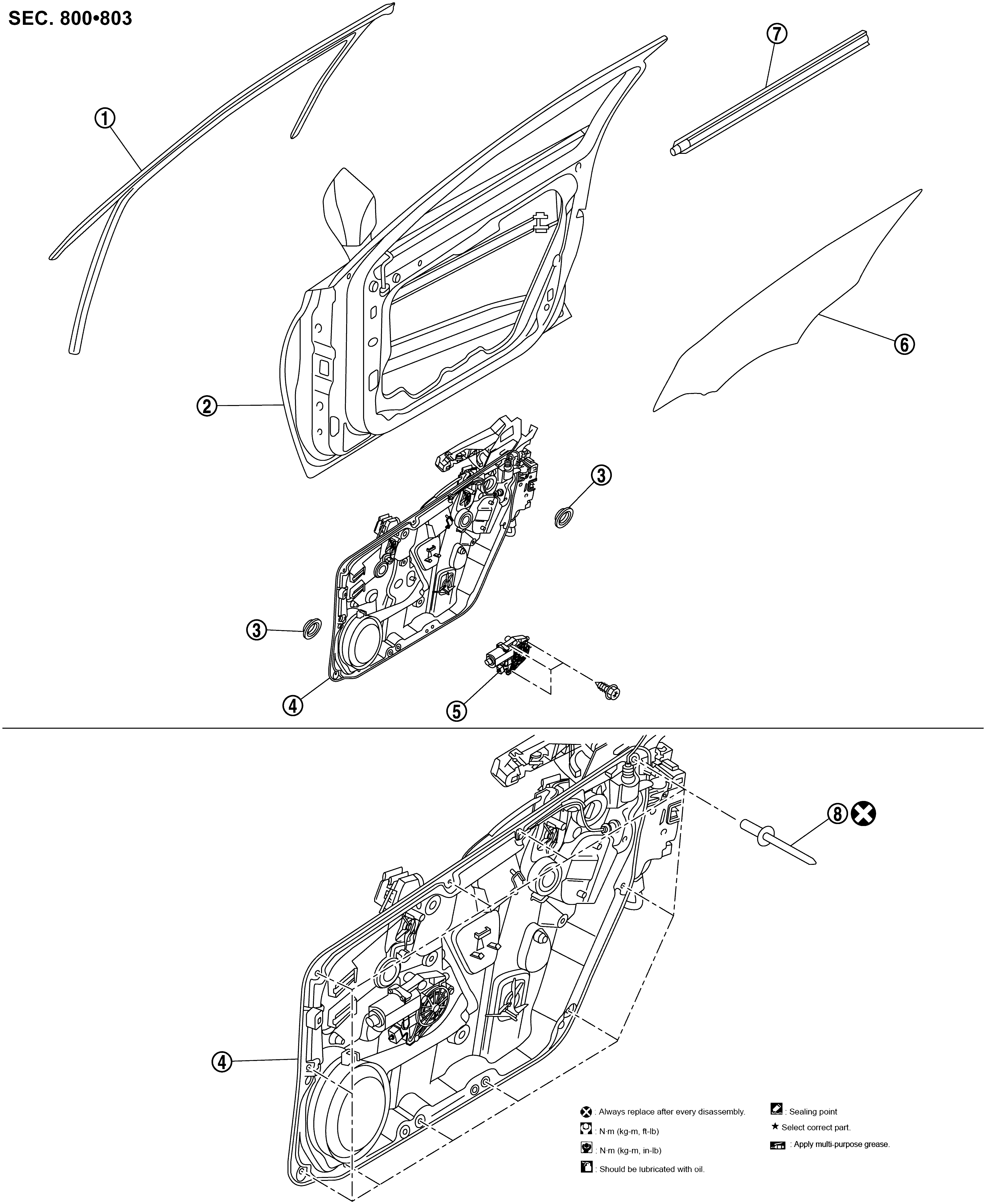

Exploded View
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Front door glass run
|
|
Front door panel
|
|
Seal cover
|
|
|
Front door module assembly *
|
|
Front door power window motor
|
|
Front door glass
|
|
|
Front door inside seal
|
|
Rivet
|
|
|
: Always replace after every disassembly.
|
*
: Front door regulator is included in front door module.
