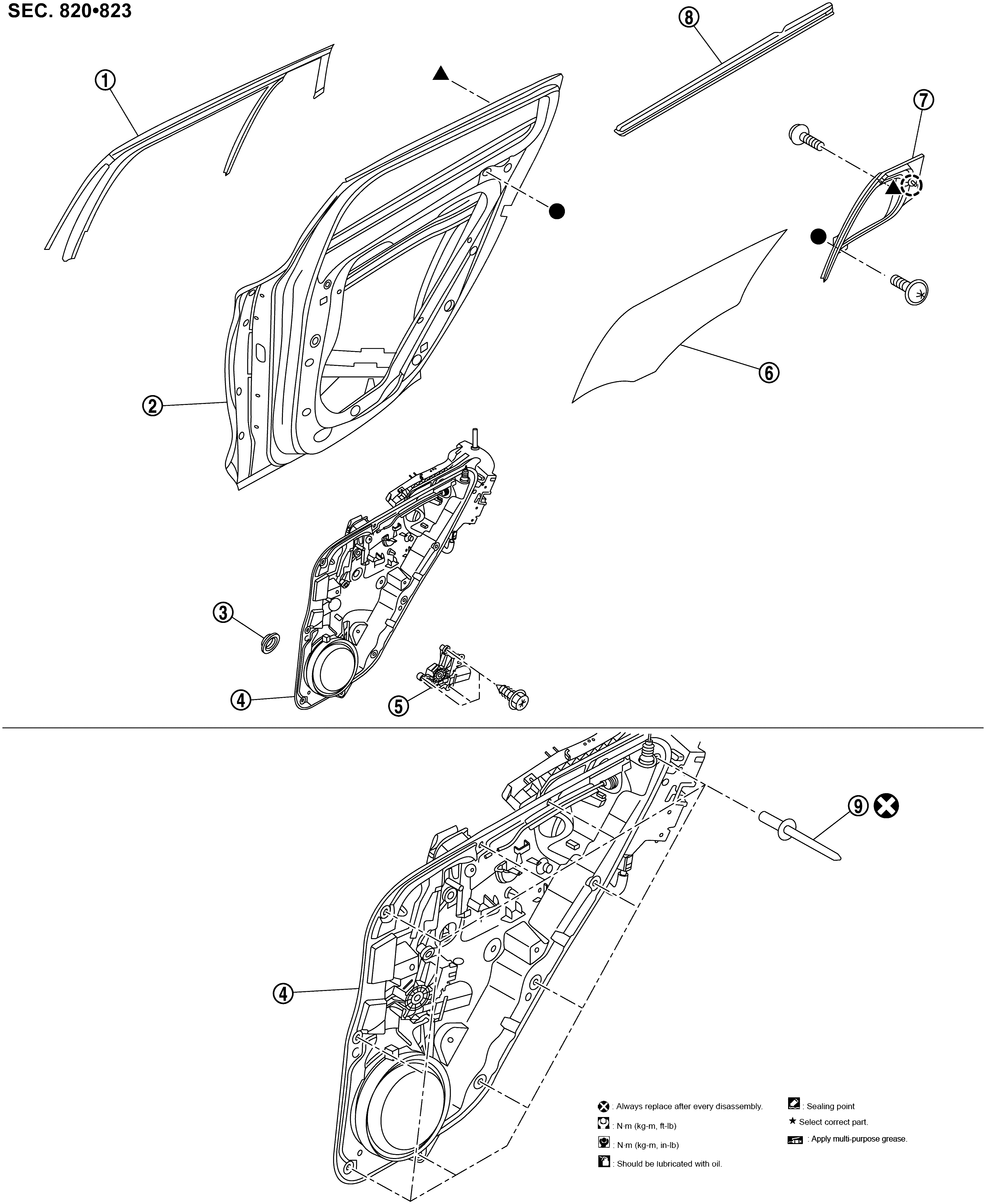

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear door glass run	Rear door panel	Seal cover
	Rear door module assembly ^*	Rear door power window motor	Rear door glass
	Rear door partition glass assembly	Rear door inside seal	Rivet
	: Clip
	: Always replace after every disassembly.
, : Indicates that the part is connected at points with same symbol in actual vehicle.

^* : Rear door regulator is included in rear door module.
