Exploded View

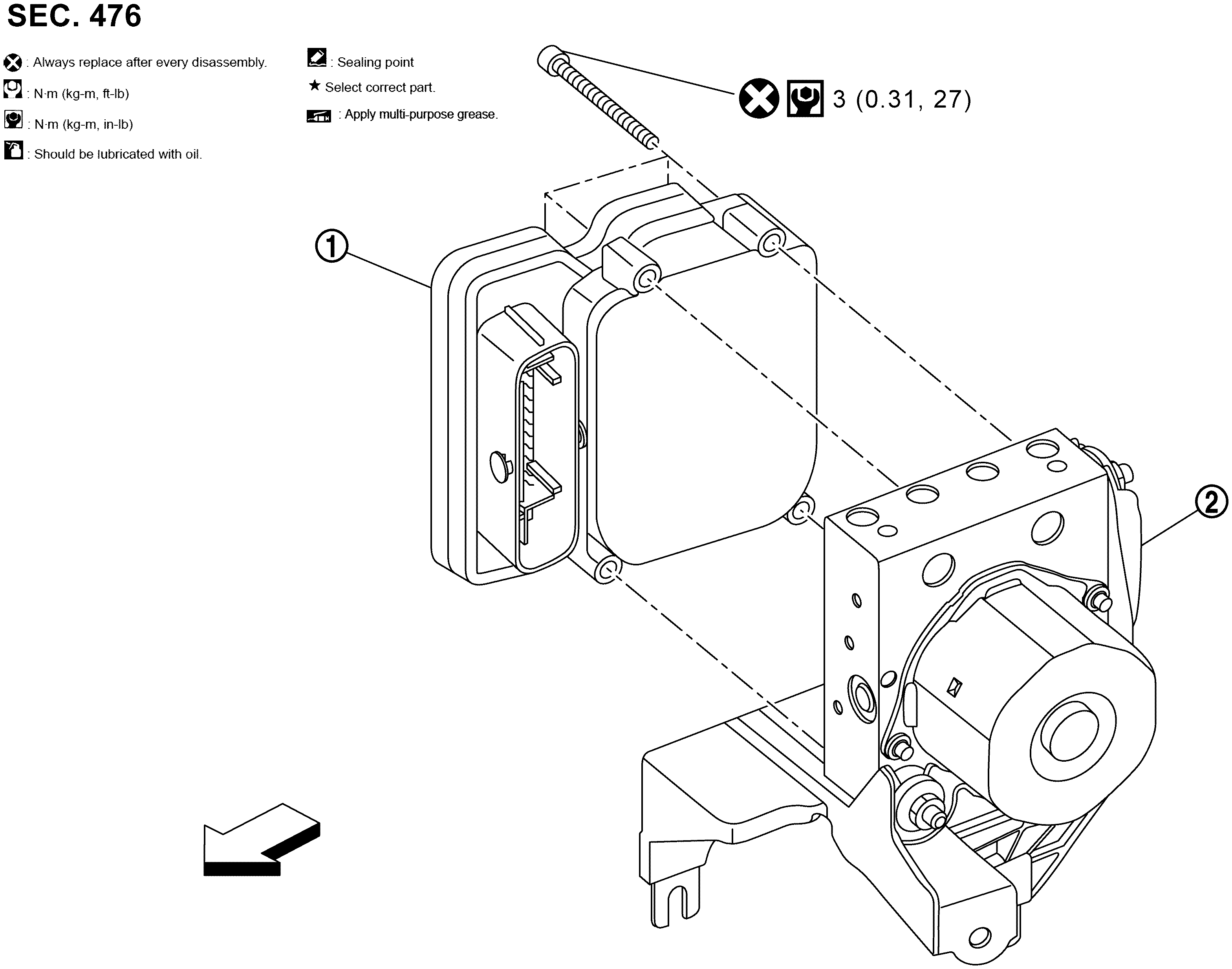

Fig 1: Exploded View Of Electronic Stability Program Control Unit With Torque Specifications
GNSJSFIA3384GB-384Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Electronic stability program control unit

SYMBOL

Traction system hydraulic unit

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, in-lb)
