Left Side

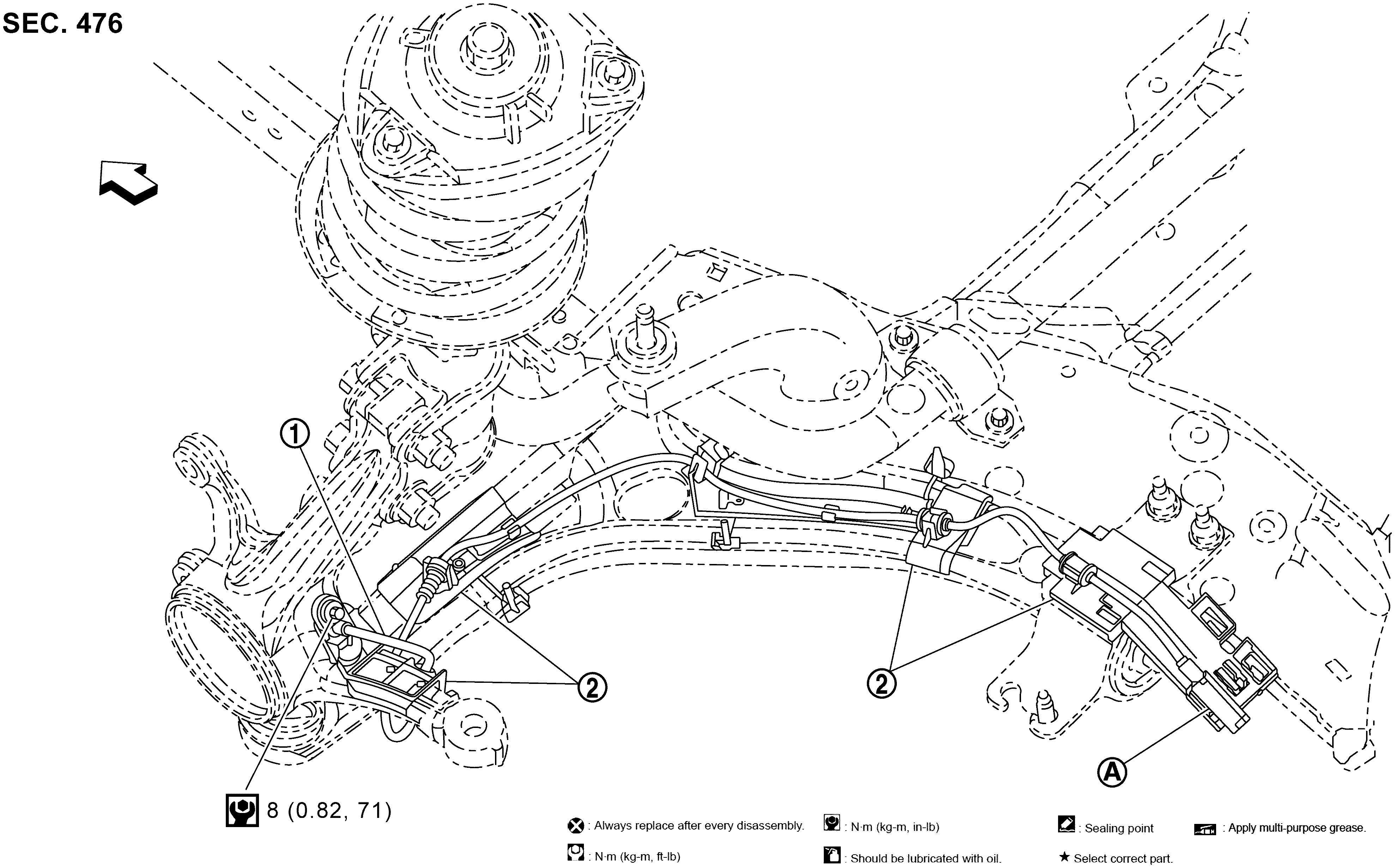

Fig 1: Exploded View Of Wheel Sensor With Torque Specifications (Left Side)
GNSJSFIA3379GB-379Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front LH axle rpm sensor

SYMBOL

Harness bracket

SYMBOL

Front LH axle rpm sensor harness connector

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, in-lb)
