Removal and Installation: Installation

Install in the reverse order of removal.

CAUTION: Do not operate the red safety catches in steering column control module. Irreparable damage might be caused to the horn and air bag spiral cable contact.
NOTE:

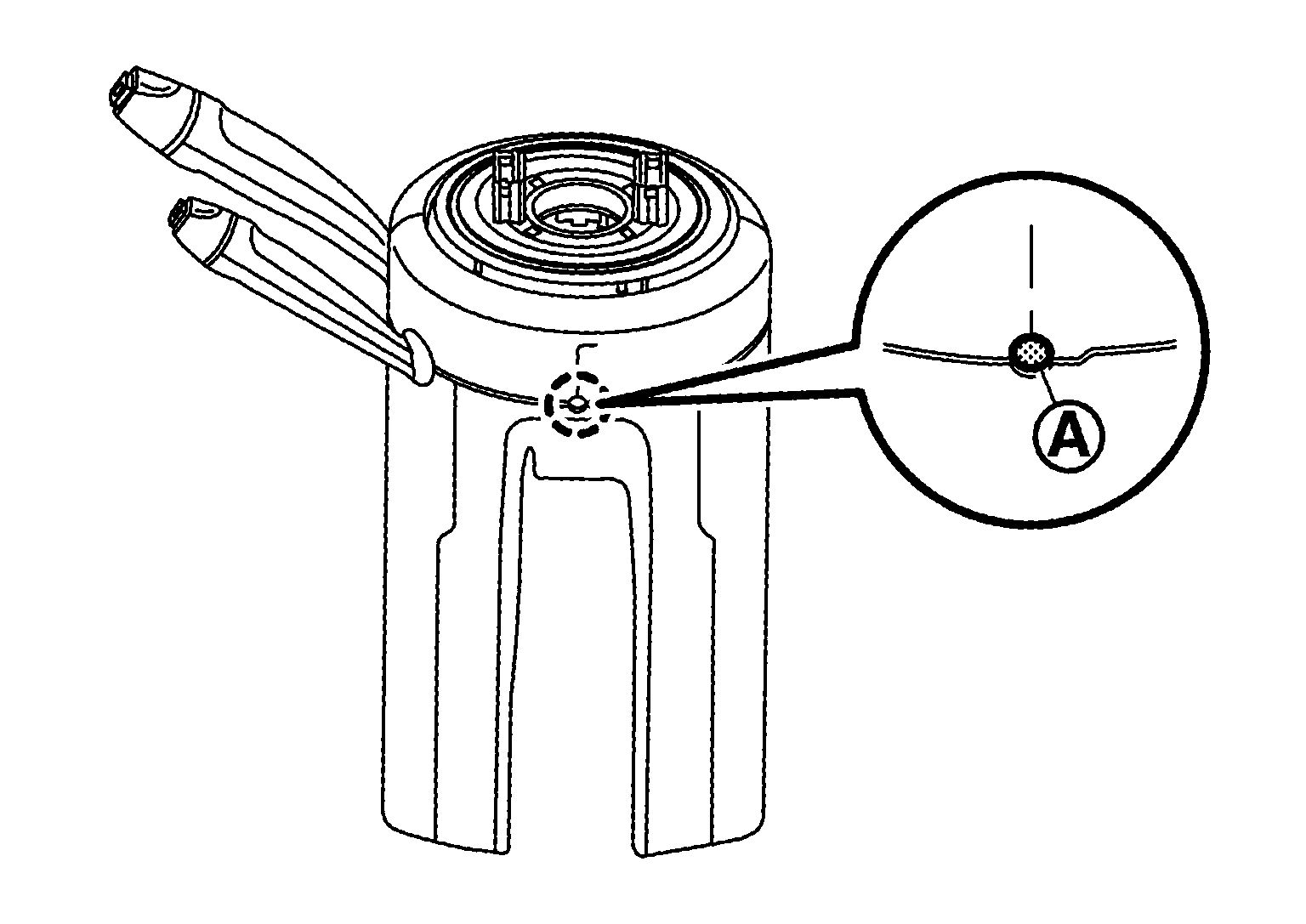

  • When steering column control module is in the correct installation position, the assembly indicator SYMBOL is retracted.
    GNSJMHIA3393Z-393Courtesy of NISSAN NORTH AMERICA, INC.

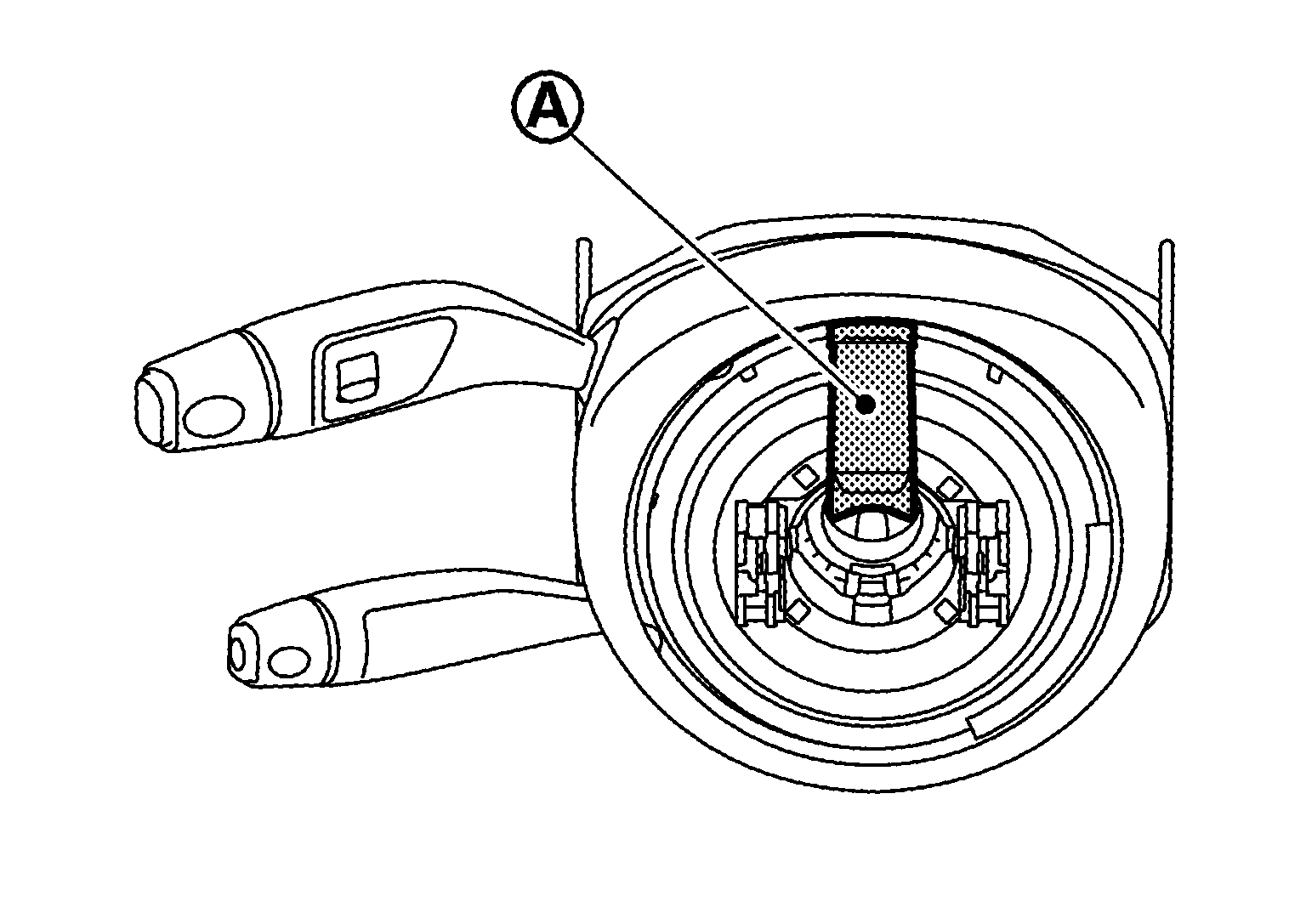

  • When installing a new steering column control module the transportation lock SYMBOL must be broken off once mounted.
    GNSJMMIA2240Z-240Courtesy of NISSAN NORTH AMERICA, INC.
