Physical Values

NOTE: Pulse signal is measured by CONSULT.

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

-

Signal name

Input/Output

1

(BR/B)

98

(BR)

Fuel injector (No. 1)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed

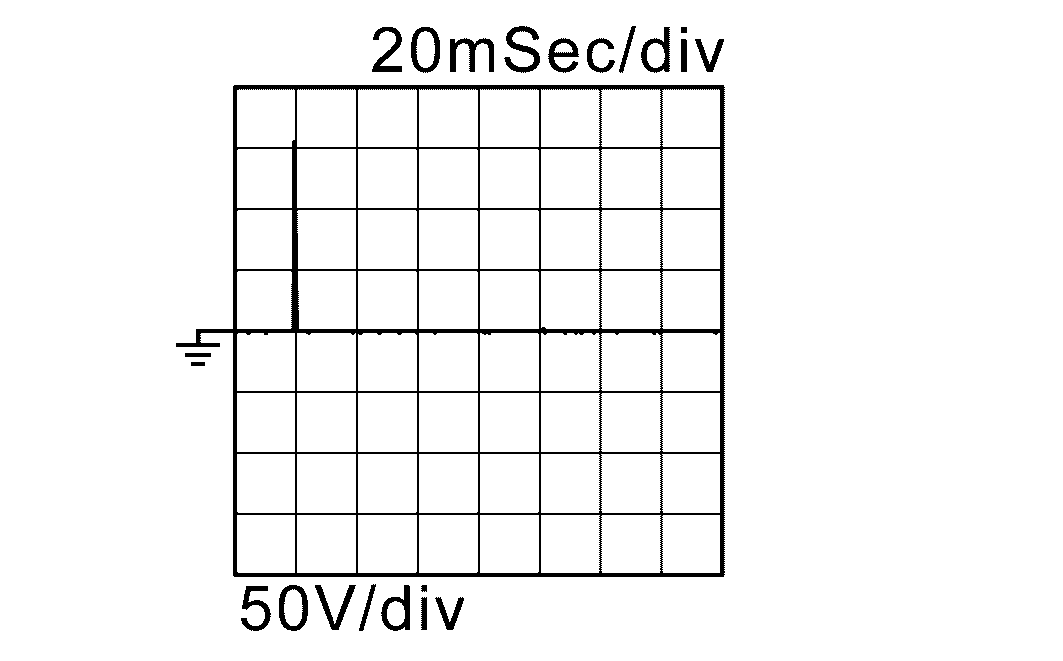

GNSJSBIA5286GB-286Courtesy of NISSAN NORTH AMERICA, INC.

2

(GY)

98

(BR)

Fuel injector (No. 1)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA9608GB-608Courtesy of NISSAN NORTH AMERICA, INC.

3

(Y/BR)

98

(BR)

Partial load operation crankcase ventilation valve

Output

[Ignition switch: ON]

0 V

[Engine is running]

  • Idle speed

Battery voltage

4

(G/W)

98

(BR)

Coolant thermostat heater element

Output

[Ignition switch: ON]

Coolant temperature: Approx. 24 deg.C (75.2 deg.F) *1

3.42 V

7

(L)

98

(BR)

Ignition coil (No. 2)

Output

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle

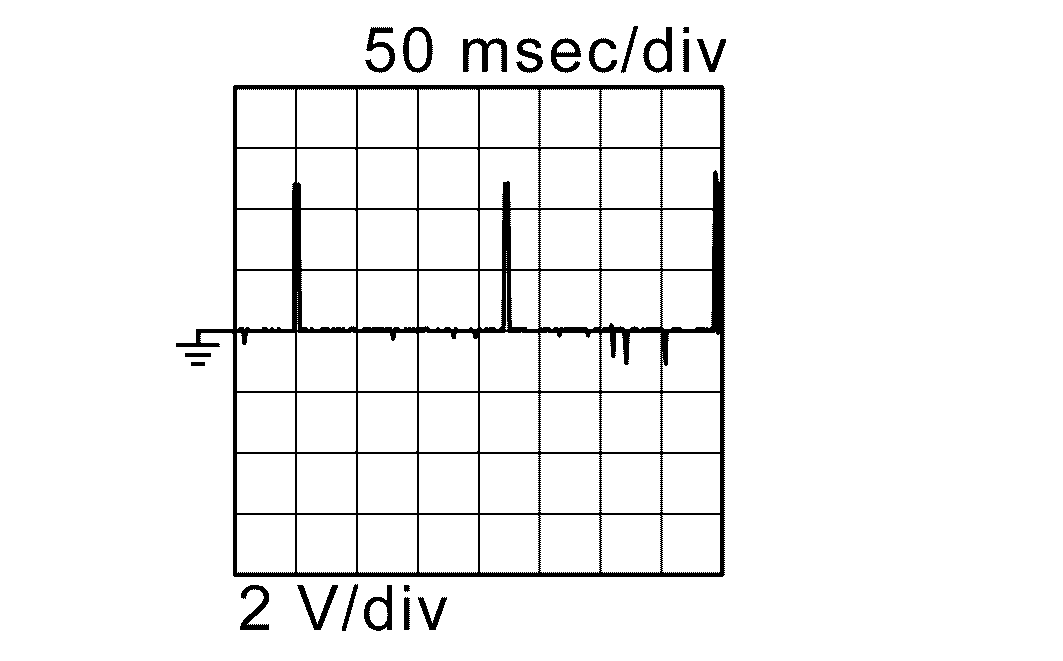

GNSJSBIA9609GB-609Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

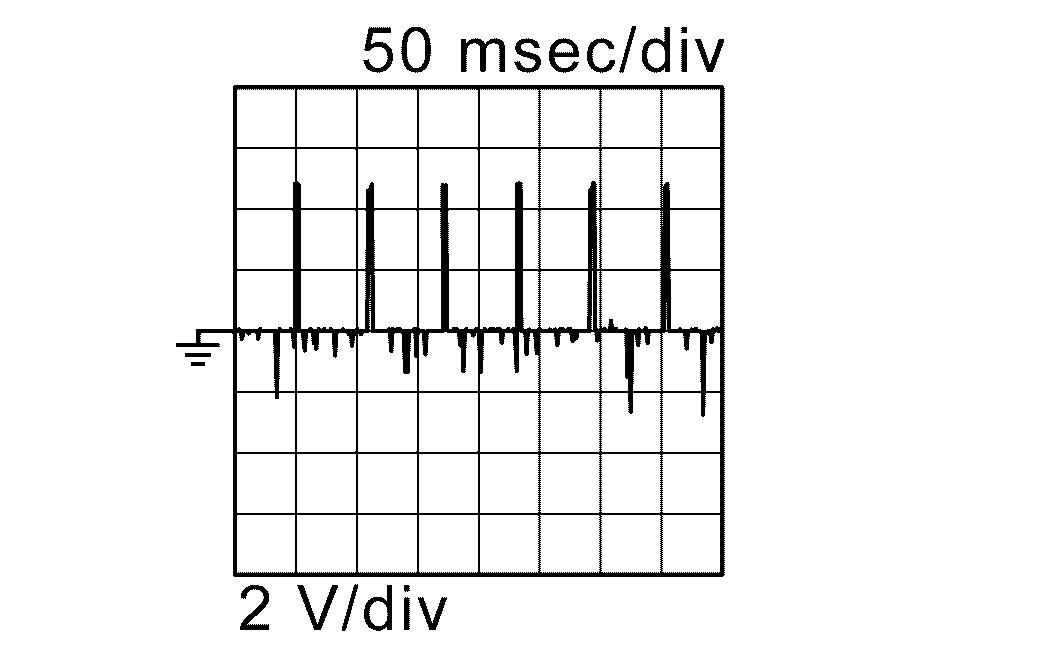

GNSJSBIA9610GB-610Courtesy of NISSAN NORTH AMERICA, INC.

10

(R/Y)

--

Sensor ground (Intake camshaft position sensor, exhaust camshaft position sensor)

--

--

--

11

(G/Y)

--

Sensor ground (Engine coolant temperature sensor, charge air temperature sensor downstream of throttle valve, charge air temperature sensor upstream of throttle valve, pressure sensor upstream of throttle valve, pressure sensor downstream of air filter)

--

--

--

12

(R/V)

--

Sensor ground (Crankshaft position sensor, fuel pressure and temperature sensor, pressure sensor downstream of throttle valve)

--

--

--

13

(BR)

--

Sensor ground (Heated oxygen sensor)

--

--

--

14

(BR/G)

--

Sensor ground (Throttle valve actuator)

--

--

--

16

(W/B)

98

(BR)

Sensor power supply (Pressure sensor upstream of throttle valve, pressure sensor downstream of air filter, intake camshaft position sensor, exhaust camshaft position sensor)

Output

[Ignition switch: ON]

5 V

17

(BR/W)

98

(BR)

Sensor power supply (Throttle valve actuator)

Output

[Ignition switch: ON]

5 V

18

(W/V)

98

(BR)

Sensor power supply (Crankshaft position sensor, fuel pressure and temperature sensor, pressure sensor downstream of throttle valve)

Output

[Ignition switch: ON]

5 V

23

(B/BR)

98

(BR)

Divert air switchover valve

Output

[Ignition switch: ON]

Battery voltage

[Ignition switch: ON]

Perform "CHECK DECELERATION AIR SWITCHOVER VALVE" in "ACTIVE TEST" mode.* 1

Touch "START" and select "OPEN".

0.5 V

24

(L/R)

98

(BR)

Throttle valve motor (+)

Output

[Ignition switch: ON]

0 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully depressed

2 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: For few seconds after depressing fully.

10 V

25

(L/G)

98

(BR)

Fuel injector (No. 4)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA5286GB-286Courtesy of NISSAN NORTH AMERICA, INC.

26

(W/L)

98

(BR)

Fuel injector (No. 4)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed

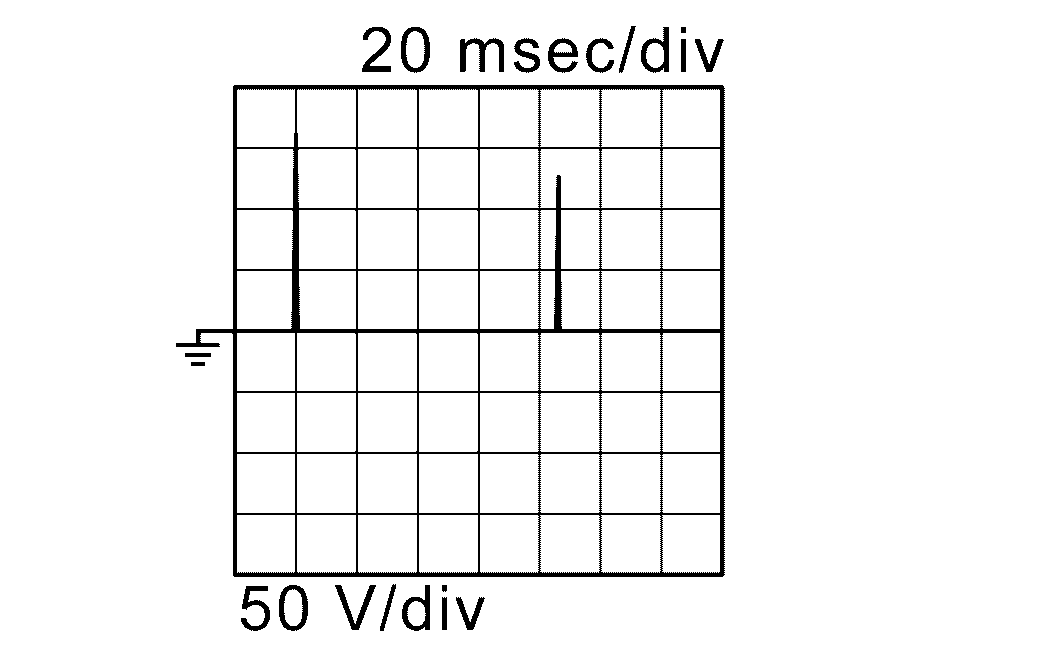

GNSJSBIA9608GB-608Courtesy of NISSAN NORTH AMERICA, INC.

28

(W/R)

98

(BR)

Engine oil pump valve

Output

[Ignition switch: ON]

Cold condition

Battery voltage

[Ignition switch: ON]

Warm-up condition

1.6 V

[Engine is running]

  • Idle speed

1.9 V SYMBOL

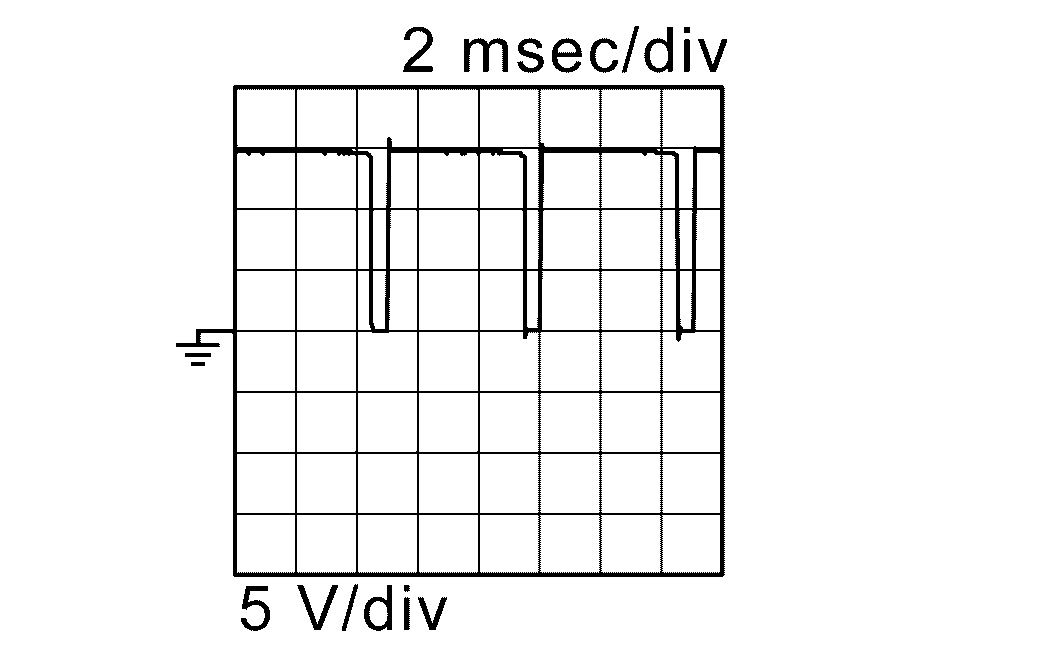

SYMBOLGNSJSBIA9611GB-611Courtesy of NISSAN NORTH AMERICA, INC.

29

(B)

98

(BR)

Intake camshaft actuator

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Idle speed

Battery voltage SYMBOL

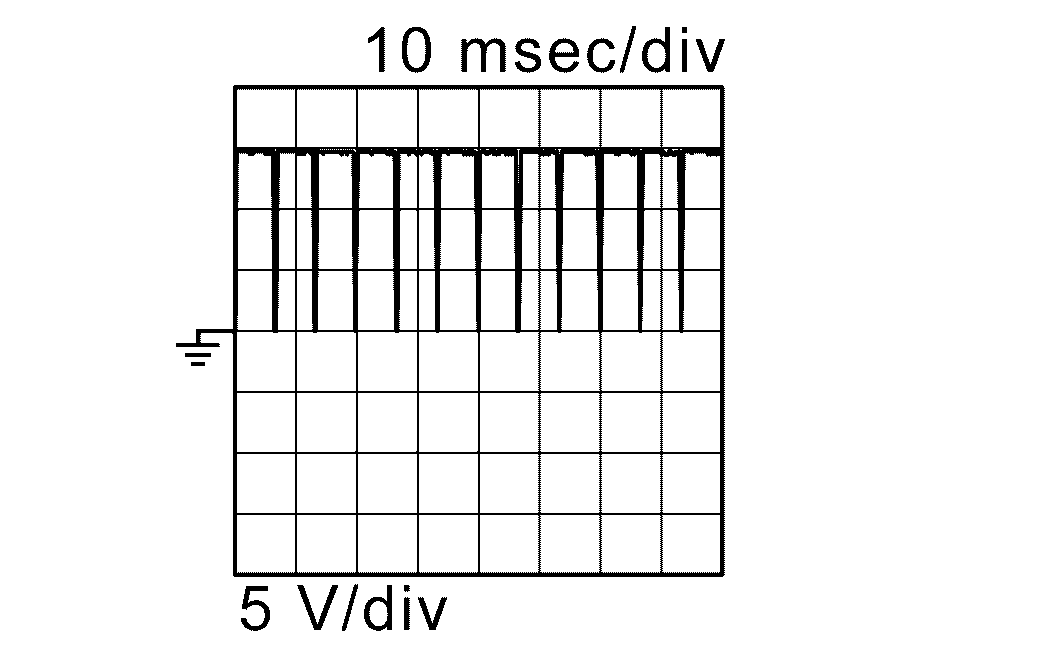

SYMBOLGNSJSBIA9612GB-612Courtesy of NISSAN NORTH AMERICA, INC.

31

(V/L)

98

(BR)

Ignition coil (No. 4)

Output

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle

0.04 V SYMBOL

SYMBOLGNSJSBIA9609GB-609Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

0.04 V SYMBOL

SYMBOLGNSJSBIA9610GB-610Courtesy of NISSAN NORTH AMERICA, INC.

33

(BR/O)

98

(BR)

Intake camshaft valve lift switchover actuator

Output

[Ignition switch: ON]

2 V

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

2 V SYMBOL

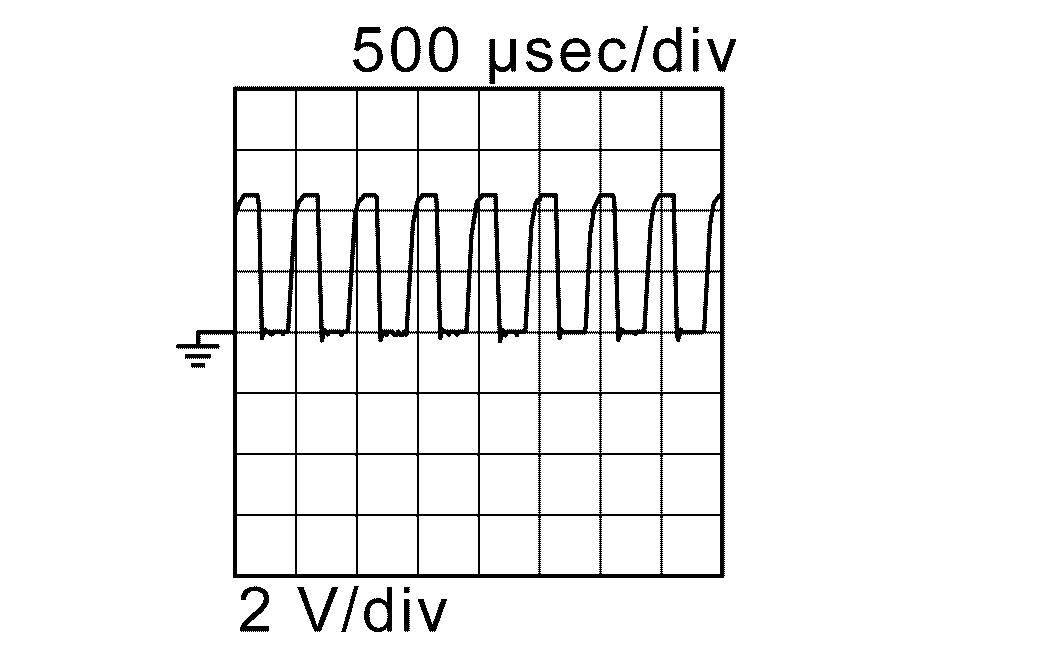

SYMBOLGNSJSBIA9624GB-624Courtesy of NISSAN NORTH AMERICA, INC.

[Ignition switch: ON]

Perform "Check intake camshaft valve lift switching actuator" in "ACTIVE TEST" mode.*

Touch "START"

2.6 V

During operation

34

(Y/L)

98

(BR)

Exhaust camshaft position sensor

Input

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle

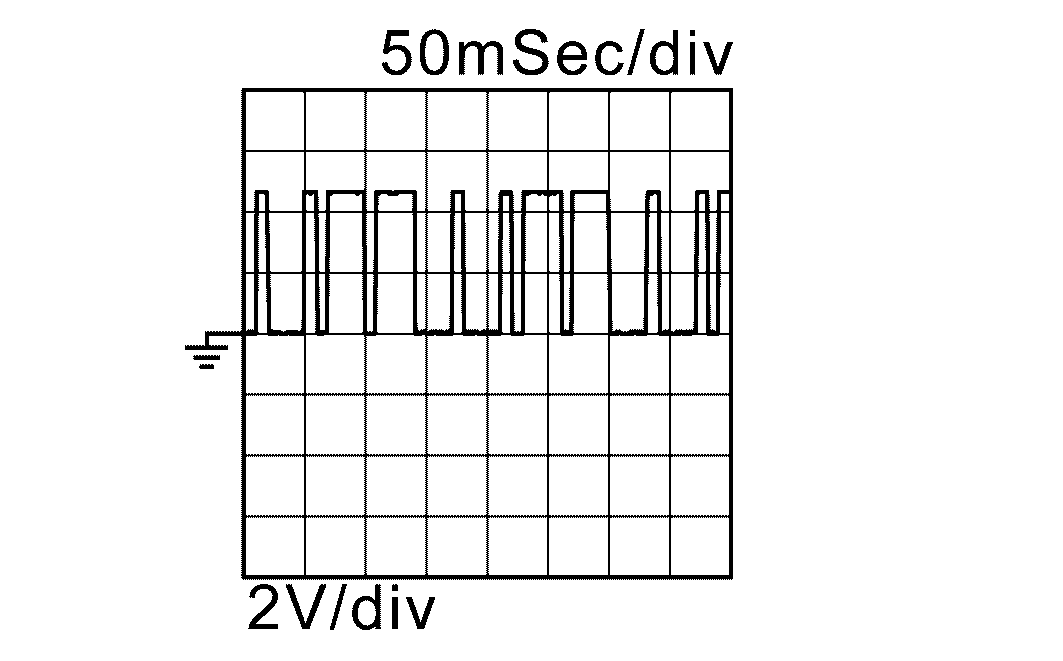

GNSJSBIA5290GB-290Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

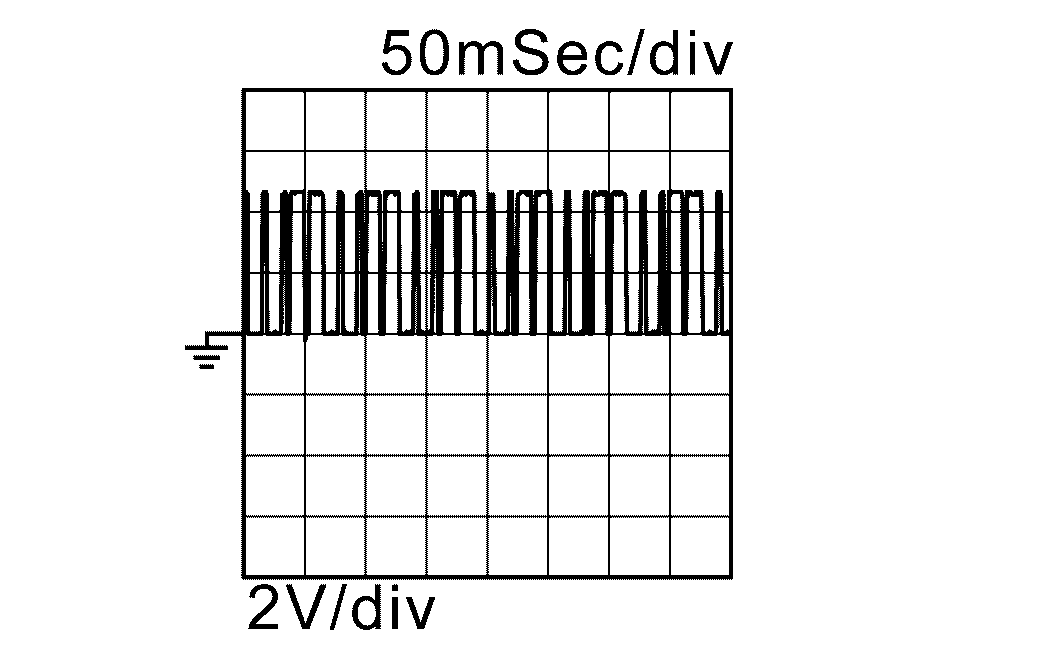

GNSJSBIA5291GB-291Courtesy of NISSAN NORTH AMERICA, INC.

36

(O/B)

98

(BR)

EVAP control system pressure sensor

Input

[Ignition switch: ON]

1.8 - 4.8 V

37

(GY/L)

98

(BR)

Heated oxygen sensor

Input

[Ignition switch: ON]

Cold condition

1.5 V

[Engine is running]

  • Warm-up condition
  • Idle speed

0.8 V

38

(GY/R)

98

(BR)

Throttle position sensor 2

Input

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully released

0.74 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully depressed

4.3 V

40

(BR/GY)

98

(BR)

Charge air temperature sensor downstream of throttle valve

Input

[Ignition switch: ON]

  • Charge air temperature: 21 deg.C (69.8 deg.F) *

3.8 V

[Ignition switch: ON]

  • Charge air temperature downstream of throttle valve: 27 deg.C (80.6 deg.F) *

3.6 V

41

(Y/B)

98

(BR)

Pressure sensor upstream of throttle valve

Input

[Ignition switch: ON]

1.96 V

[Engine is running]

  • Engine speed: 2, 000 rpm

2 V

45

(L/W)

98

(BR)

LIN

Input/Output

[Ignition switch: ON]

11 V

48

(G/V)

98

(BR)

Throttle valve motor (-)

Output

[Ignition switch: ON]

0 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully depressed

0.1 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: For few seconds after depressing fully.

12 V

49

(BR/L)

98

(BR)

Fuel injector (No. 3)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA5286GB-286Courtesy of NISSAN NORTH AMERICA, INC.

50

(B/Y)

98

(BR)

Fuel injector (No. 3)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA9608GB-608Courtesy of NISSAN NORTH AMERICA, INC.

51

(BR/Y)

98

(BR)

Boost pressure control vacuum transducer

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Idle speed

Battery voltage SYMBOL

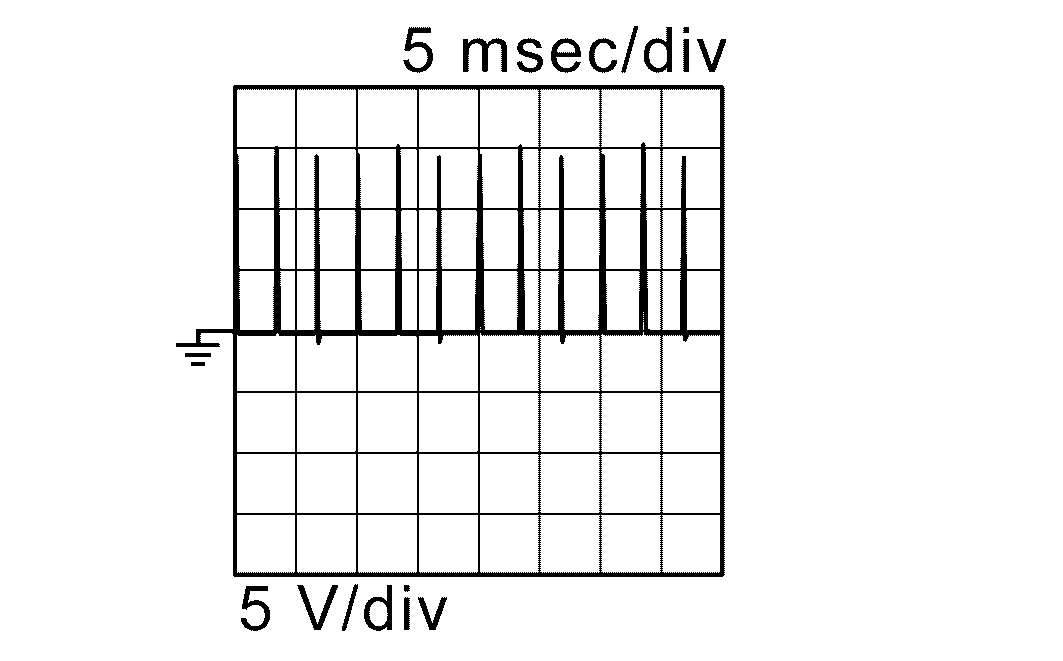

SYMBOLGNSJSBIA9613GB-613Courtesy of NISSAN NORTH AMERICA, INC.

53

(P/Y)

98

(BR)

Exhaust camshaft actuator

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Idle speed

Battery voltage SYMBOL

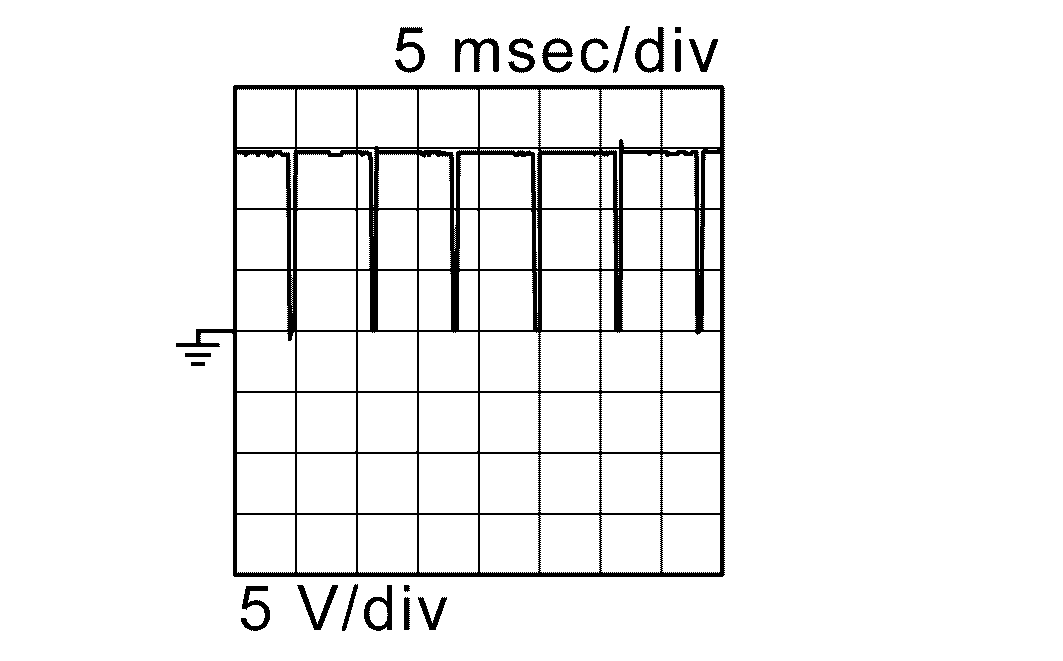

SYMBOLGNSJSBIA9614GB-614Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

Battery voltage SYMBOL

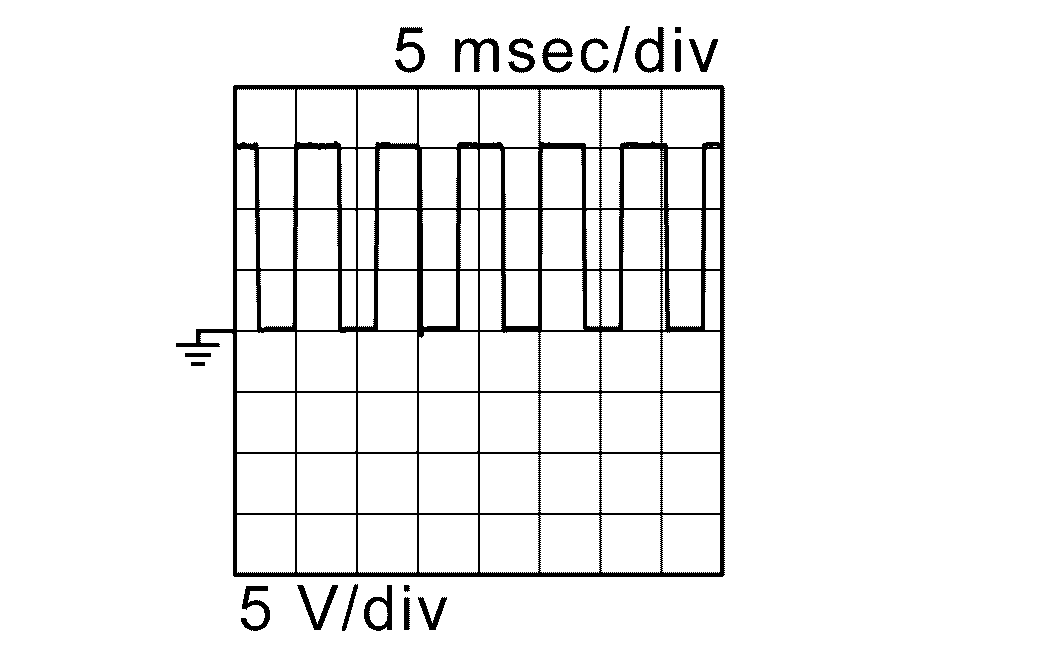

SYMBOLGNSJSBIA9615GB-615Courtesy of NISSAN NORTH AMERICA, INC.

54

(BR/B)

98

(BR)

Coolant pump switchover valve

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Coolant temperature: 85 deg.C
  • Idle speed
  • A/C switch off

0 V

55

(G)

98

(BR)

Ignition coil (No. 3)

Output

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle
GNSJSBIA9609GB-609Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm
GNSJSBIA9610GB-610Courtesy of NISSAN NORTH AMERICA, INC.

58

(R/B)

98

(BR)

Intake camshaft position sensor

Input

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle

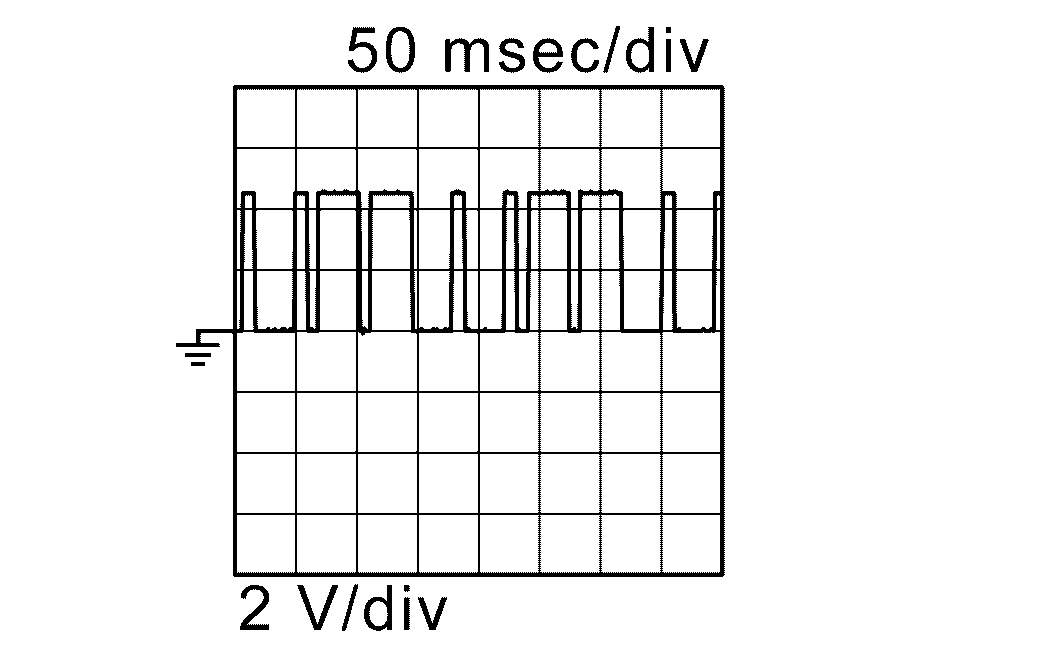

GNSJSBIA9616GB-616Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

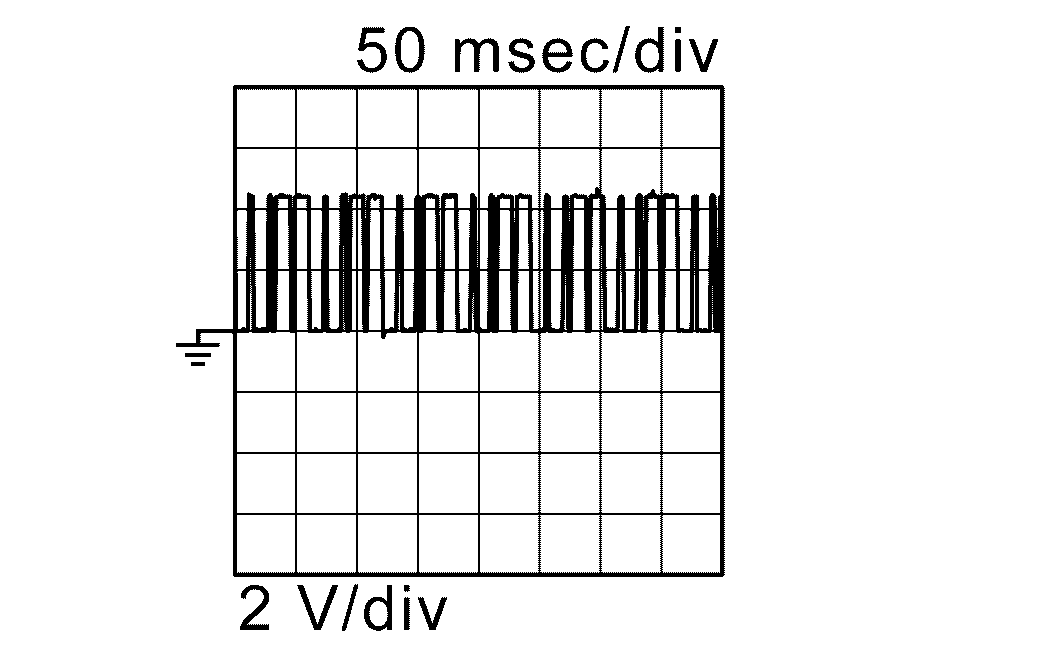

GNSJSBIA9617GB-617Courtesy of NISSAN NORTH AMERICA, INC.

59

(V/GY)

98

(BR)

Knock sensor 2

Input

[Ignition switch: ON]

1.63 V

[Engine is running]

  • Idle speed

1.63 V SYMBOL

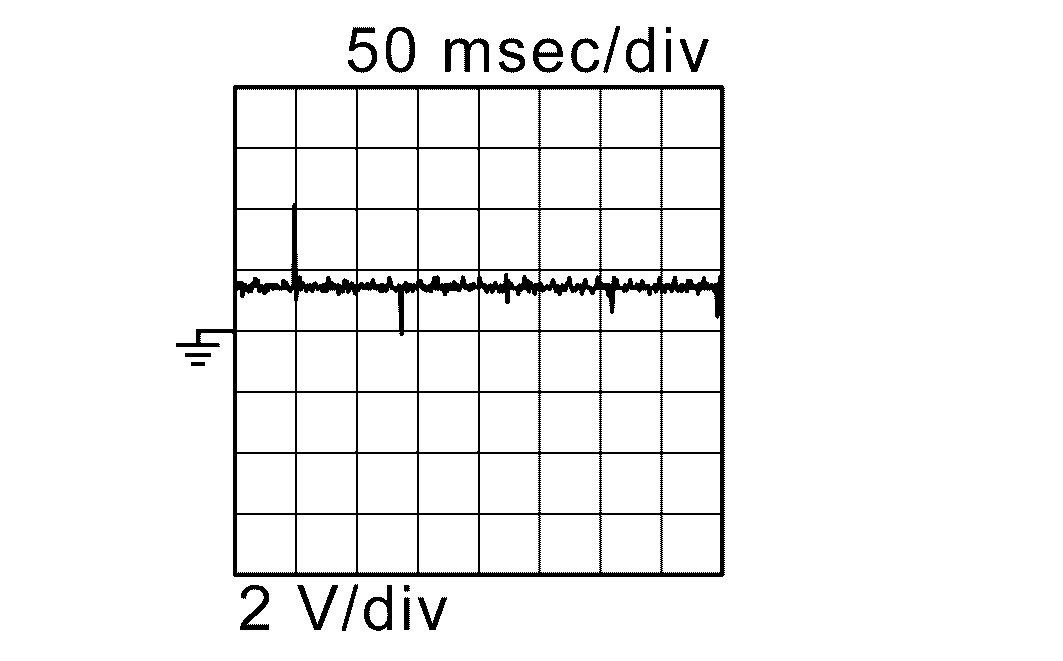

SYMBOLGNSJSBIA9618GB-618Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

1.45 V SYMBOL

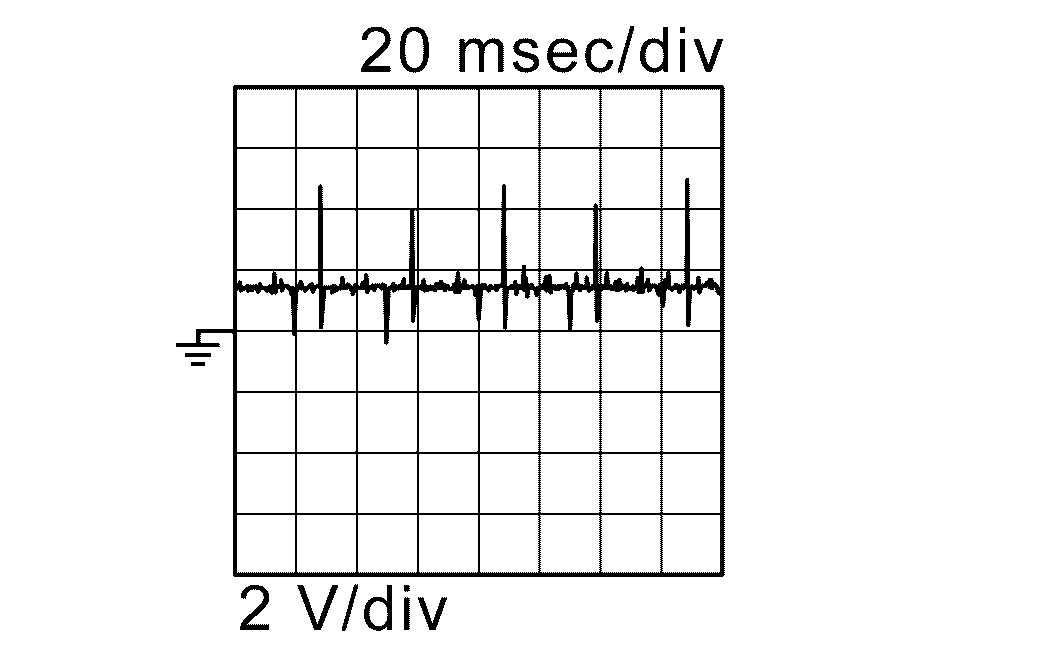

SYMBOLGNSJSBIA9619GB-619Courtesy of NISSAN NORTH AMERICA, INC.

60

(G/B)

98

(BR)

Knock sensor 1

Input

[Ignition switch: ON]

1.63 V

[Engine is running]

  • Idle speed

1.63 V SYMBOL

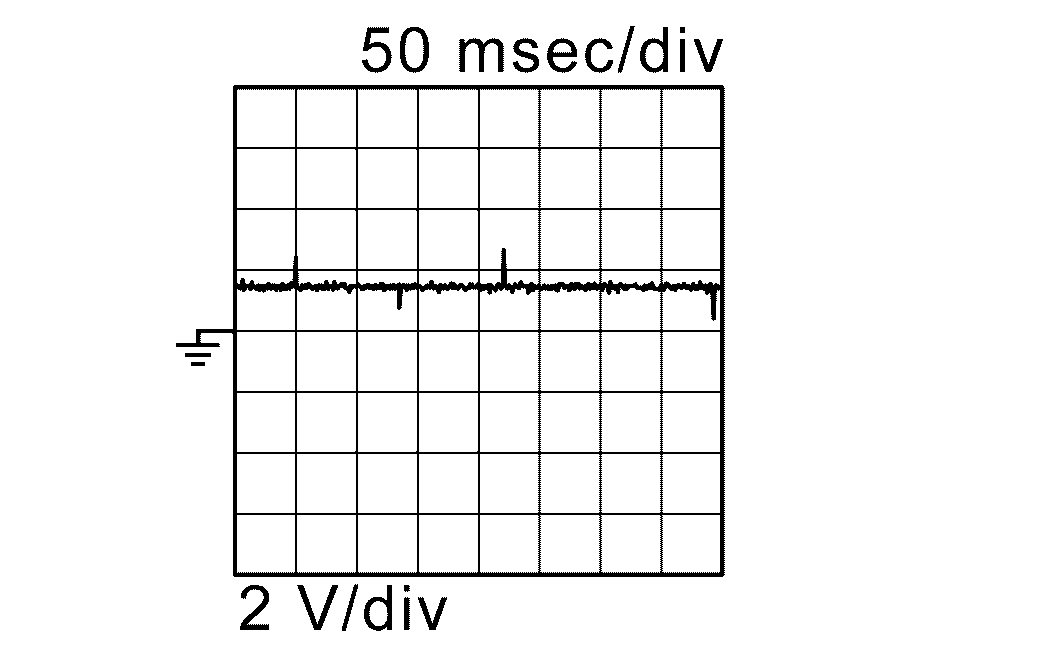

SYMBOLGNSJSBIA9620GB-620Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

1.45 V SYMBOL

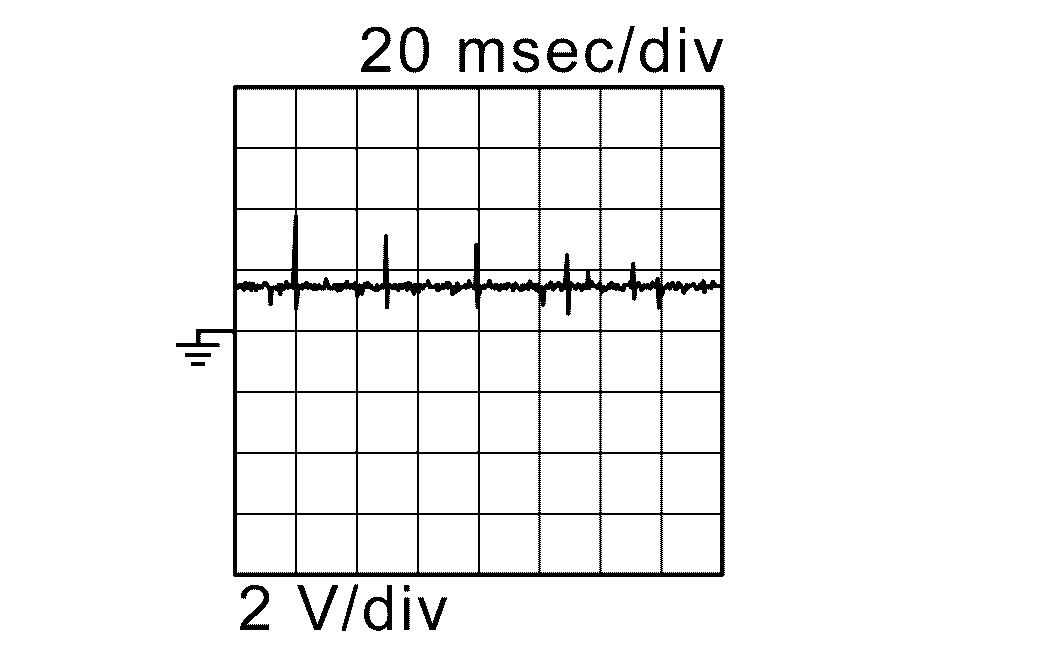

SYMBOLGNSJSBIA9622GB-622Courtesy of NISSAN NORTH AMERICA, INC.

61

(BR/R)

98

(BR)

Charge air temperature sensor upstream of throttle valve

Input

[Ignition switch: ON]

  • Charge air temperature upstream of throttle valve: 21 deg.C (69.8 deg.F)* 1

3.87 V

[Ignition switch: ON]

  • Charge air temperature upstream of throttle valve: 27 deg.C (80.6 deg.F)* 1

3.6 V

62

(Y/GY)

98

(BR)

Throttle position sensor 1

Input

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully released

0.58 V

[Ignition switch: ON]

  • Engine stopped
  • Accelerator pedal: Fully depressed

4.24 V

63

(L/R)

98

(BR)

Air fuel ratio (A/F) sensor

Input

[Ignition switch: ON]

2.7 V

64

(B/Y)

98

(BR)

Air fuel ratio (A/F) sensor

Input

[Ignition switch: ON]

2.5 V

65

(Y/R)

98

(BR)

Fuel temperature signal

Input

Fuel temperature: Approx. 24 deg.C (75.2 deg.F)* 1

3.8 V

Fuel temperature: Approx. 31 deg.C (87.8 deg.F)* 1

3.5 V

67

(W/L)

98

(BR)

Fuel pressure signal

Input

[Ignition switch: ON]

2.5 V

[Engine is running]

  • Idle speed

3.33 V

72

(R/GY)

98

(BR)

Intake camshaft valve lift switchover position sensor 2

Output

[Ignition switch: ON]

12 V

[Engine is running]

  • Idle speed

12 V SYMBOL

SYMBOLGNSJSBIA9625GB-625Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Perform "Check intake camshaft valve lift switching actuator" in "ACTIVE TEST" mode.* 1

    Touch "START"

  • Change cam (small valve lift <=> normal valve lift)
  • Move small valve lift

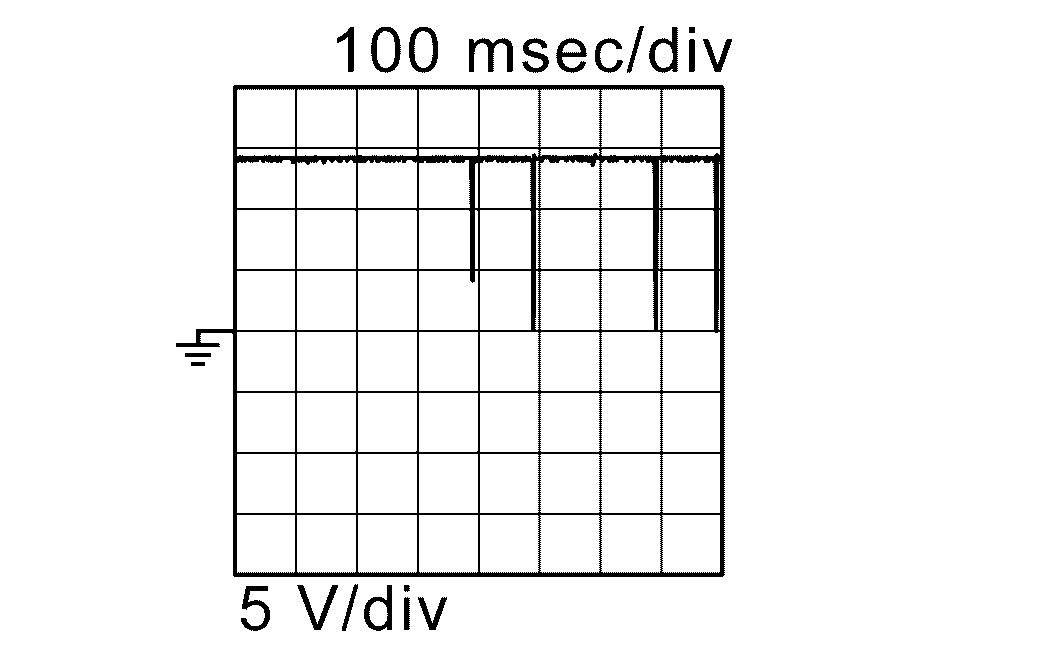

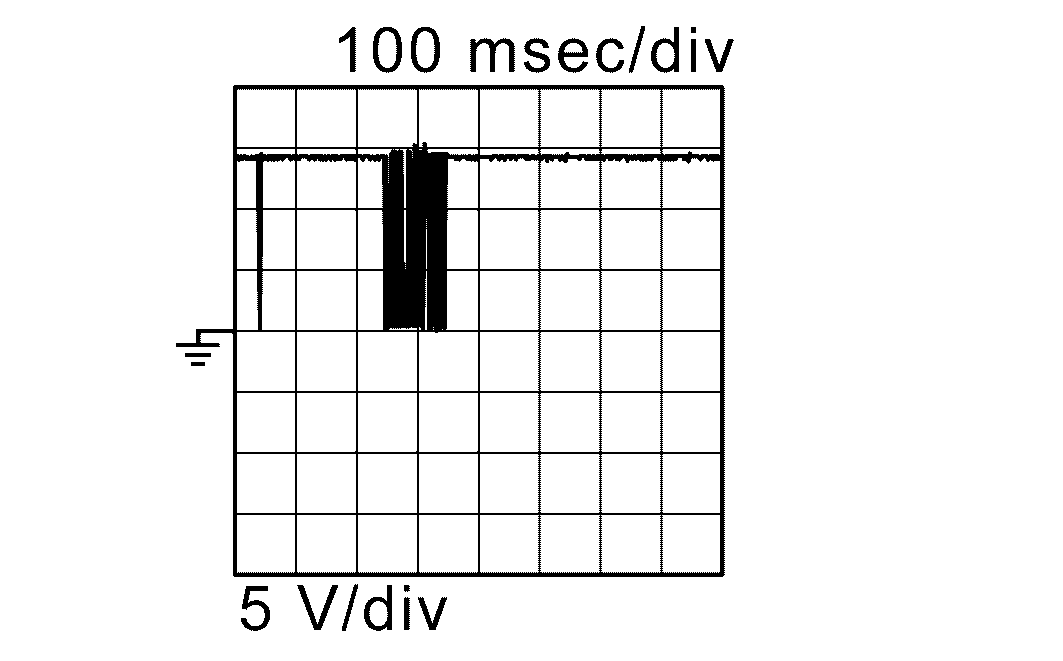

GNSJSBIA9627GB-627GNSJSBIA9628GB-628Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.
  • Move return normal valve lift
GNSJSBIA9627GB-627GNSJSBIA9628GB-628Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.

73

(B/R)

98

(BR)

Fuel injector (No. 2)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA5286GB-286Courtesy of NISSAN NORTH AMERICA, INC.

74

(B/W)

98

(BR)

Fuel injector (No. 2)

Output

[Ignition switch: ON]

0.5 V

[Engine is running]

  • Idle speed
GNSJSBIA9608GB-608Courtesy of NISSAN NORTH AMERICA, INC.

75

(V)

98

(BR)

Quantity control valve (LOW)

Output

[Ignition switch: ON]

0.72 V

[Engine is running]

  • Idle speed
GNSJSBIA9631GB-631Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

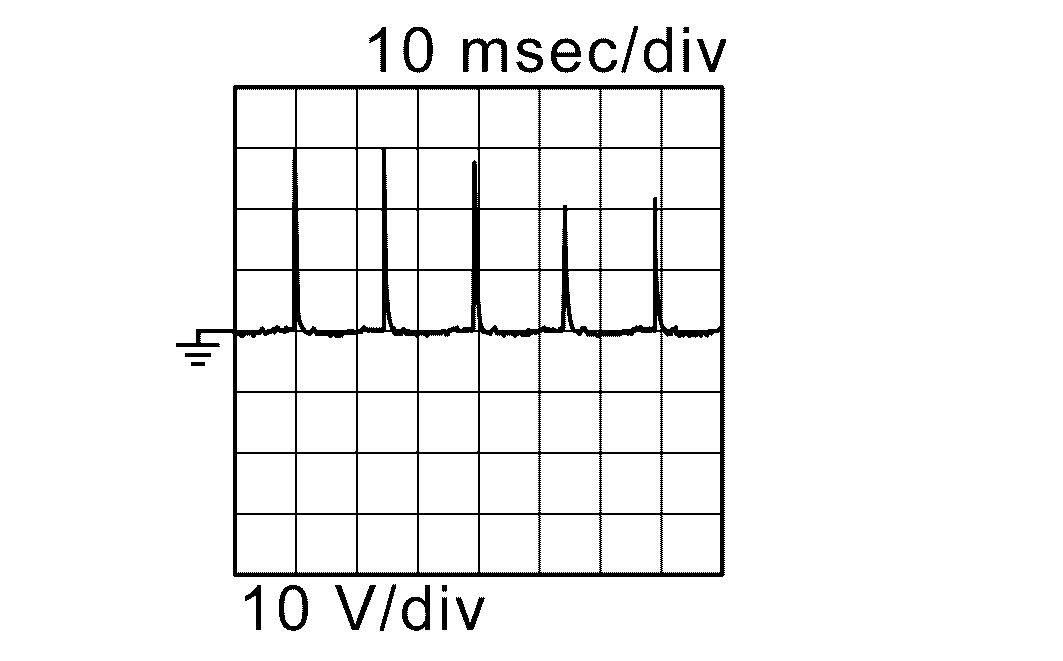

GNSJSBIA9632GB-632Courtesy of NISSAN NORTH AMERICA, INC.

76

(G/B)

98

(BR)

Quantity control valve (HIGH)

Output

[Ignition switch: ON]

0.72 V

[Engine is running]

  • Idle speed

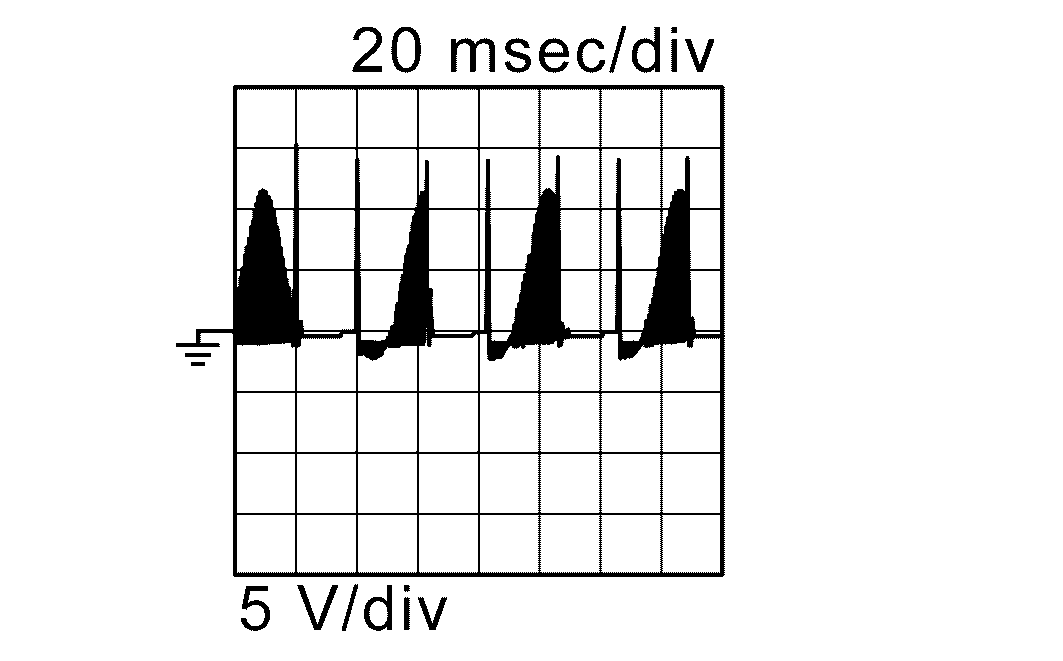

GNSJSBIA9633GB-633Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

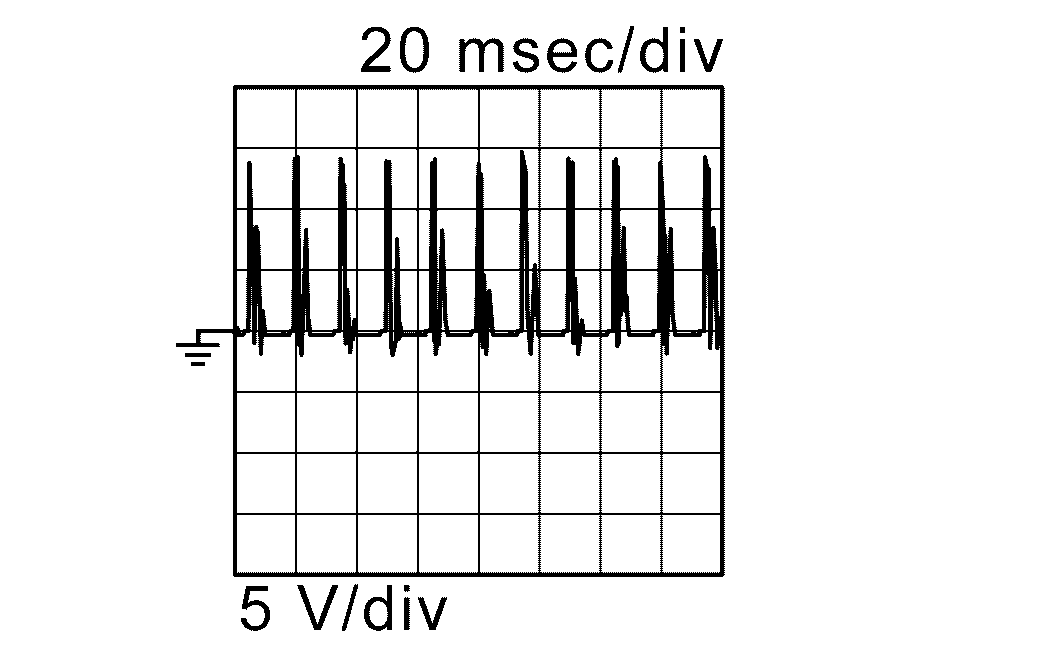

GNSJSBIA9634GB-634Courtesy of NISSAN NORTH AMERICA, INC.

77

(R/B)

98

(BR)

Air fuel ratio (A/F) sensor heater

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Warm-up condition
  • Idle speed

Battery voltage SYMBOL

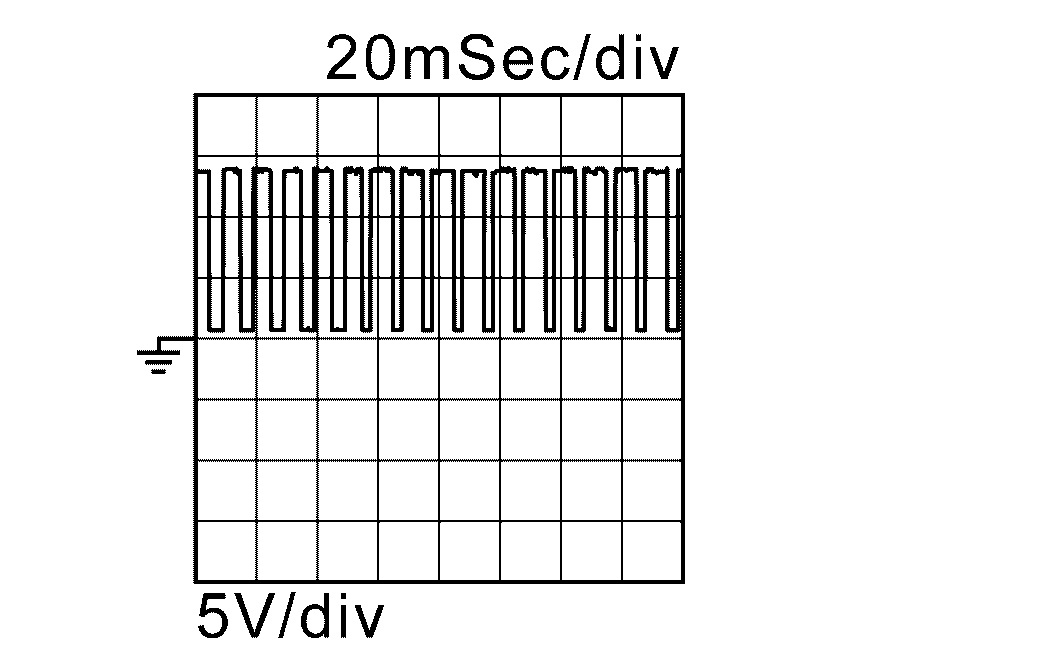

SYMBOLGNSJSBIA5302GB-302Courtesy of NISSAN NORTH AMERICA, INC.

78

(V/G)

98

(BR)

Full-load operation vent line heater element

Output

[Ignition switch: ON]

Battery voltage

79

(P)

98

(BR)

Ignition coil (No. 1)

Output

[Engine is running]

  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle
GNSJSBIA9609GB-609Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm
GNSJSBIA9610GB-610Courtesy of NISSAN NORTH AMERICA, INC.

81

(Y/W)

98

(BR)

Crankshaft position sensor

Input

[Ignition switch: ON]

5 V

[Engine is running]

  • Idle speed

4.7 V SYMBOL

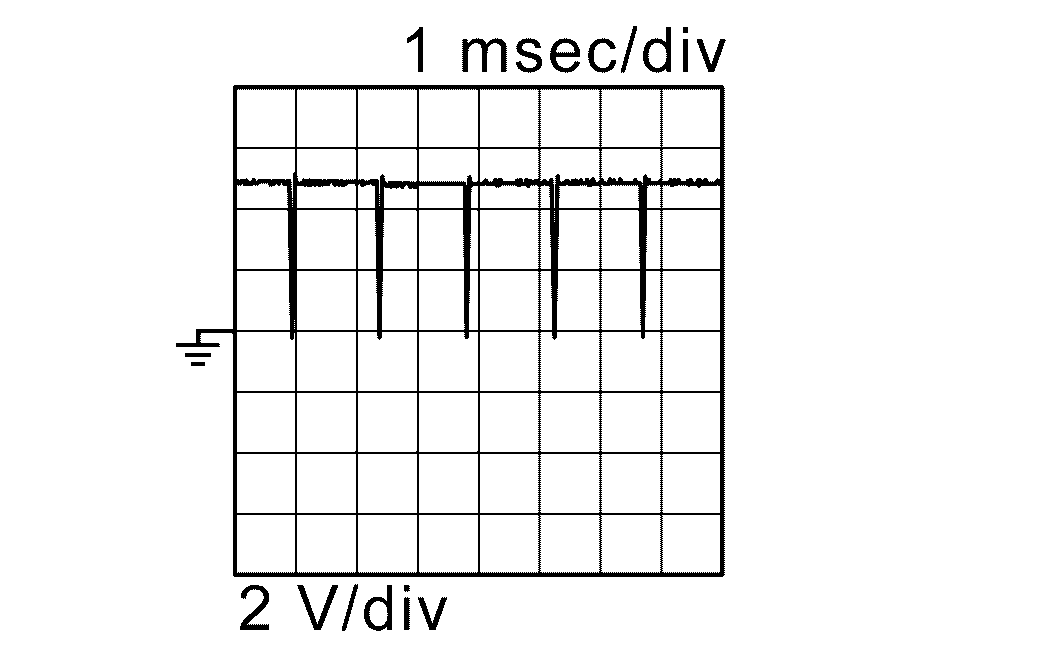

SYMBOLGNSJSBIA9637GB-637Courtesy of NISSAN NORTH AMERICA, INC.

82

(O)

98

(BR)

Engine oil level switch

Input

Engine oil level: Filled enough

0 V

83

(P/G)

98

(BR)

Knock sensor 2

Input

[Ignition switch: ON]

1.63 V

[Engine is running]

  • Idle speed

1.63 V SYMBOL

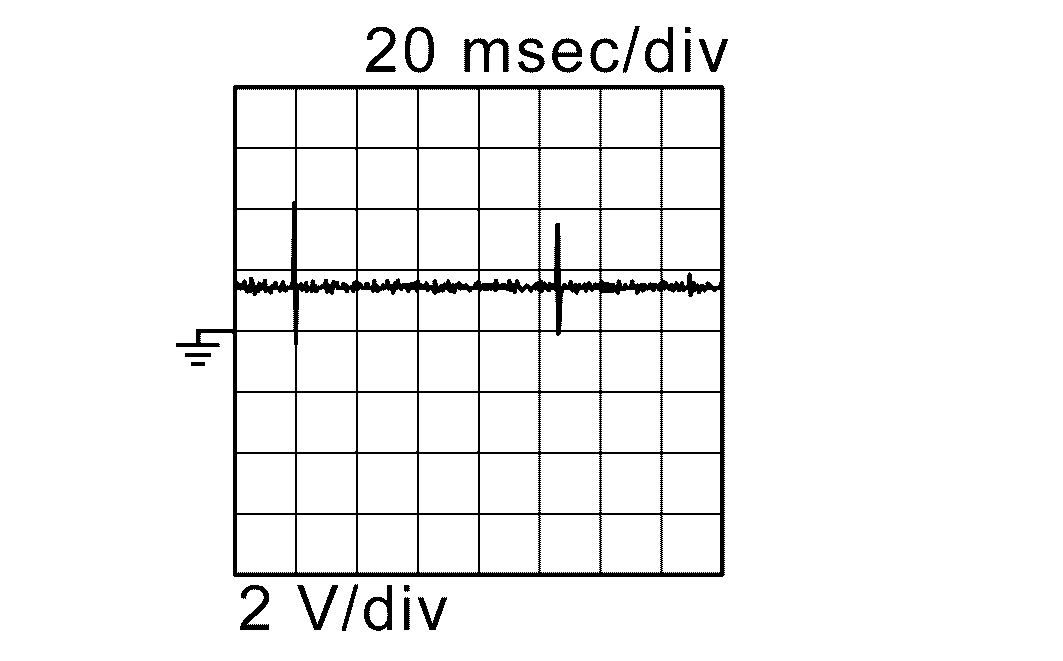

SYMBOLGNSJSBIA9638GB-638Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

1.45 V SYMBOL

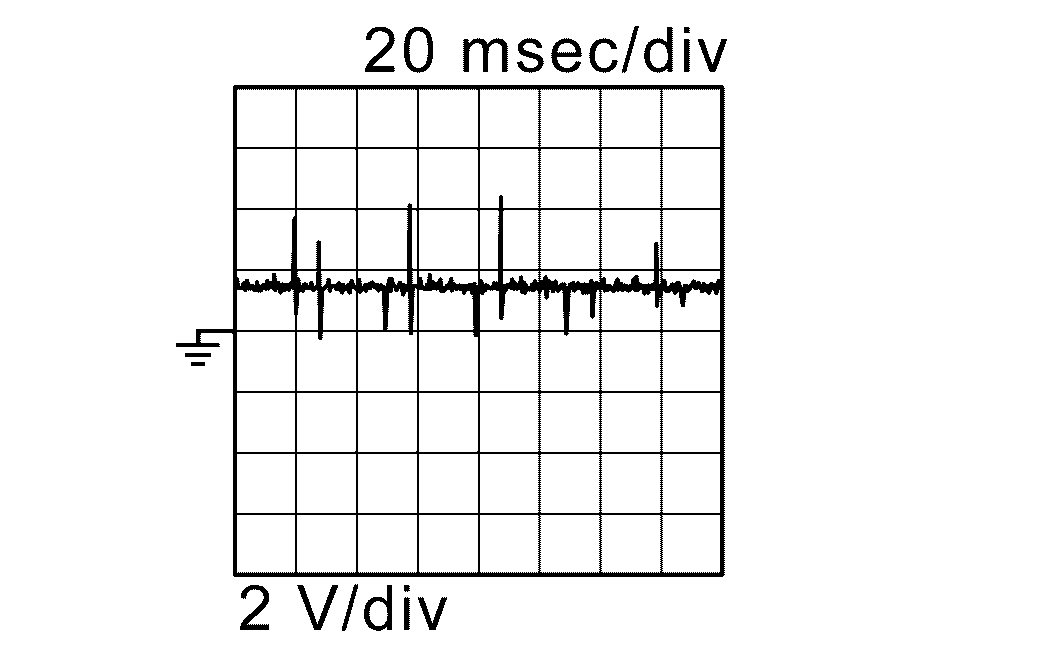

SYMBOLGNSJSBIA9639GB-639Courtesy of NISSAN NORTH AMERICA, INC.

84

(W/Y)

98

(BR)

Knock sensor 1

Input

[Ignition switch: ON]

1.63 V

[Engine is running]

  • Idle speed

1.63 V SYMBOL

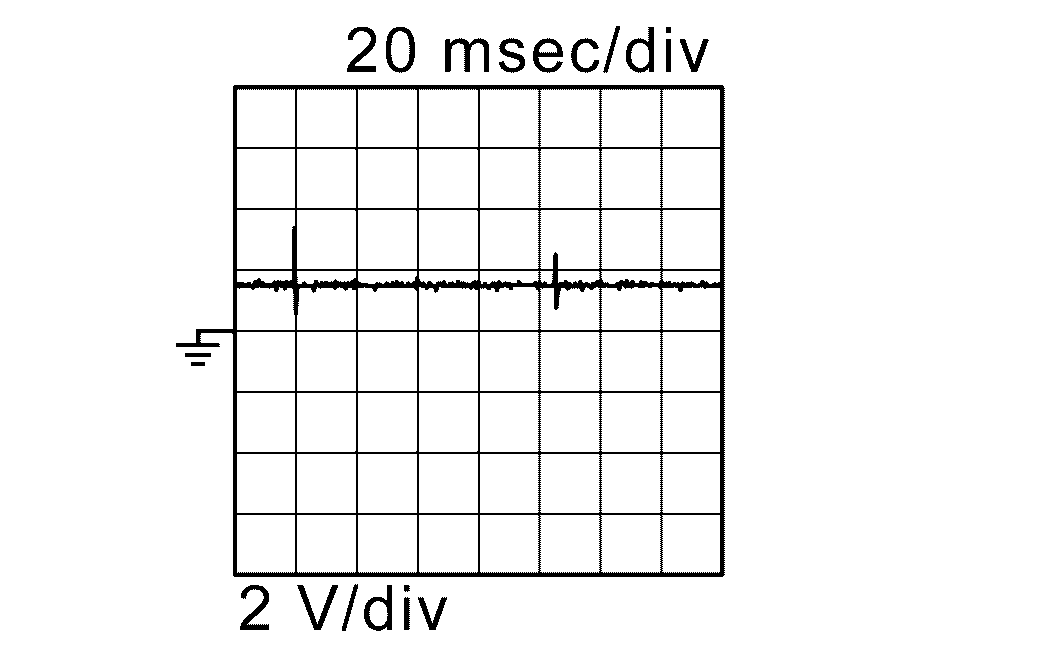

SYMBOLGNSJSBIA9640GB-640Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Engine speed: 2, 000 rpm

1.45 V SYMBOL

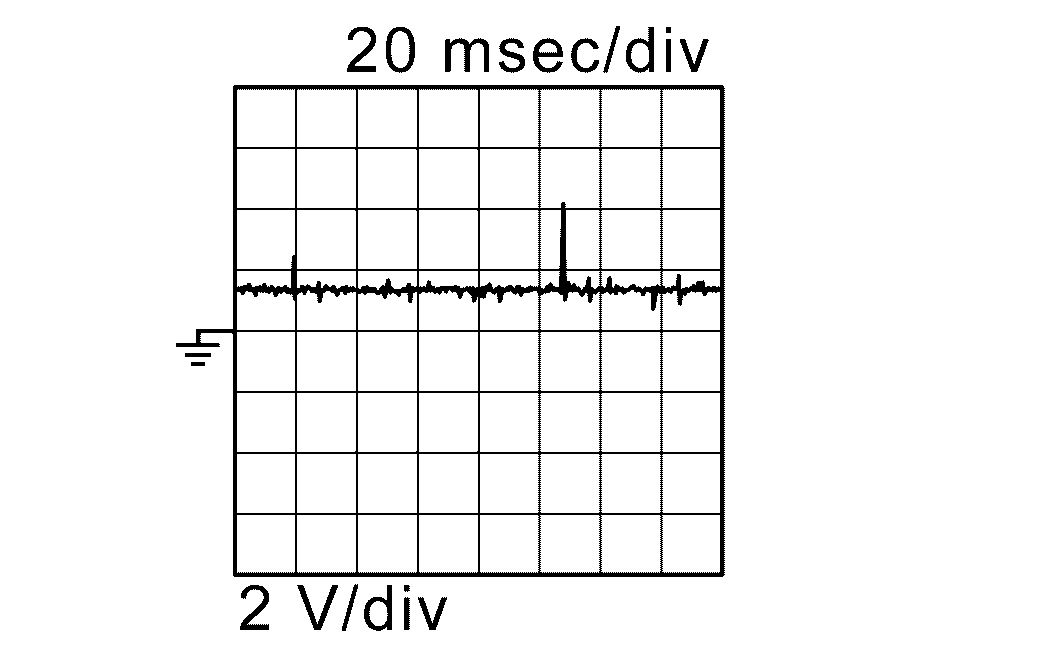

SYMBOLGNSJSBIA9641GB-641Courtesy of NISSAN NORTH AMERICA, INC.

86

(GY/Y)

98

(BR)

Engine coolant temperature sensor

Input

Engine coolant temperature: 31 deg.C (87.8 deg.F) *

2.8 V

Engine coolant temperature: 80 deg.C (176 deg.F) *

0.5 V

87

(V)

98

(BR)

Air fuel ratio (A/F) sensor

Input

[Ignition switch: ON]

2.9 V

88

(GY/B)

98

(BR)

Air fuel ratio (A/F) sensor

Input

[Ignition switch: ON]

2.8 V

[Engine is running]

  • Warm-up condition
  • Idle speed

2.1 - 2.8 V

Output voltage varies with air fuel ratio.

90

(O/G)

98

(BR)

Pressure sensor downstream of air filter

Input

[Ignition switch: ON]

4.34 V

[Engine is running]

  • Warm-up condition
  • Idle speed

4.34 V

91

(GY)

98

(BR)

Pressure sensor downstream of throttle valve

Input

[Ignition switch: ON]

1.96 V

[Engine is running]

  • Warm-up condition
  • Idle speed

0.84 V

[Engine is running]

  • Warm-up condition
  • Engine speed: 2, 000 rpm

0.55 V

95

(R)

98

(BR)

Heated oxygen sensor heater

Output

[Ignition switch: ON]

Battery voltage

[Engine is running]

  • Warm-up condition
  • Idle speed

Battery voltage SYMBOL

SYMBOLGNSJSBIA9642GB-642Courtesy of NISSAN NORTH AMERICA, INC.

96

(L/Y)

98

(BR)

Intake camshaft valve lift switchover position sensor 1

Output

[Ignition switch: ON]

12 V

[Engine is running]

  • Idle speed

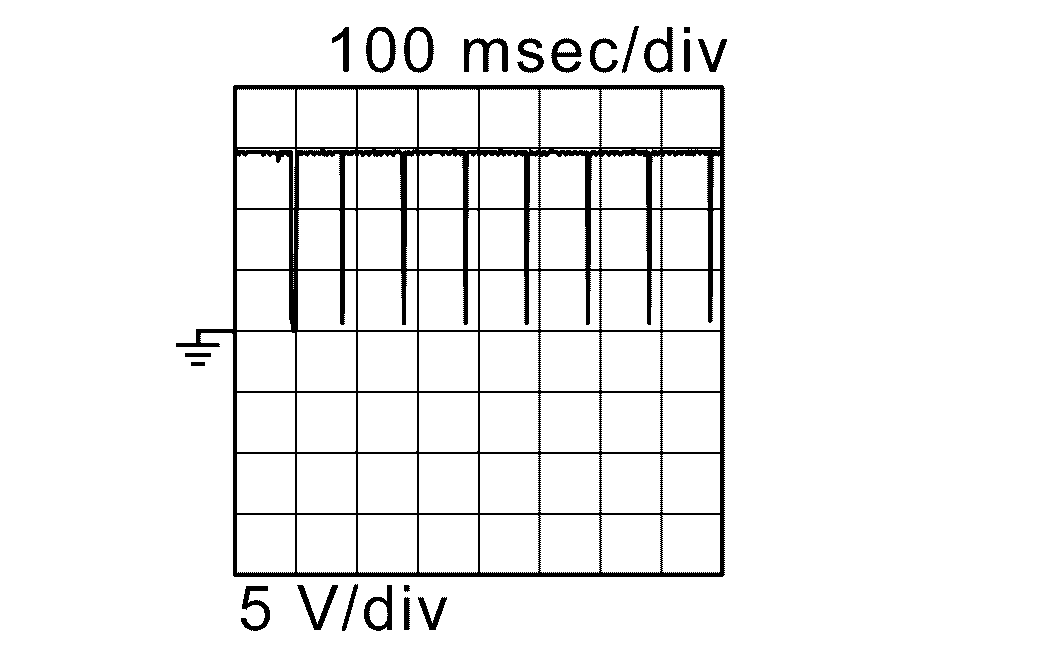

12 V SYMBOL

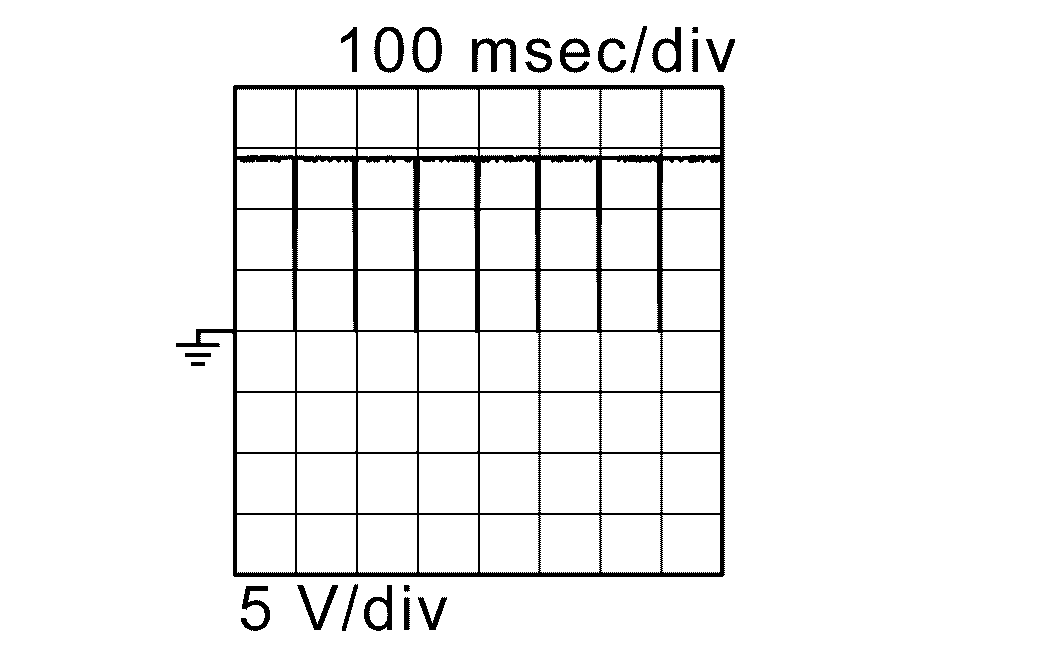

SYMBOLGNSJSBIA9625GB-625Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

  • Perform "Check intake camshaft valve lift switching actuator" in "ACTIVE TEST" mode. *1

    Touch "START"

  • Change cam (small valve lift <=> normal valve lift)
  • Move small valve lift

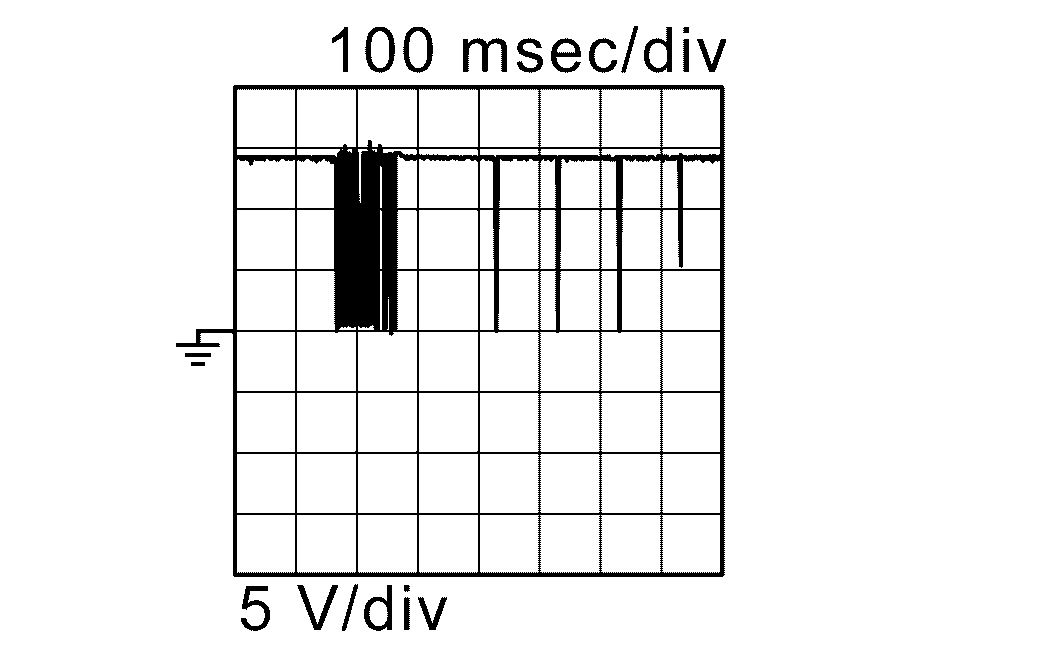

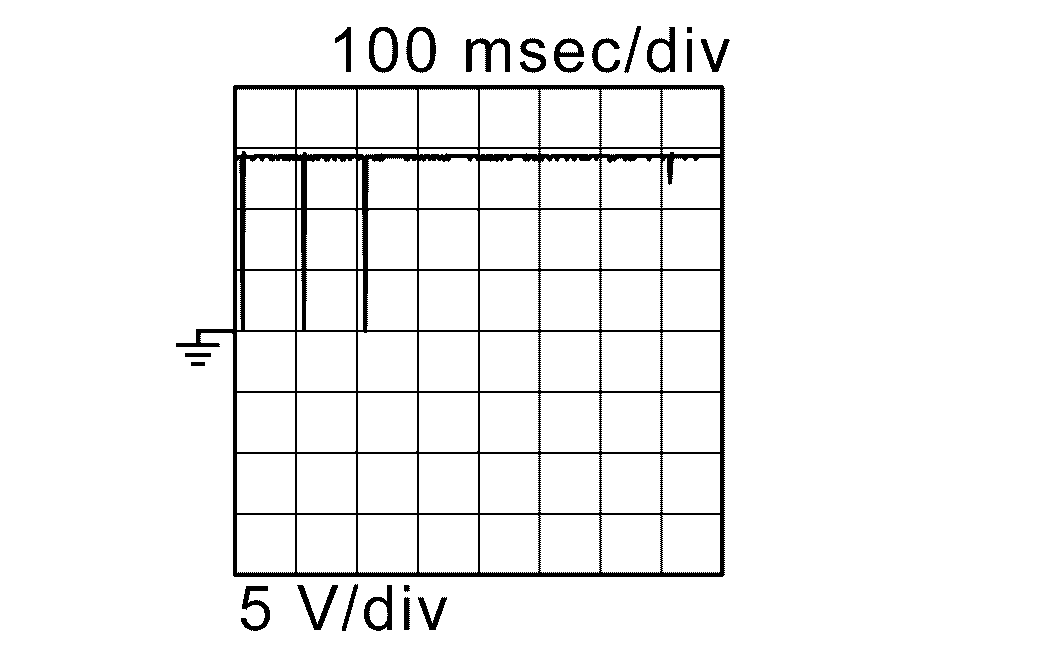

GNSJSBIA9629GB-629GNSJSBIA9630GB-630Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.
  • Move return normal valve lift
GNSJSBIA9629GB-629GNSJSBIA9630GB-630Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.

97

(R)

98

(BR)

Power supply (ECM)

Input

[Ignition switch: ON]

Battery voltage

98

(BR)

--

ECM ground

--

--

--

99

(V)

98

(BR)

Power supply (ECM)

Input

[Ignition switch: ON]

Battery voltage

100

(BR)

--

ECM ground

--

--

--

101

(R)

98

(BR)

Power supply (ECM)

Input

[Ignition switch: ON]

Battery voltage

102

(B)

--

ECM ground

--

--

--

103

(L)

98

(BR)

Cooling fan control signal

Output

[Ignition switch: ON]

  • Cooling fan: Not operates

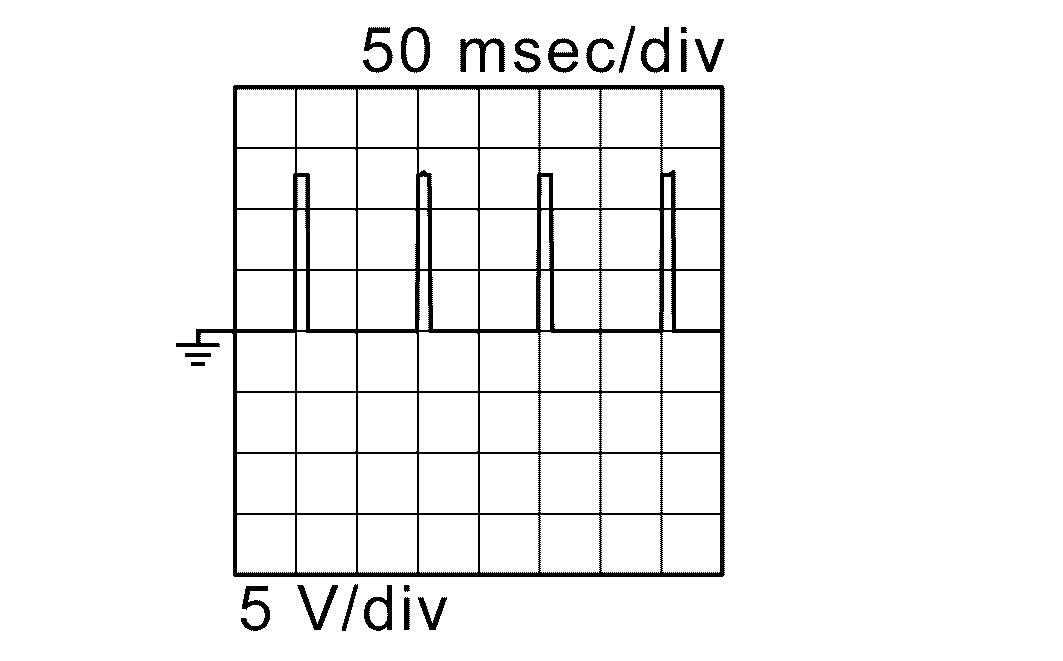

GNSJSBIA9643GB-643Courtesy of NISSAN NORTH AMERICA, INC.

[Ignition switch: ON]

  • Perform "CHECK COMBUSTION ENGINE AND AC WITH INTEGRATED CONTROL FAN MOTOR" in "ACTIVE TEST" mode. *1
  • Touch "START"
  • Cooling fan: 60% operates*

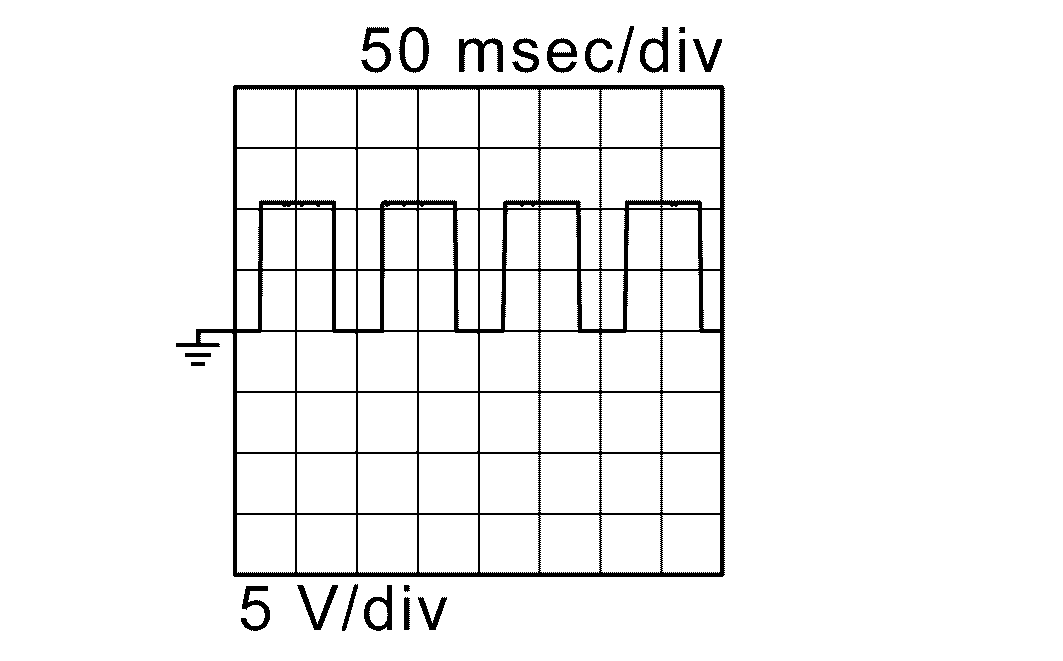

GNSJSBIA9644GB-644Courtesy of NISSAN NORTH AMERICA, INC.

104

(R)

106

(BR)

Sensor power supply (Accelerator pedal position sensor 1)

Output

[Ignition switch: ON]

5 V

105

(G)

119

(GR)

Sensor power supply (Accelerator pedal position sensor 2)

Output

[Ignition switch: ON]

5 V

106

(BR)

--

Sensor ground (Accelerator pedal position sensor 1)

--

--

--

111

(B)

98

(BR)

Ignition signal

Input

[Ignition switch: ON]

12 V

112

(Y)

98

(BR)

Power supply (Battery)

Input

--

Battery voltage

116

(W)

98

(BR)

Starter relay-L

Output

[Ignition switch: ON]

3.45 V

During engine cranking

3.45 V -> 0 V -> 3.45 V

119

(GR)

--

Sensor ground (Accelerator pedal position sensor 2)

--

--

--

120* 2

(O)

--

Sensor ground (Fuel tank pressure sensor)

--

--

--

122

(R)

98

(BR)

Hot start signal

Output

[Ignition switch: ON]

12 V

123

(GR)

98

(BR)

Motor relay control signal

Output

[Ignition switch: ON]

12 V

[Ignition switch: OFF]

  • After ECM self shut-off

12 V

127

(O)

98

(BR)

Fuel pump on signal

Output

[Ignition switch: ON]

  • Fuel pump: Not operates

12 V

[Engine is running]

  • Warm-up condition
  • Idle speed

0 V

132

(G)

106

(BR)

Accelerator pedal position sensor 1

Input

[Ignition switch: ON]

  • Accelerator pedal: Fully depressed

4.56 V

[Ignition switch: ON]

  • Accelerator pedal: Released

0.32 V

136

(Y)

--

Powertrain sensor CAN-H

Input/Output

--

--

137

(W)

--

CAN-H

Input/Output

--

--

138

(GR)

--

Powertrain CAN-H

Input/Output

--

--

141

(B)

98

(BR)

Water pump relay control signal

Output

[Ignition switch: ON]

12 V

145

(W)

119

(GR)

Accelerator pedal position sensor 2

Input

[Ignition switch: ON]

  • Accelerator pedal: Fully depressed

2.27 V

[Ignition switch: ON]

  • Accelerator pedal: Released

0.16 V

146* 2

(G)

120

(O)

Fuel tank pressure sensor

Input

[Ignition switch: ON]

2.486 V

[Engine is running]

  • Engine speed: Idle

2.492 V

147

(L)

98

(BR)

Crash signal

Input

[Ignition switch: ON]

0 V

148

(W)

98

(BR)

Starter relay-H

Output

[Ignition switch: ON]

3.45 V

During engine cranking

3.45 V -> 0 V -> 3.45 V

149

(B)

--

Powertrain sensor CAN-L

Input/Output

--

--

150

(G)

--

CAN-L

Input/Output

--

--

151

(L)

--

Powertrain CAN-L

Input/Output

--

--

152* 2

(V)

98

(BR)

EVAP canister vent control valve

Output

[Ignition switch: ON]

BATTERY VOLTAGE

(11 - 14 V)

153

(BR)

98

(BR)

EVAP purge control valve

Output

[Ignition switch: OFF]

Battery voltage

[Engine is running]

  • Idle speed

BATTERY VOLTAGE SYMBOL

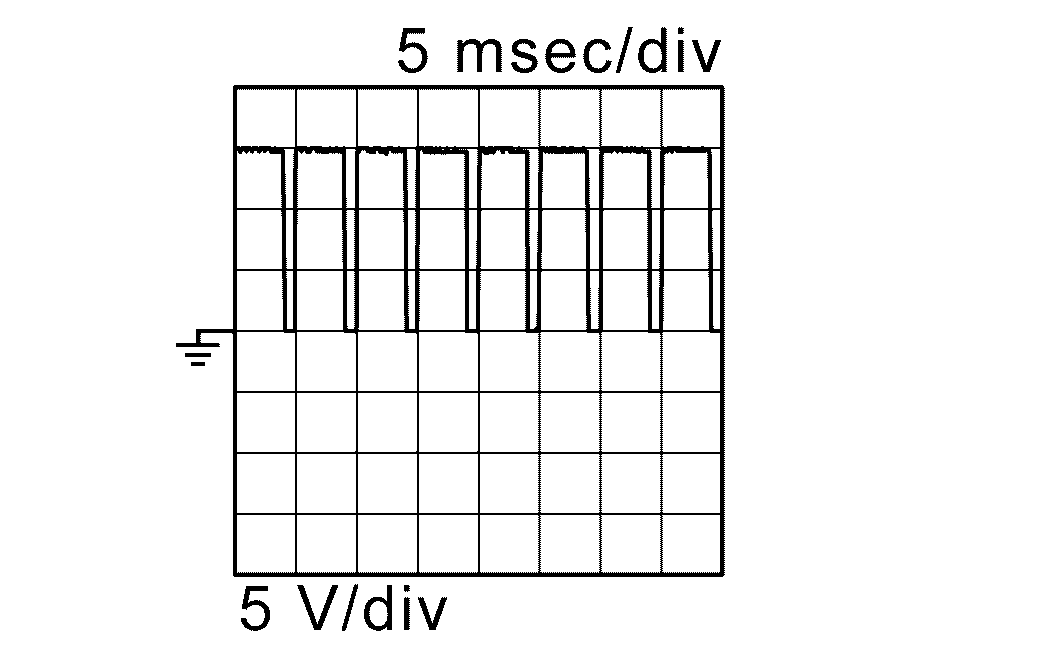

SYMBOLGNSJSBIA9645GB-645Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL : Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*1: It can be confirmed using CONSULT.

*2: Except for Mexico

scientia non olet · About LEMON Manuals
