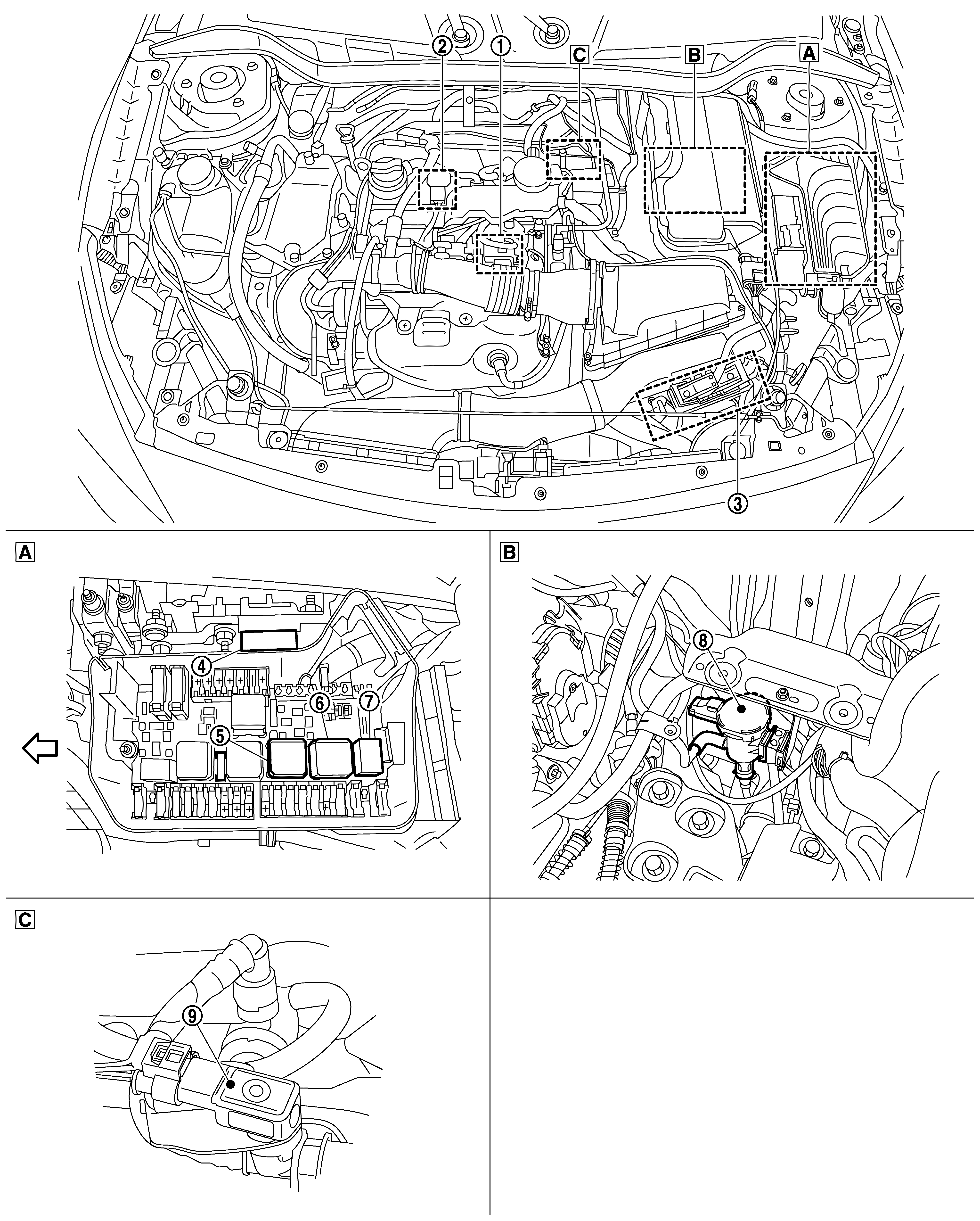

Engine Room Compartment
|
|
Fuse and fusible link block 1 |
|
Battery under side |
|
Engine room center |
|
|
: Vehicle front |
|
No. |
Component |
Function |
|
|
Pressure sensor downstream of air filter |
|
|
|
Intake camshaft valve lift switchover |
|
|
|
ECM |
|
|
|
Decoupling relay |
The decoupling relay is controlled by BCM and changes power supply circuit of on-board electrical system while restart the engine. (stop/start system) For the details of the control, refer to System Description . |
|
|
Starter relay |
The decoupling relay is controlled by ECM and supplies battery voltage to starter motor. For the details of control, refer to System Description . |
|
|
Motor relay |
The motor relay is controlled by ECM and supplies battery voltage to ECU, actuator, sensor, and etc. |
|
|
Water pump relay |
The water pump relay is controlled by ECM and supplies battery voltage to water pump. For the details of the control. |
|
|
EVAP purge control valve |
|
|
|
EVAP control system pressure sensor |
The EVAP control system pressure sensor detects pressure in the purge line. |
